The BT3554 Battery Tester Series

Two voltage ranges of 6V and 60V and four resistance ranges from 3 mΩ to 3 Ω make the BT3554 Battery Tester Series the perfect tool for maintenance checks of VRLA batteries, regardless of the battery size and capacity. A complete measurement takes less than two seconds. This is time-efficient and differently shaped probe leads enable convenient access of all installations making this battery tester perfect for use in difficult to reach and confined areas. Choose your model with straight or L-shaped test probes, with Bluetooth® or without.

LR5092-20

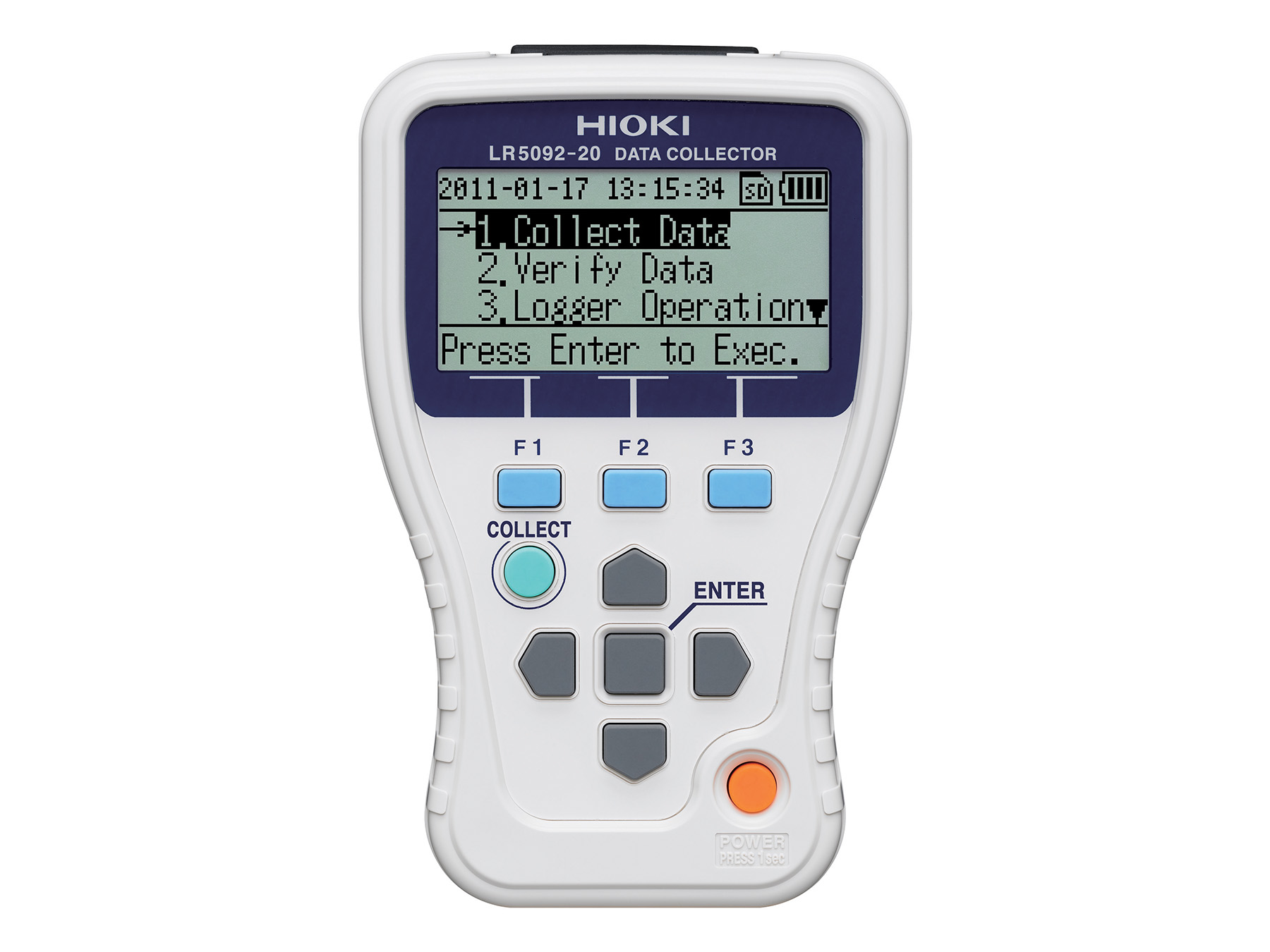

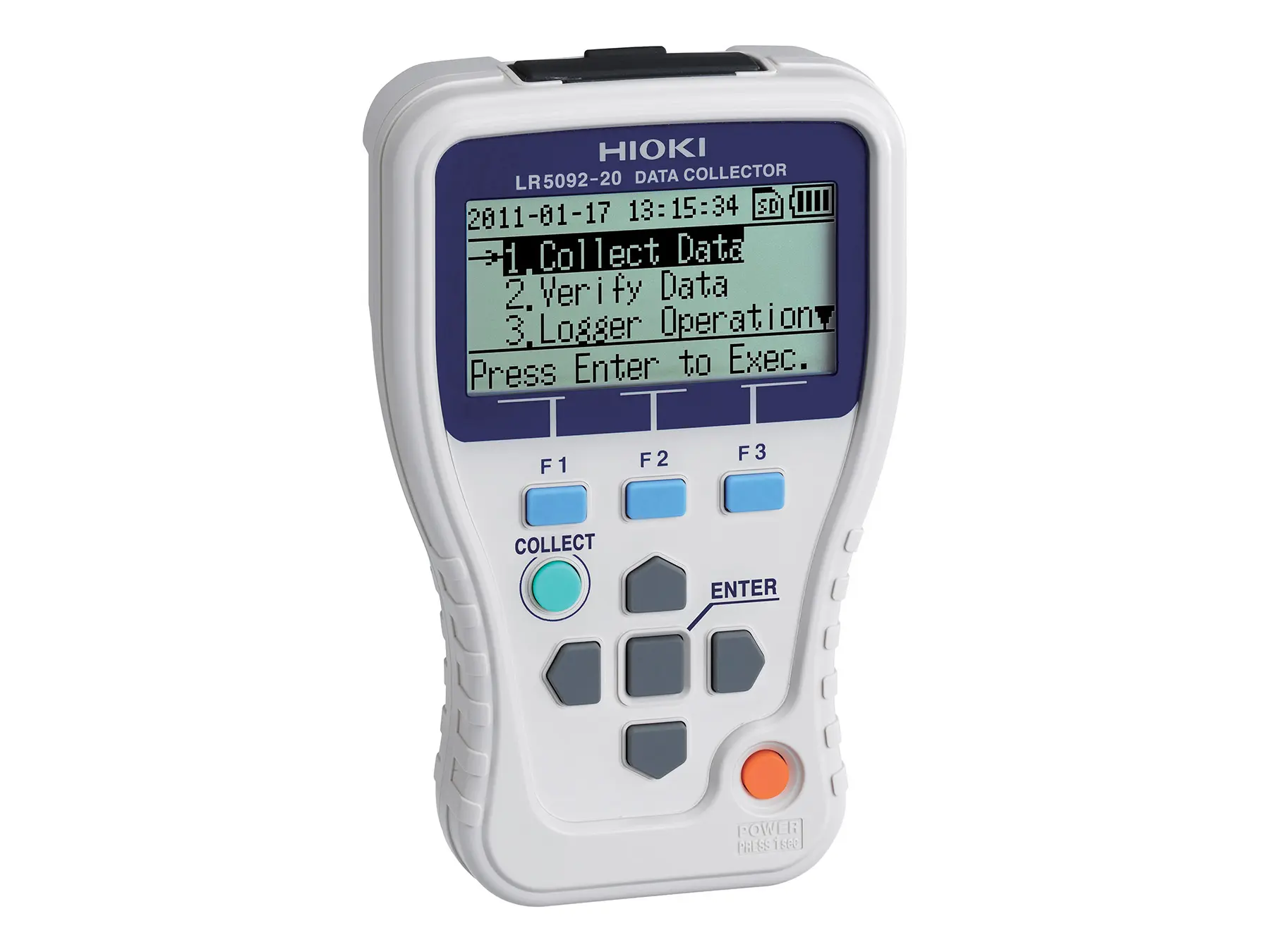

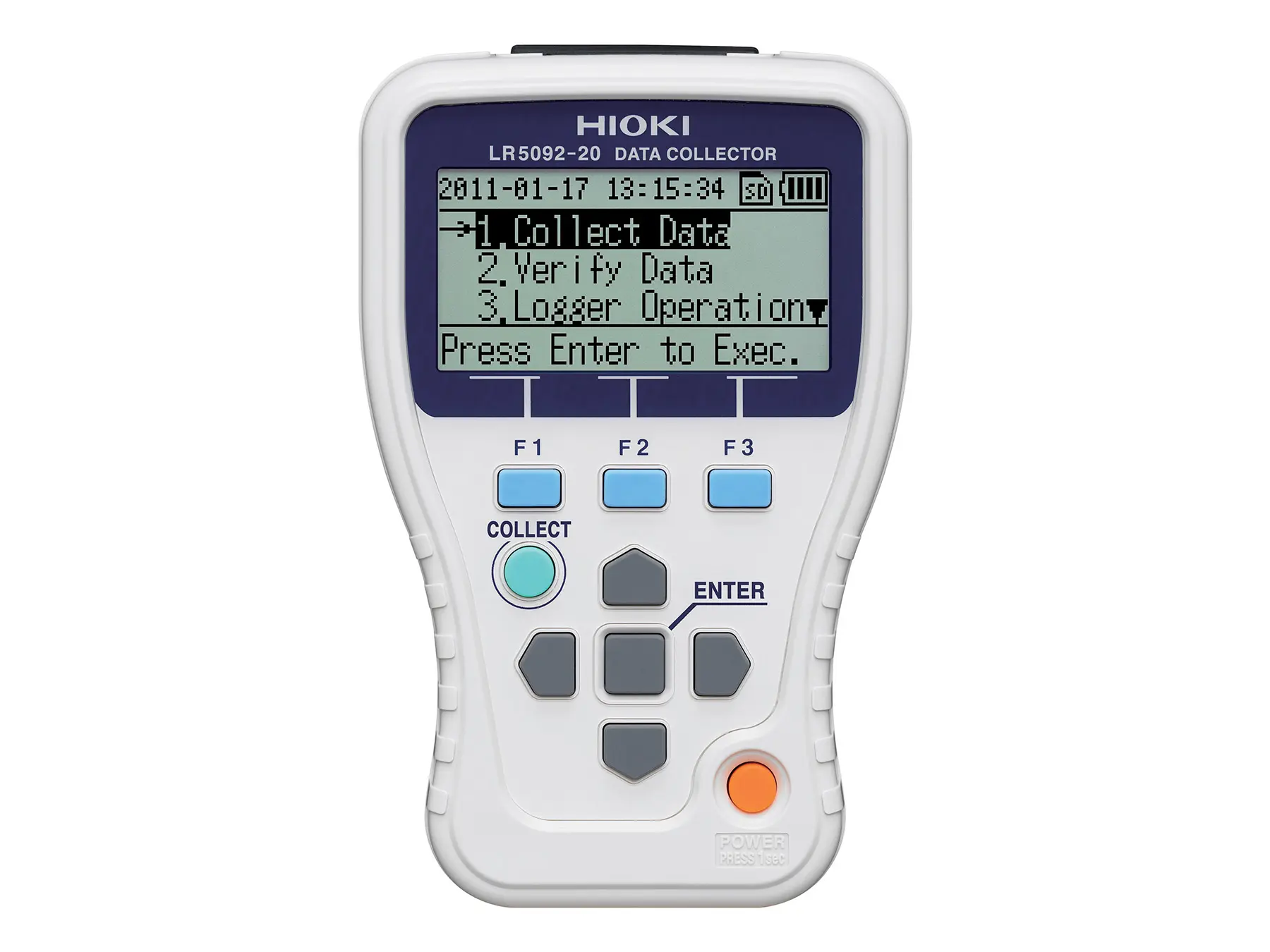

LR5092-20 - DATA COLLECTOR

The LR5092-20 Data Collector is designed for the LR5000 logger series, allowing easy transfer of recorded data from the logger to internal memory or an SD card. It also provides graphical data viewing and data transfer capabilities to a PC, complete with PC software and a USB interface for seamless operation. Technical Details:Compatibility: LR5000 logger series Memory: Internal memory or SD card Interface: USB

€458.00*

View product

LR8101

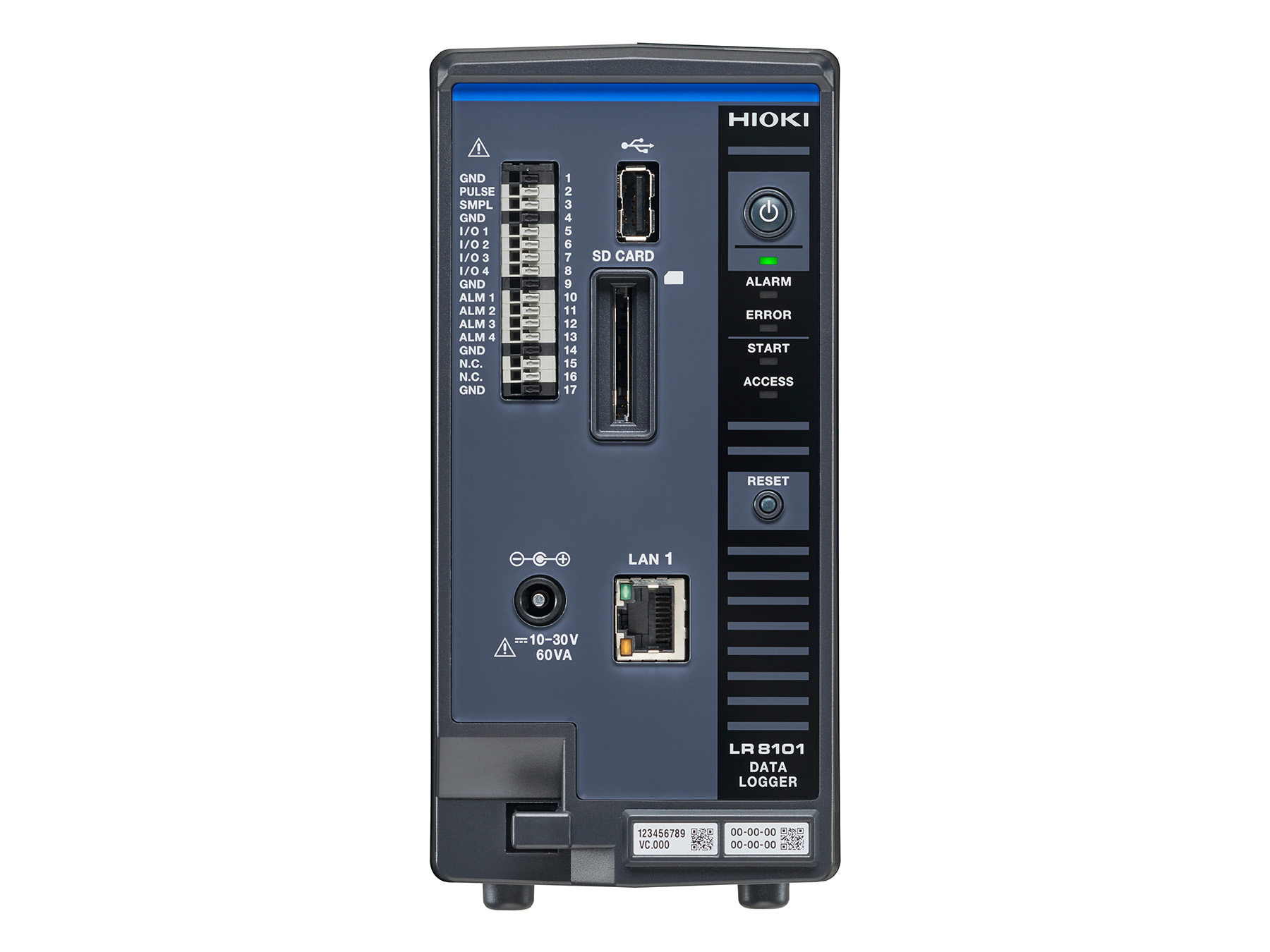

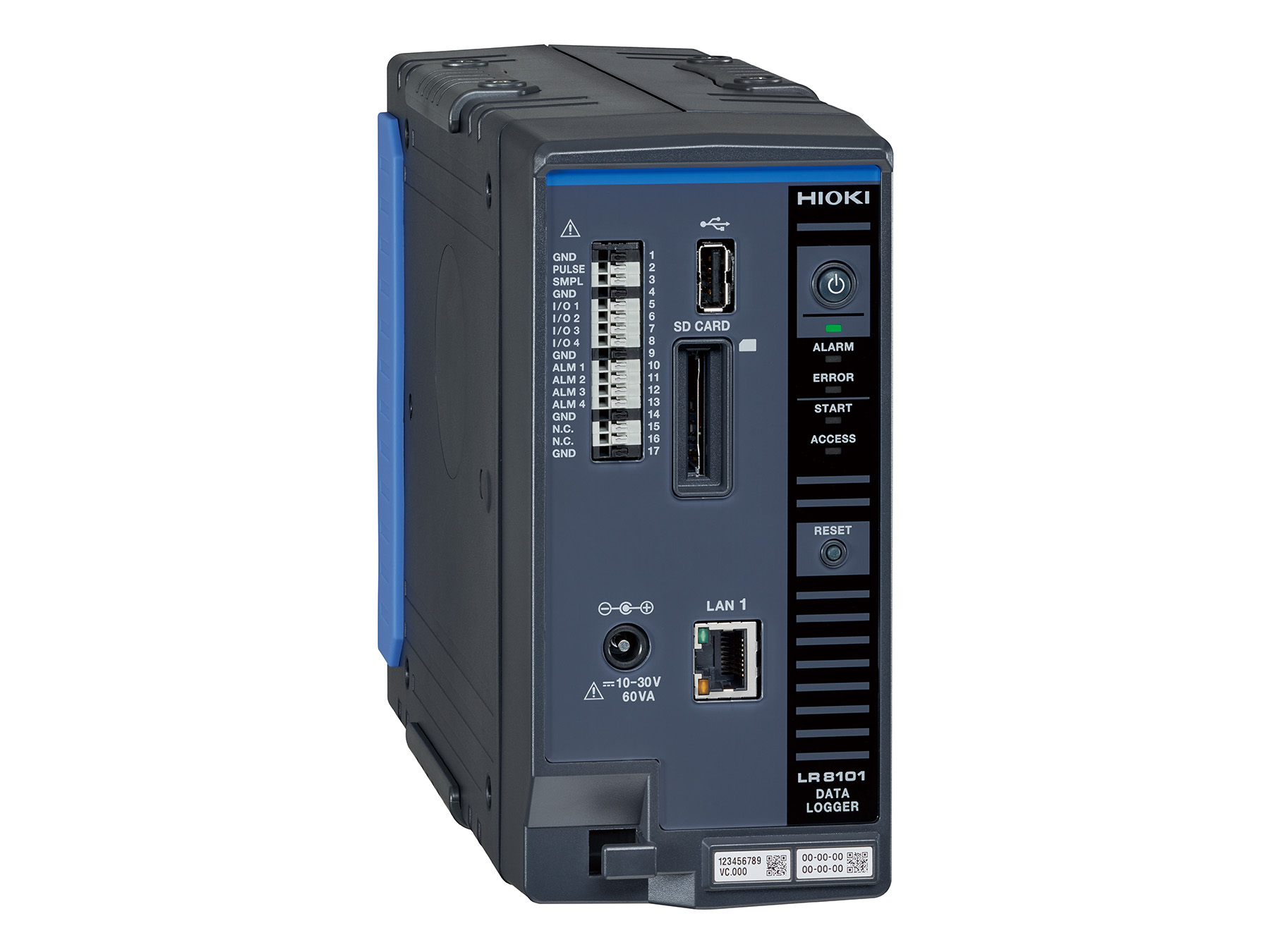

LR8101 - Modular multi-channel Data Logger for system integration

Main unit for system integration applications, modular system, max. 300 voltage/temperature or 12 power channels, for high voltage/high current applications, max. update interval 5 ms, for 19” rack systems

€2,058.00*

View product

LR8102

LR8102 - Modular multi-channel Data Logger for system integration, optical sync, UDP, CAN

The versatile, modular data logger LR8102 can be used in combination with a variety of modules. It is therefore the perfect solution for integration in applications requiring multiple channels and recording intervals as short as 5 ms.

€3,348.00*

View product

LR8431 - Handheld 10-channel Data Logger for voltage, temperature and pulse logging

LR8431-20

LR8431 - Handheld 10-channel Data Logger for voltage, temperature and pulse logging

10-channel handheld data logger for voltage / temperature plus 4 channels for pulse / rotation, isolated inputs, up to 60 VDC, max. sampling speed 10 ms, up to 16 GB USB storage capacity, LCD display, signal input via M3 screw terminals

€1,358.00*

View product

LR8450

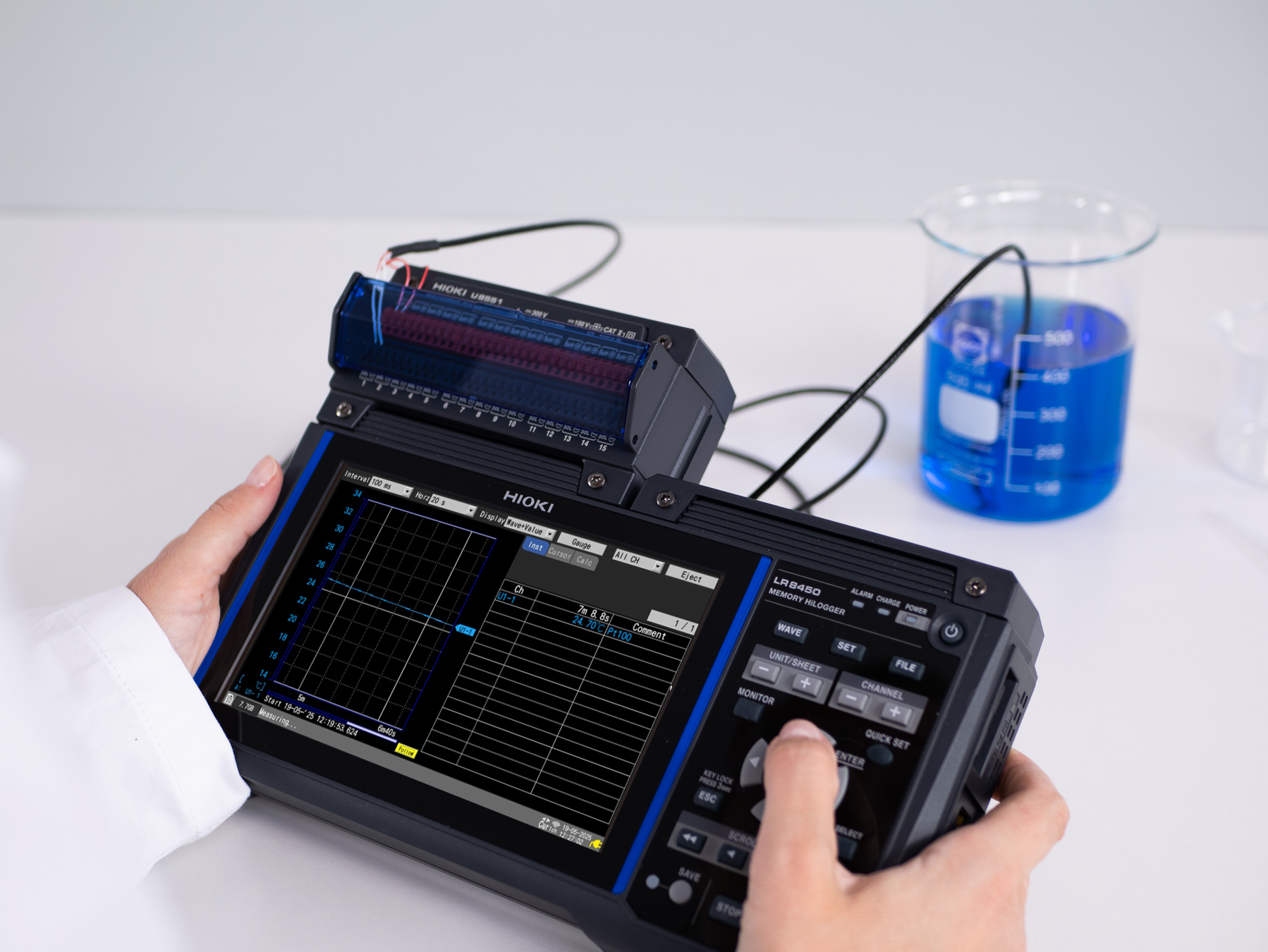

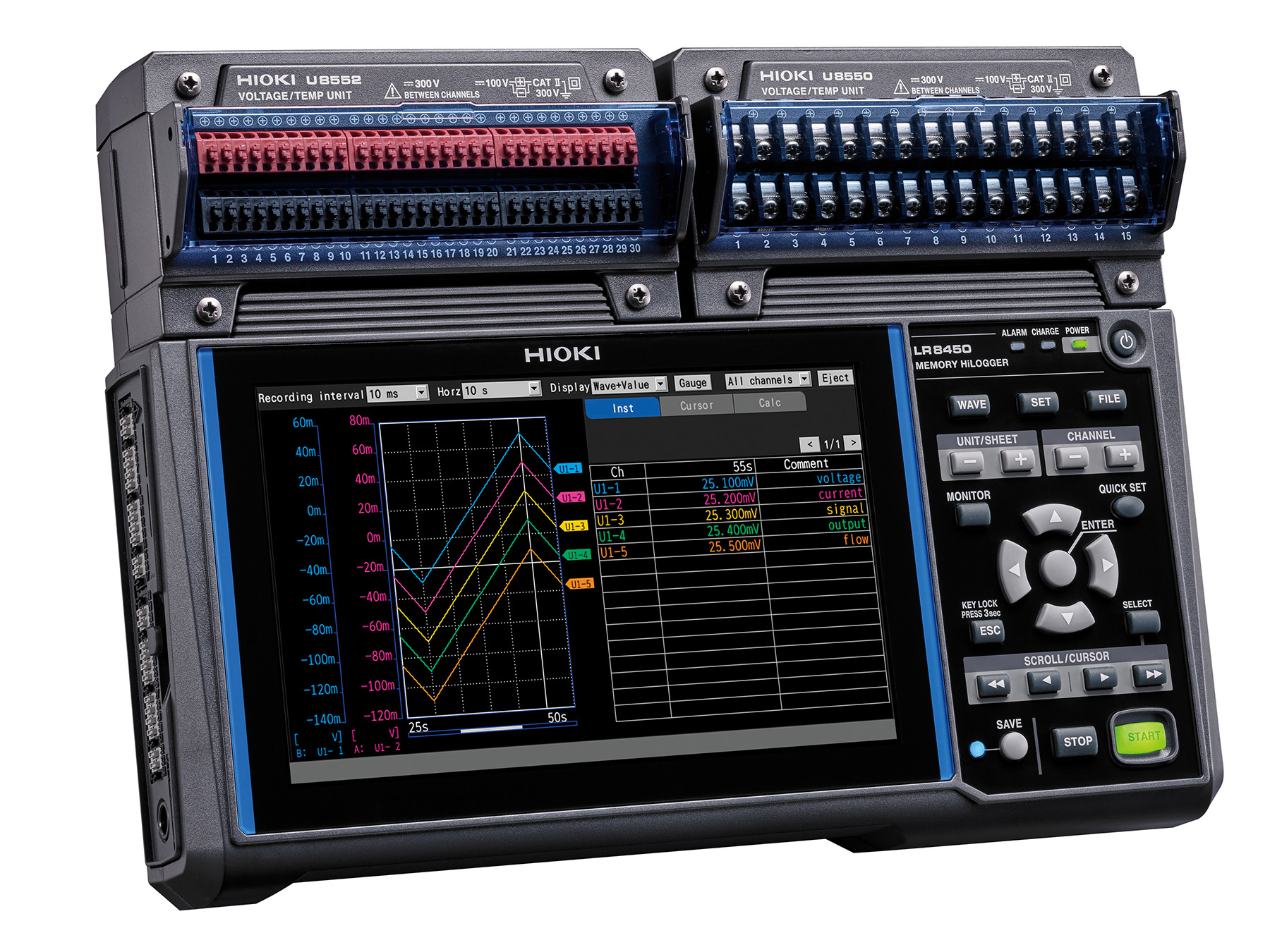

LR8450 - Modular multi-channel Data Logger

Multi-channel data logger, connect up to 4 plug-in modules with up to 120 analog channels, max. 1 ms update interval, max. 100 VDC, 8 inputs for pulse/logic/rotational speed, 7“ TFT-Display, GigabitLAN und USB / SD card, optional battery operation.

€1,818.00*

View product

LR8450-01

LR8450-01 - Wireless modular multi-channel Data Logger

WLAN-enabled multi-channel data logger with up to 4 plug-in and 7 WLAN modules (maximum 330 channels), 1 ms sampling interval, 100 VDC, 8 inputs for pulse/logic/rotational speed, 7″ TFT display, Gigabit LAN, USB/SD, optional battery operation.

€2,158.00*

View product

MR6000

MR6000 - 32-channel modular memory recorder, 200 MS/s, 1000V, touchscreen

Modular memory recorder, up to 32 channels, max. sampling rate 200 MS/s, max 1000 VDC isolated direct voltage input, up to 256 GB storage with SSD option, intuitive user interface, touchscreen, real-time waveform calculation and real-time saving

€5,000.00*

View product

MR8848

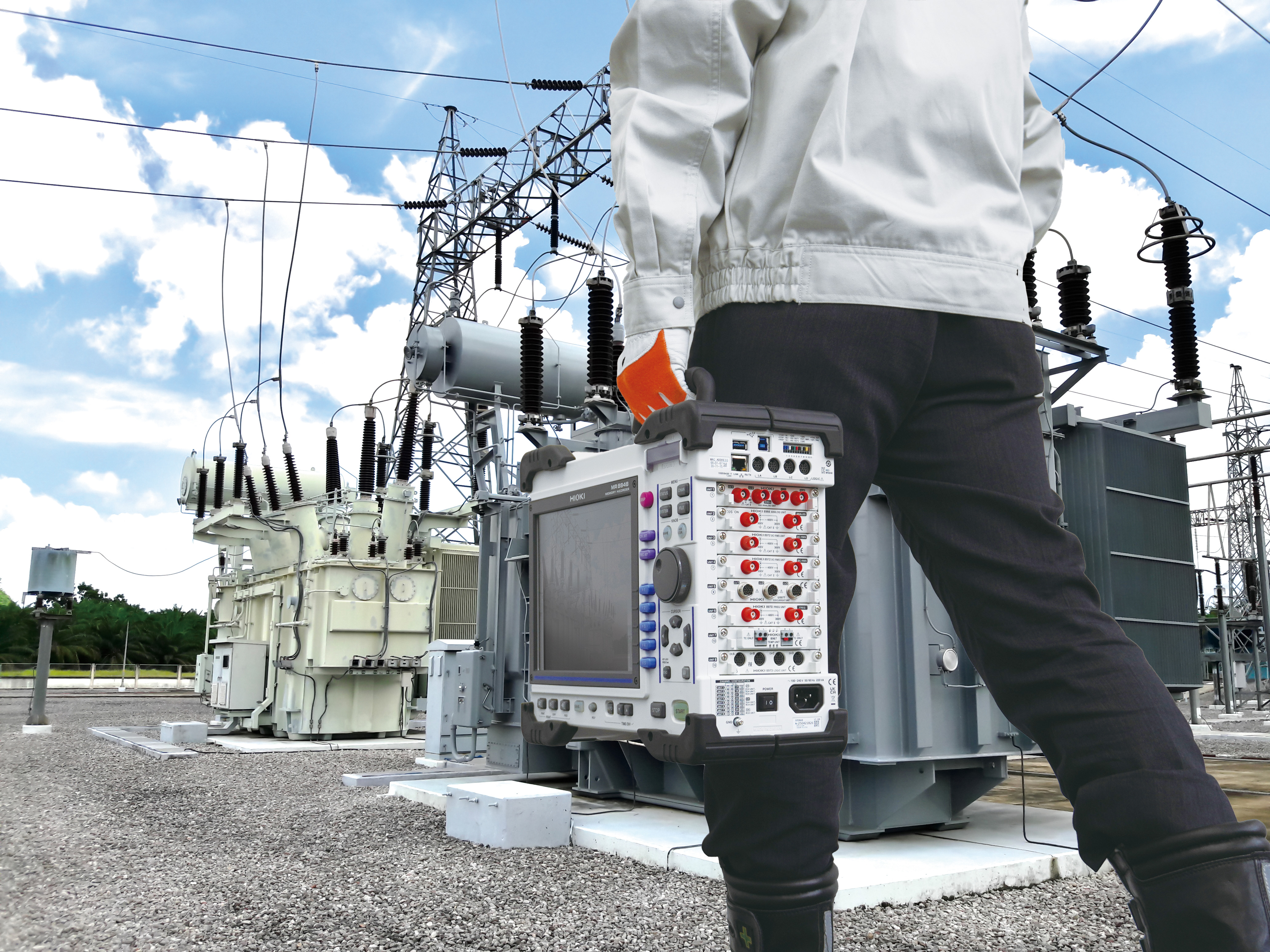

MR8848 - Modular 32-channel memory recorder, 20 MS/s, 1000 V direct input, rugged design

Modular memory recorder, up to 32 analog and 16 logic channels, max. sampling rate 20 MS/s, max 1000 VDC isolated direct voltage input, 1 TB storage with SSD option, optional real-time saving, rugged design, AC or DC power supply

€7,928.00*

View product

MR8870-20

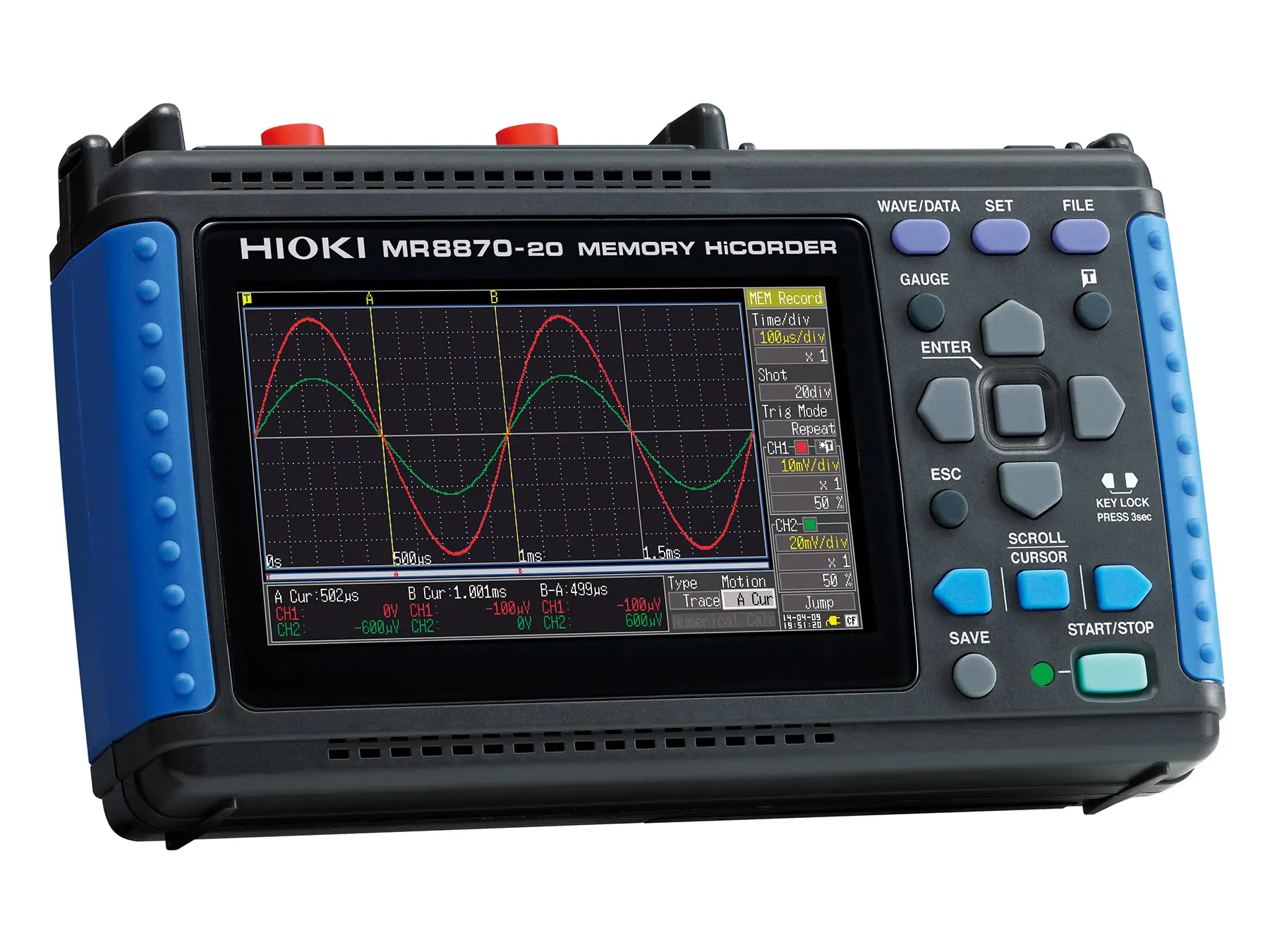

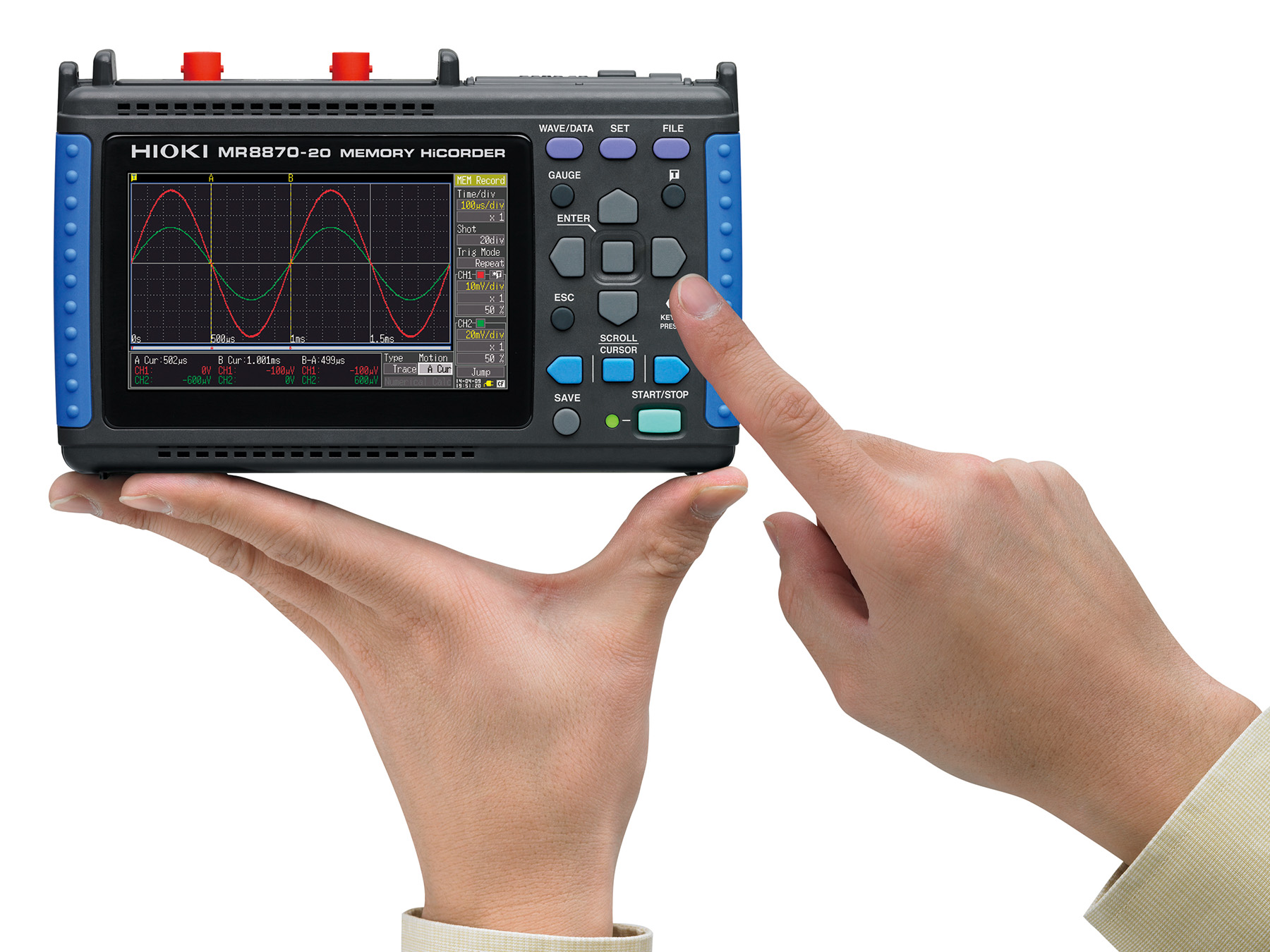

MR8870-20 - Portable data recorder

The Hioki MR8870-20 Data Recorder is a versatile, compact oscilloscope-like device designed for high-speed waveform recording and long-term RMS data capture. It features isolated inputs for safe measurement of power lines, and its real-time data-saving functionality ensures continuous monitoring with minimal interruptions.With up to 1 MS/s sampling rate and the ability to record fluctuations in RMS data, the MR8870-20 is ideal for applications such as motor startup analysis, inverter output waveform monitoring, and CB timing measurements. Its portable design makes it easy to use on-site. Technical Details: Channels: 2 analog, 4 logic channels Max Sampling Rate: 1 MS/s (1 µs) Memory Capacity: 12 bits × 2 M-Words/channel Storage: CF card (up to 2 GB, FAT/FAT32) Display: 4.3-inch TFT color LCD Operating Temperature: 0°C to 40°C Power Supply: AC adapter (100–240 V), Battery Pack 9780 Dimensions: 176 mm (W) × 101 mm (H) × 41 mm (D) Weight: 600 g (with battery pack)

€1,248.00*

View product

Choose your VRLA battery test set

HIOKI’s BT3554 battery tester series are the perfect tool for maintenance checks of UPS systems, regardless of the battery size and capacity. You can choose a BT3554 model with Bluetooth transmitter or without, including straight probes (9465-10) or L-shaped test probes fitting your requirements to test even hard-to-reach battery installations time-efficiently.

BT3554 Variants – Measuring cable, Bluetooth and Description
Model	Measuring cable	Bluetooth	Description
Model: BT3554-50	Measuring cable: without test cable	Bluetooth: Z3210 required	Description: Battery tester and the carrying case with spare parts. Test leads are required separately.
Model: BT3554-51	Measuring cable: 9465-10 (straight)	Bluetooth: Z3210 required	Description: Battery tester incl. straight test probes 9465-10 for installations with easy access. No Bluetooth transmitter included.
Model: BT3554-52	Measuring cable: L2020 (angled)	Bluetooth: Z3210 required	Description: Battery tester incl. angled test probes L2020 for installations with narrow access space. No Bluetooth transmitter included.
Model: BT3554-91	Measuring cable: 9465-10 (straight)	Bluetooth: Included	Description: Complete set with straight test probes Battery tester, straight probes 9465-10 and Bluetooth transmitter for easy efficient data reporting included.
Model: BT3554-92	Measuring cable: L2020 (angled)	Bluetooth: Included	Description: Complete set with angled test probes Battery tester, angled L2020 probes and Bluetooth transmitter for easy efficient data reporting included.
