HIOKI Data Logger & Recorder Modules

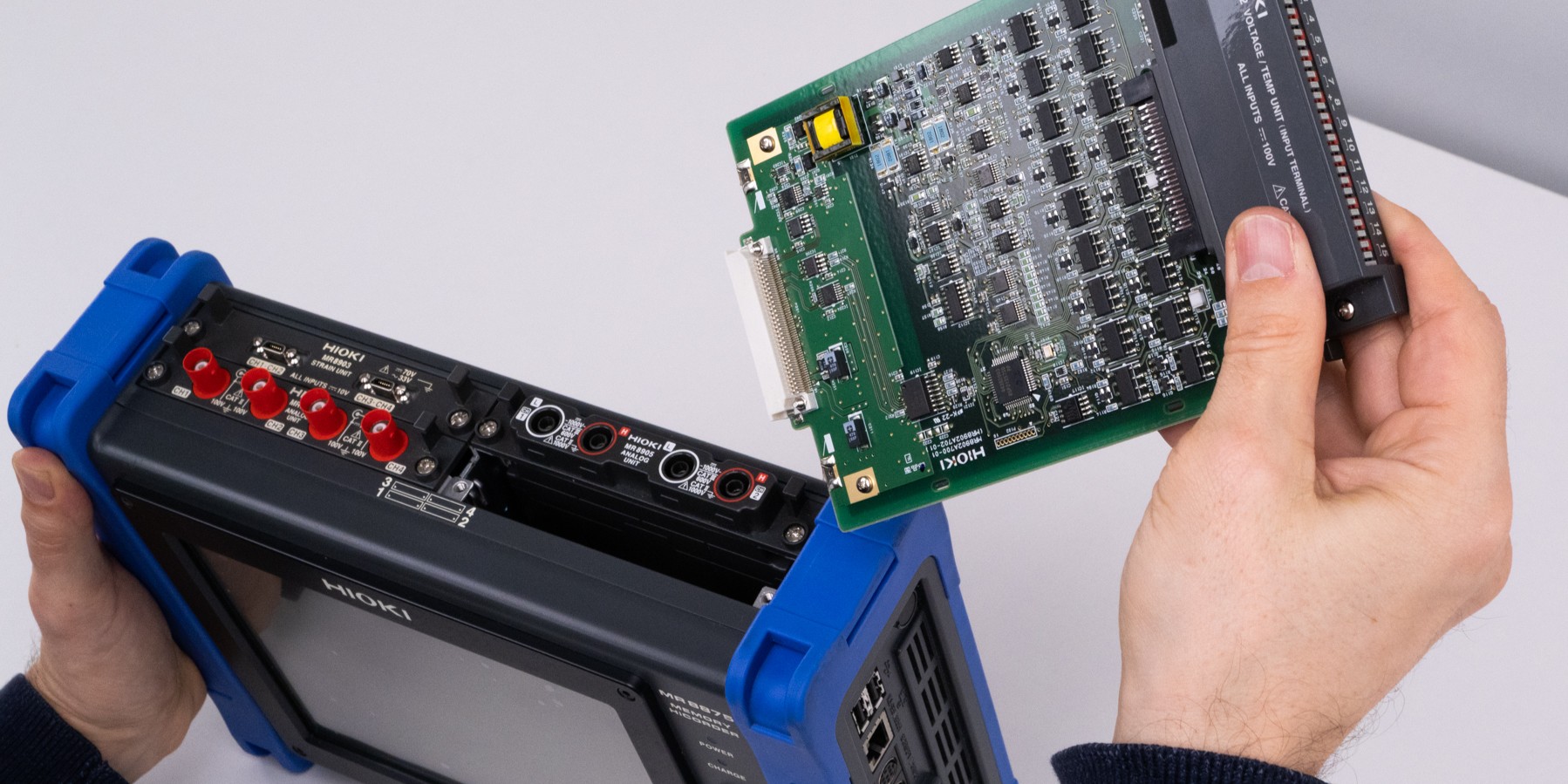

3.DAQ-Module_MT8875 Memory recorder module- 2-1

Build your DAQ system around your needs

HIOKI’s wide range of measurement modules allow modular Data Loggers and Memory Recorders to be configured precisely for your specific maintenance and service tasks. The possibility to combine different modules enables the acquisition of both electrical and physical signals with flexible channel counts and signal combinations with a single DAQ system.

The HIOKI module portfolio covers a wide range of signal types and requirements, including current measurement and high-speed signal recording, strain measurement, temperature and heat-flow monitoring, as well as acceleration, vibration analysis and CAN in and output. For Memory Recorders, the range also includes output modules for signal generation and simulation in addition to input modules. Select your combination.

9784

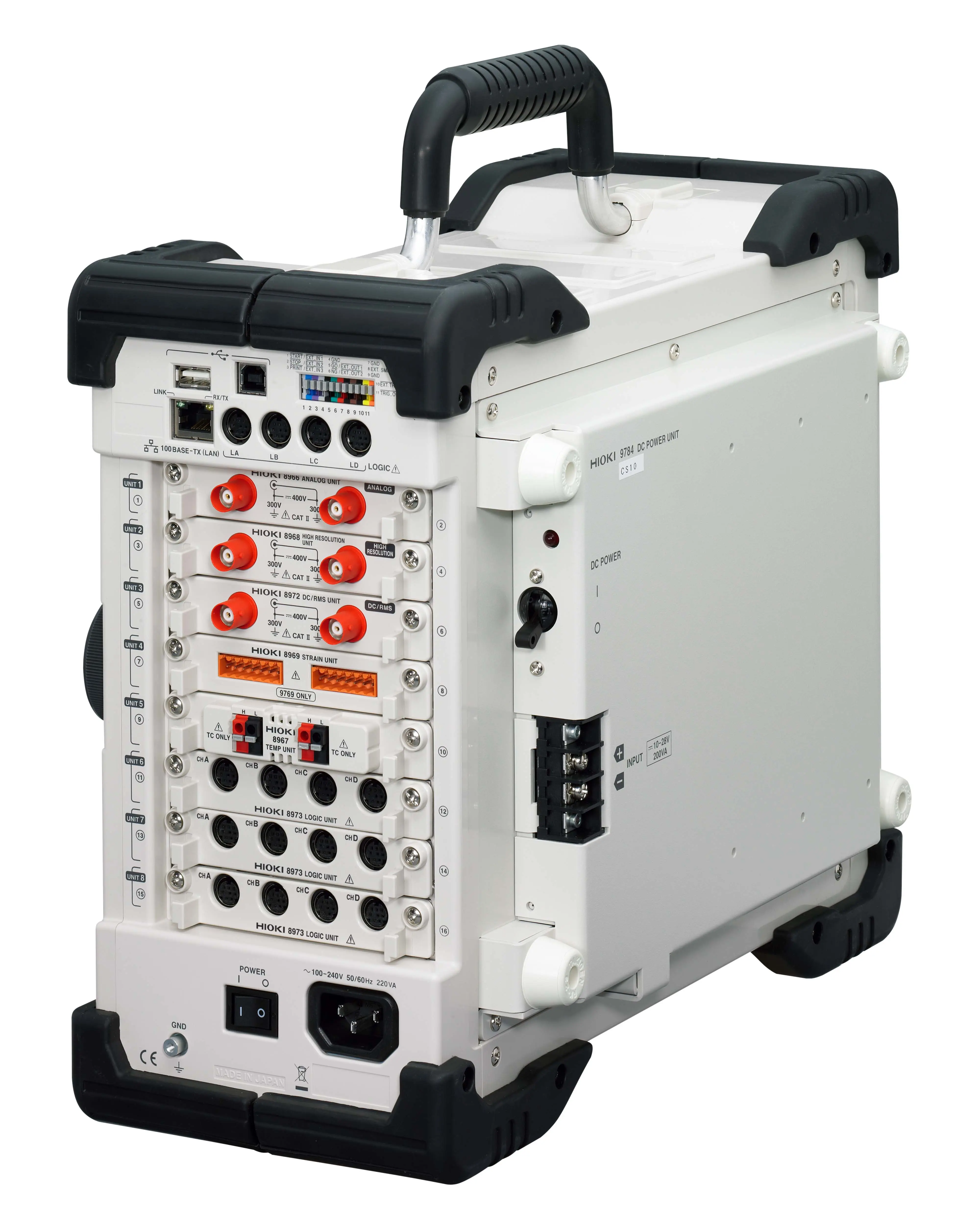

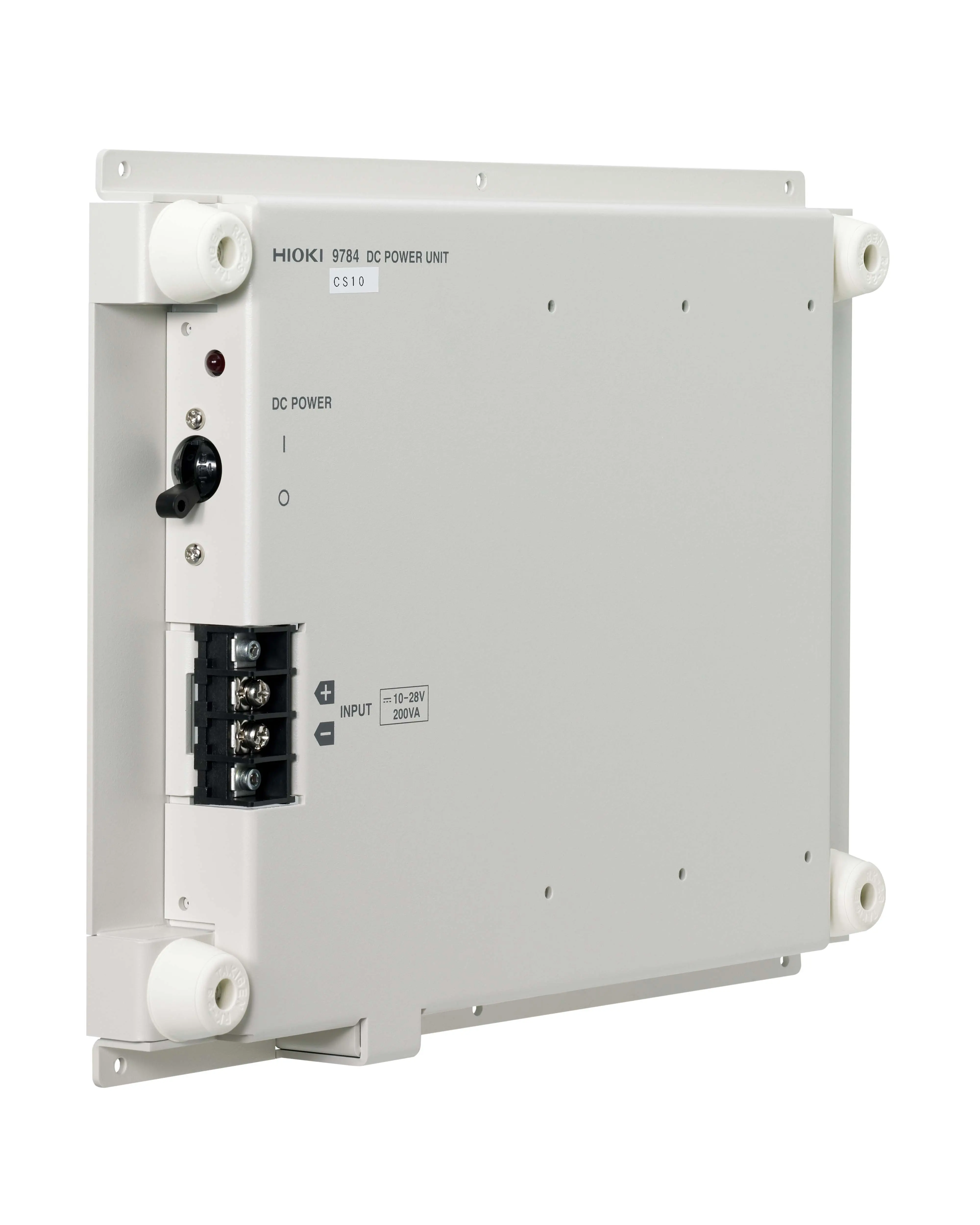

9784 - DC Power Unit for MR8848, factory-installed option

DC Power Unit for MR8848, factory-installed option, 10 to 28 VDC

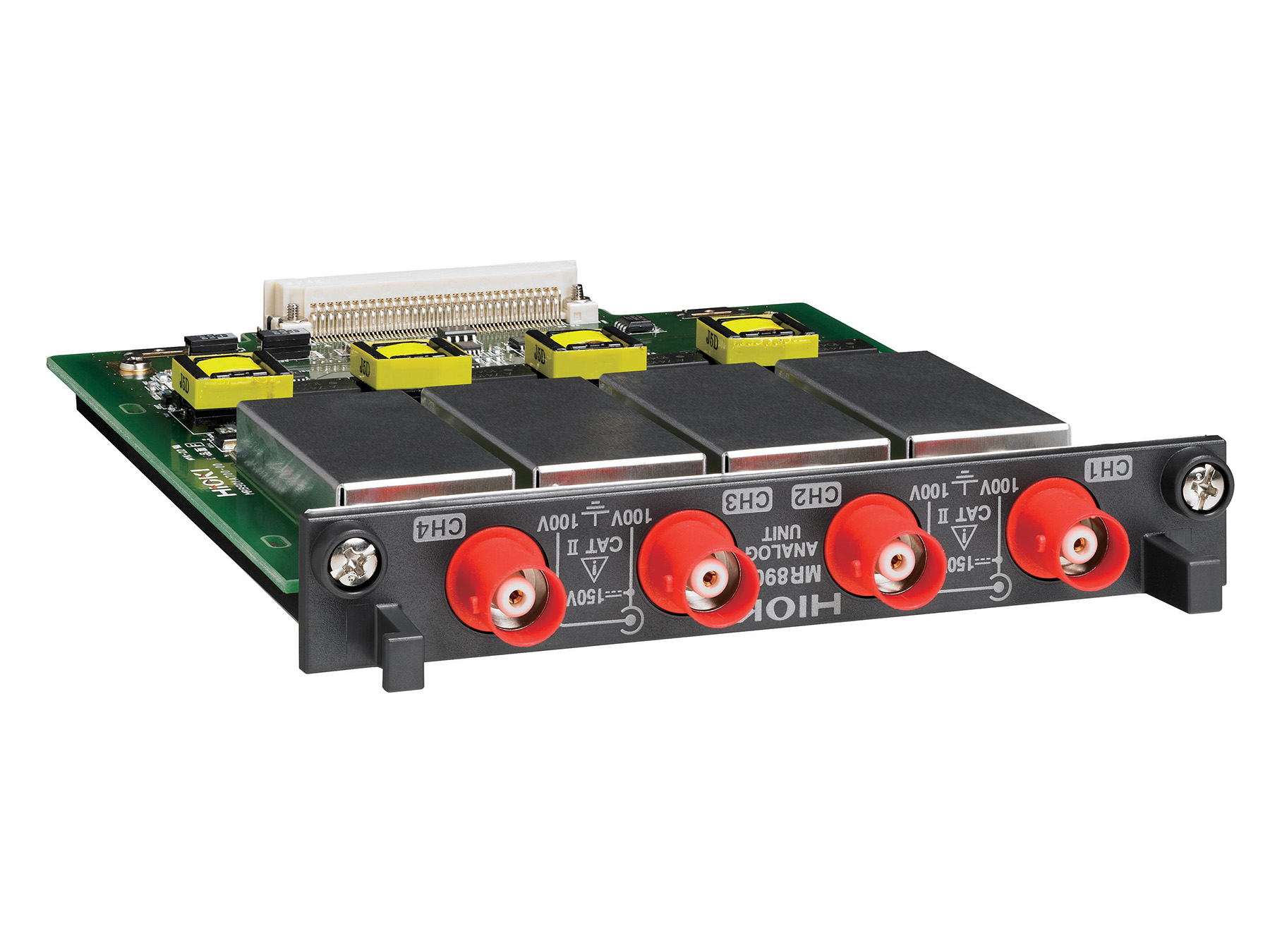

MR8901

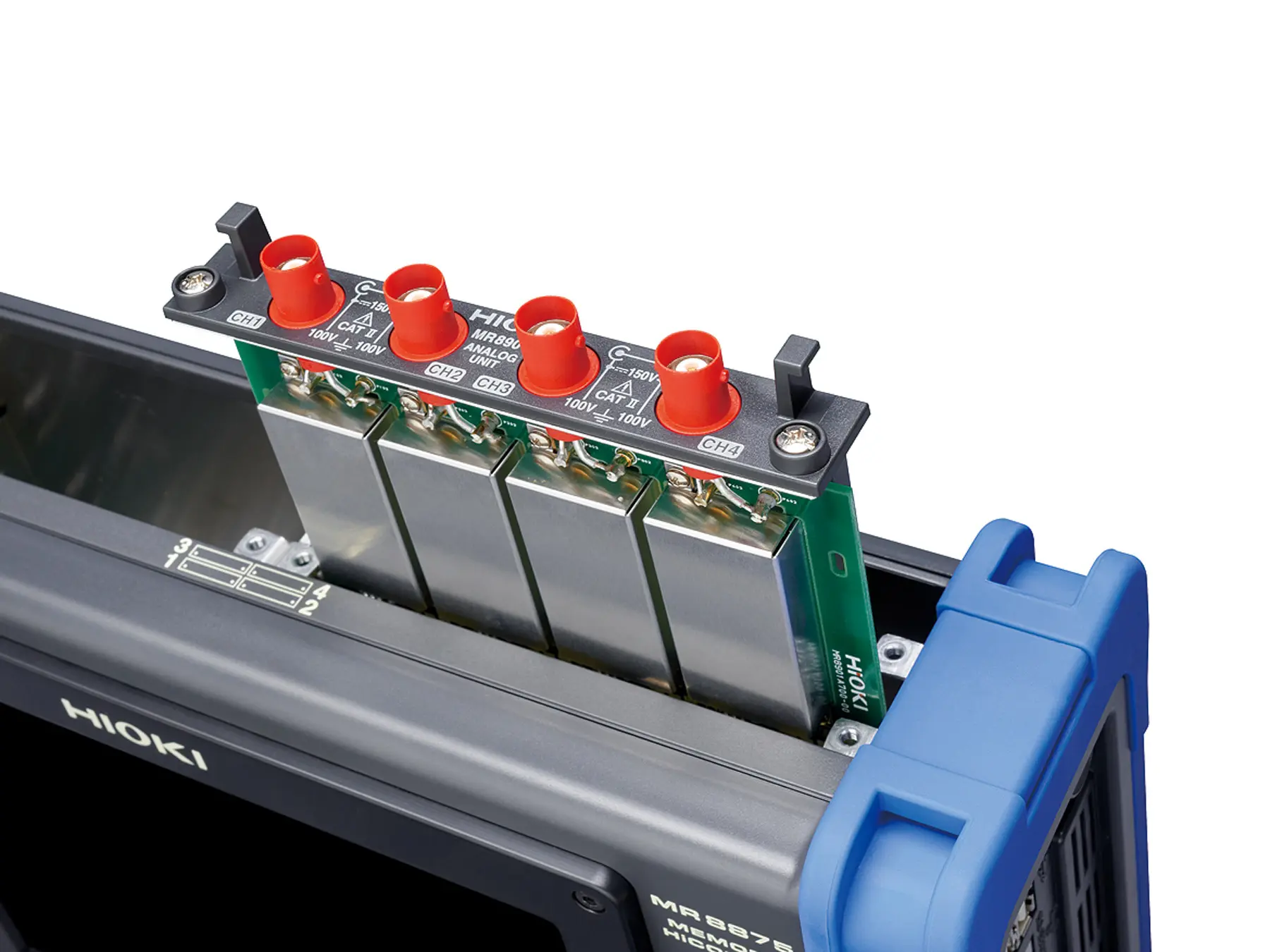

MR8901 - Input module for MR8875

The Hioki MR8901 is a 4-channel analog input module designed for use with Hioki Memory Recorders. It allows precise voltage measurement across a wide range of frequencies, making it ideal for capturing fast transients and DC signals. With a maximum sampling rate of 500 kS/s and an integrated 16-bit A/D converter, it ensures high-resolution data acquisition.Technical Details:Channels: 4, voltage measurement Input Connectors: Isolated BNC (input resistance 1 MΩ, input capacitance 10 pF) Sampling Rate: 500 kS/s Measurement Range: 5 mV to 10 V/divLow-pass Filter: 5/50/500 Hz, 5 kHz Resolution: 1/1250 of measurement range (16-bit A/D converter) Accuracy: ±0.5% of full scaleFrequency Characteristics: DC to 100 kHz (-3 dB) Input Coupling: DC/GND Max Allowable Input: 150 V DC Dimensions: 119.5 mm (W) × 18.8 mm (H) × 151.5 mm (D)Weight: 180 g (6.3 oz)

€1,478.00*

View product

MR8902

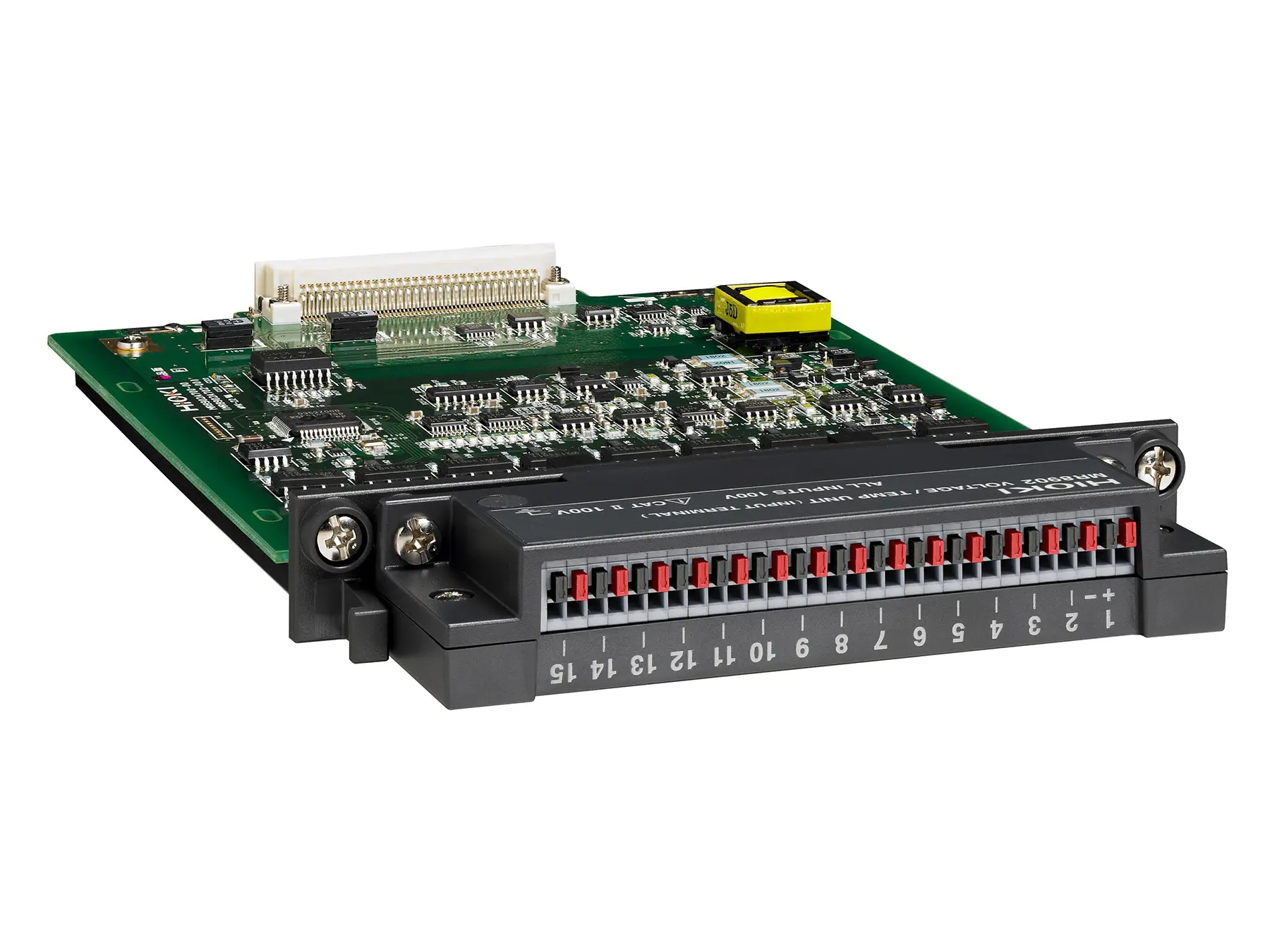

MR8902 - Input module for MR8875

The Hioki MR8902 is a 15-channel analog input module that supports both voltage and temperature measurements. It's designed for use with Memory recorder, offering flexibility for mixed-signal data capture across different types of sensors. With high-resolution measurements and customizable filtering, it’s ideal for applications requiring precise, multi-channel monitoring. This module offers robust performance for both voltage and temperature measurements in demanding applications.Technical Details: Channels: 15, for voltage/temperature measurementInput Connectors: Push button terminal (voltage/thermocouple) Voltage Measurement Ranges: 500 µV to 5 V/div (9 ranges) Temperature Measurement: Thermocouple types K, J, E, T, N, R, S, B, WRe5-26 Resolution: 1/1000 of measurement range (16-bit A/D converter) Digital Filter: 50 Hz, 60 Hz, or OFF Data Refresh Rate: 10 ms to 2 s (depending on filter settings) Max Allowable Input: 100 V DC Dimensions: 119.5 mm (W) × 18.8 mm (H) × 184.8 mm (D) Weight: 190 g

€1,648.00*

View product

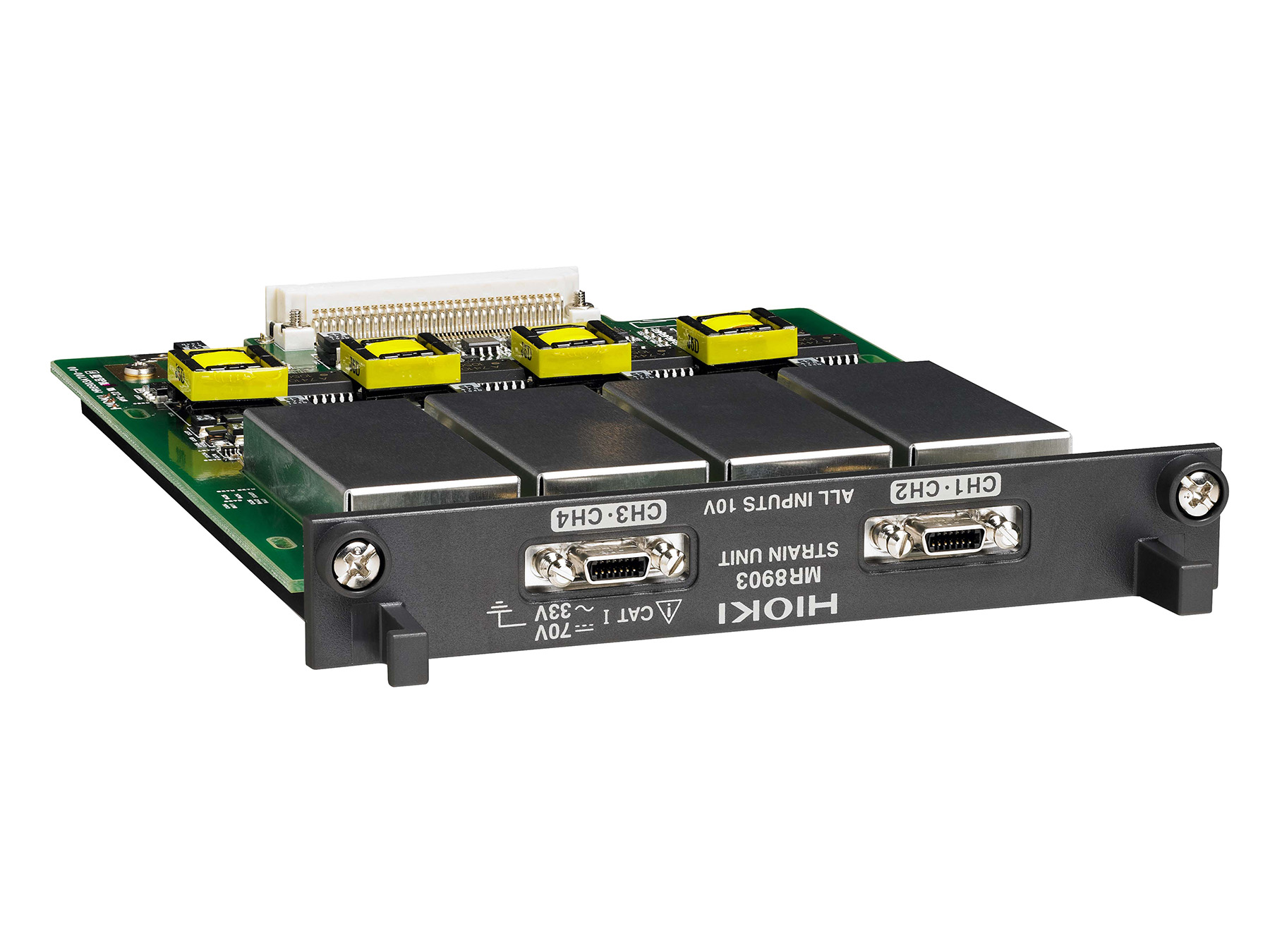

MR8903

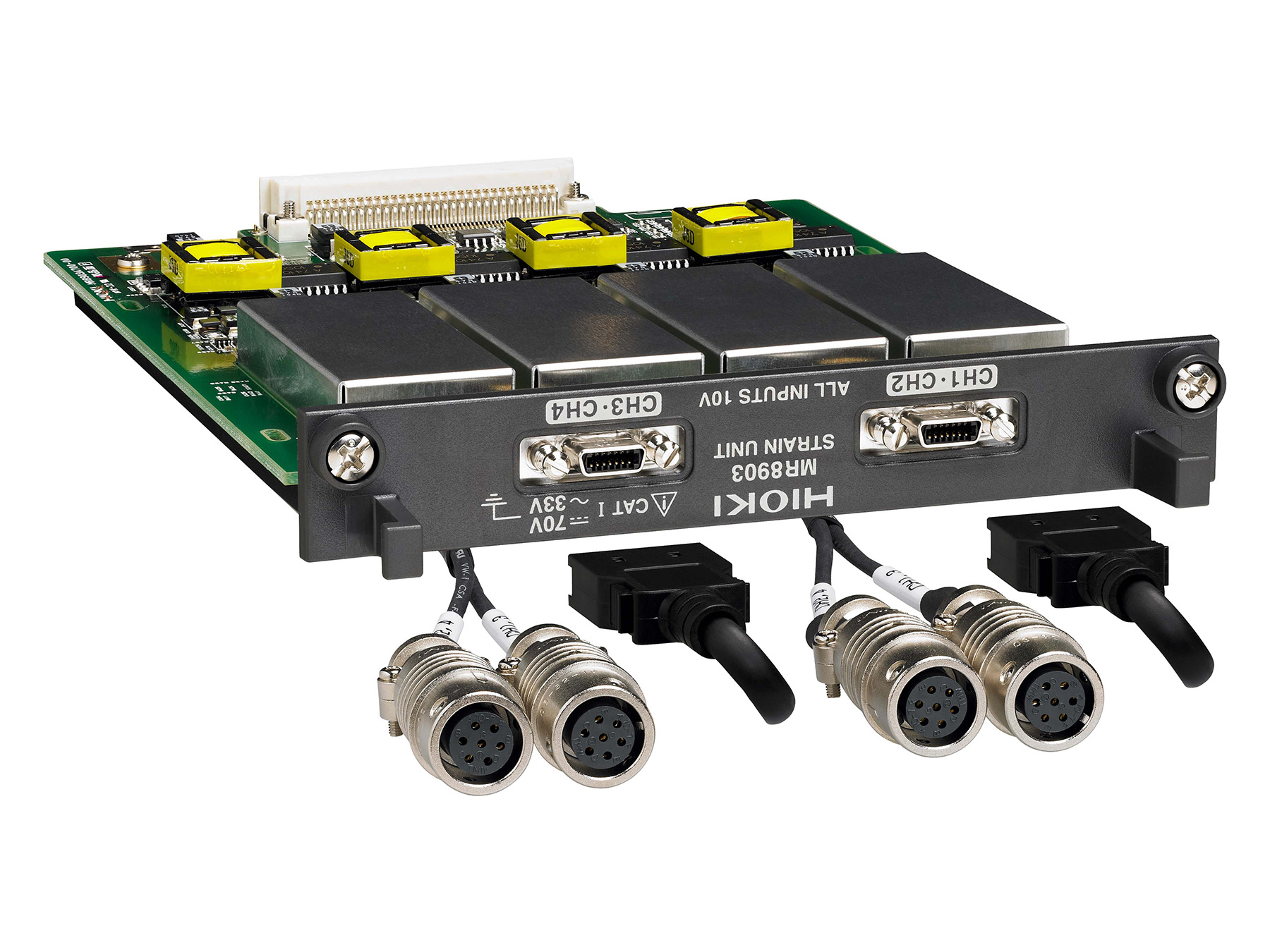

MR8903 - Input module for MR8875

The Hioki MR8903 is a 4-channel input module designed for voltage and strain measurements, ideal for precision data acquisition in industrial and research environments. It supports a wide range of strain gauges and offers electronic auto-balancing, ensuring high accuracy in both dynamic and static measurements. The module features customizable low-pass filters and provides high-resolution data capture with a 16-bit A/D converter. Technical Details: Channels: 4, selectable for voltage/strain measurement Voltage Measurement Range: 50 µV to 1000 µV/div Strain Measurement Range: 20 µε to 1000 µε/div Input Connectors: Strain gauge converter, Bridge resistance: 120 Ω to 1 kΩ Max Sampling Rate: 200 kS/s Low-pass Filter: 5/10/100 Hz, 1 kHz, OFFResolution: 1/1250 of measurement range (16-bit A/D converter) Max Allowable Input: 5 V DC Dimensions: 119.5 mm (W) × 18.8 mm (H) × 151.5 mm (D)Weight: 173 g

€3,398.00*

View product

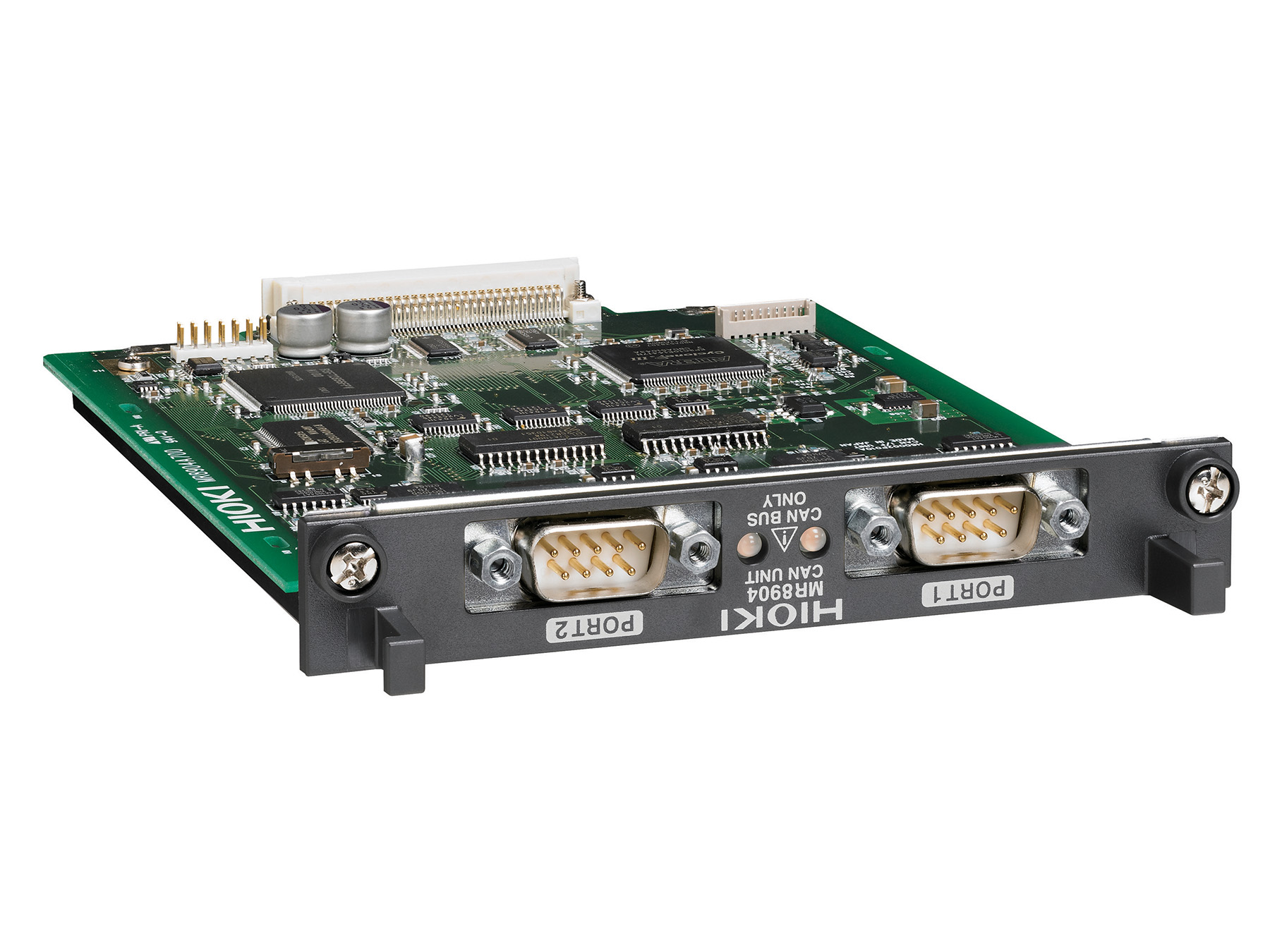

MR8904

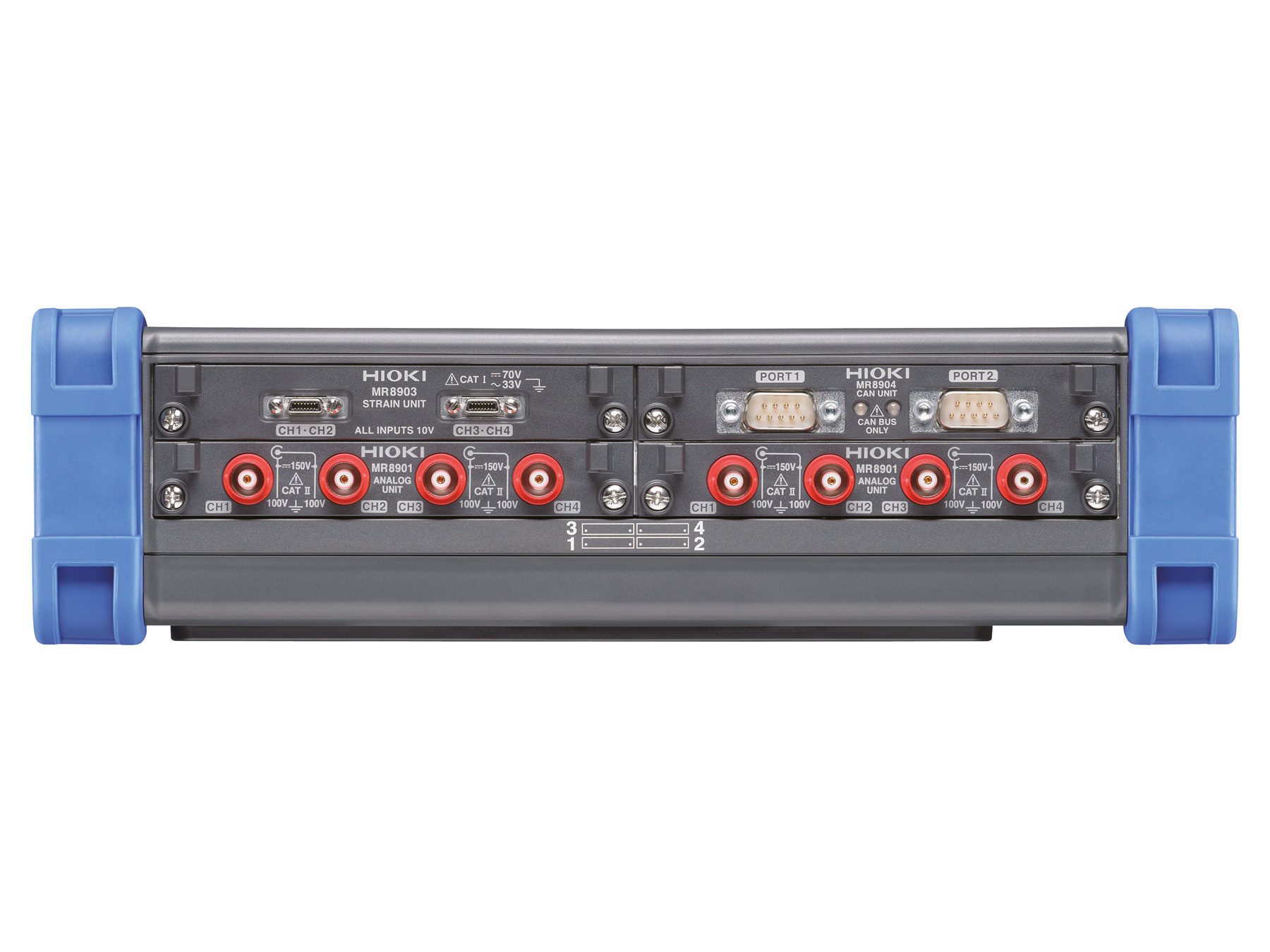

MR8904 - Input module for MR8875

The Hioki MR8904 is a dual-port CAN (Controller Area Network) input module designed to interface with Memory recorder. It supports high-speed, low-speed, and single-wire CAN configurations, making it versatile for automotive and industrial applications. This module enables the analysis of up to 15 analog and 16 logic channels from CAN signals, providing precise data extraction and logging with fast response times. Technical Details:Input CAN Port: 2 ports, D-sub 9-pin male connectors Standards: ISO 11898 CAN 2.0b, ISO 11898-1, -2, -3, SAE J2411Interface: High-speed, low-speed, or single-wire CAN (selectable per port) Transmit ACK: ON/OFF for CAN signal acknowledgment Terminator: ON/OFF, 120 Ω built-in resistance Baud Rate: 50 kbps to 1 Mbps (high-speed), 10 kbps to 125 kbps (low-speed), 10 kbps to 83.3 kbps (single-wire) Analyzed Output Channels: Up to 15 analog and 16 logic channelsSignal Form: 1-bit to 32-bit signals (analog and logic) Response Time: Within 200 µs of receiving CAN message Dimensions: 119.5 mm (W) × 18.8 mm (H) × 151.5 mm (D)Weight: 185 g

€2,268.00*

View product

MR9000

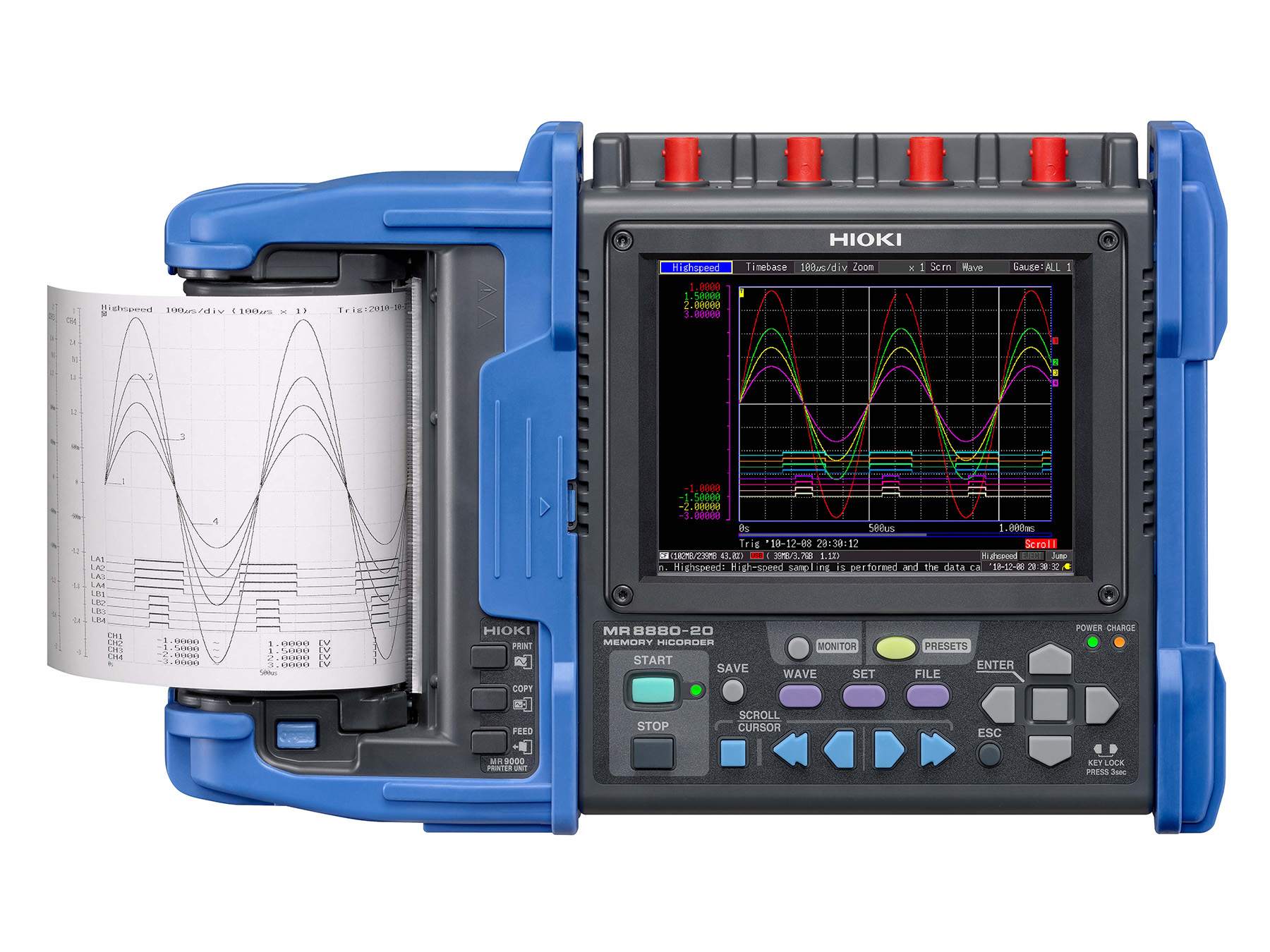

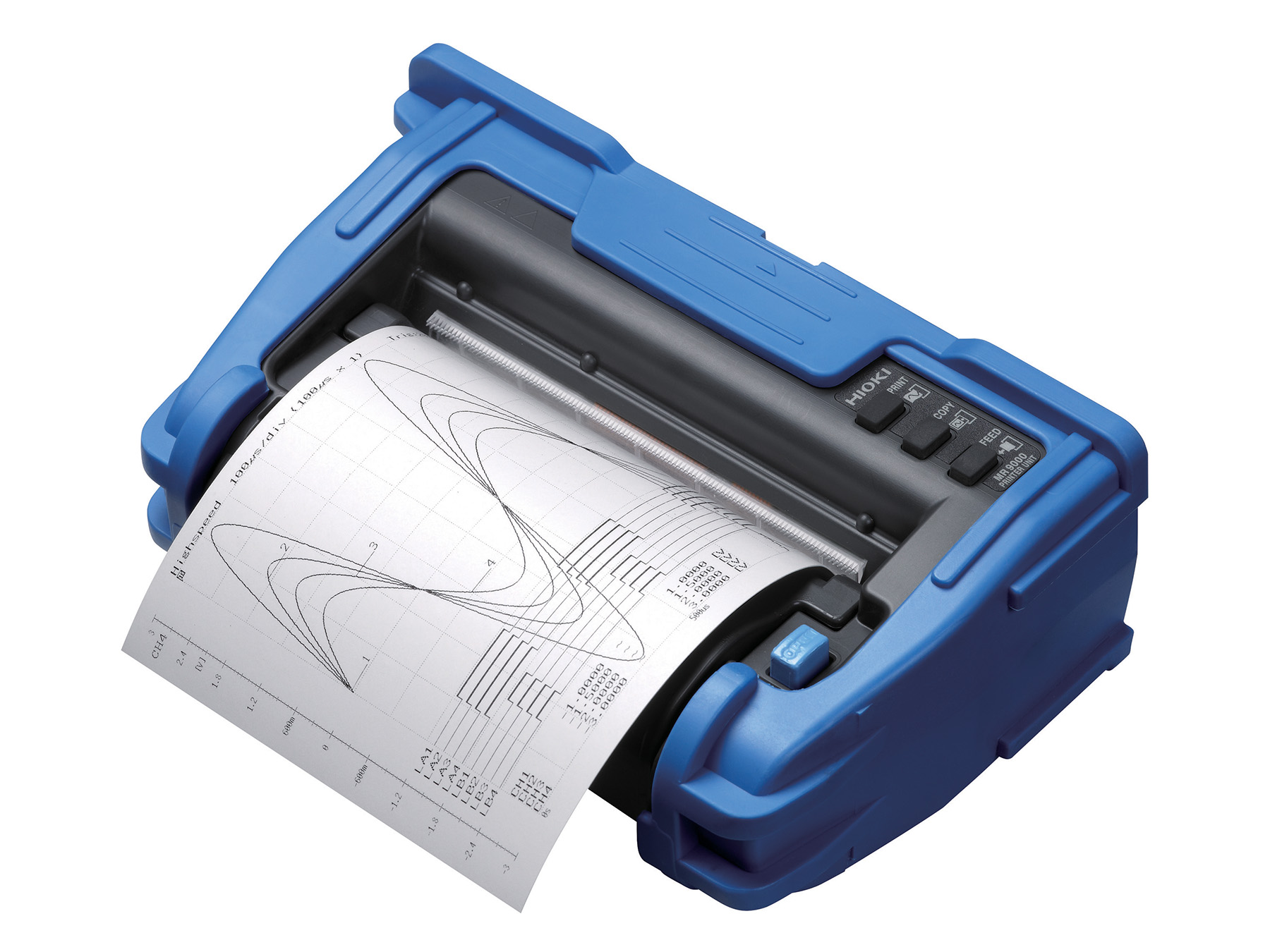

MR9000 - Printer module for MR8880-20

The MR9000 Printer Unit is designed for use with the Hioki MR8880-20 Memory recorder, enabling easy printouts of measurement results. This compact and efficient printer offers precise waveform documentation directly from the connected Memory HiCorder, making it ideal for fieldwork and quick data review. The MR9000 ensures seamless integration with your HiCorder, delivering accurate and reliable outputs for all your measurement needs. Technical Information: Compatible devices: Hioki MR8880-20 Memory HiCorder Usable recording paper: 9234 Recording Paper Recording width: 104 mm (832-dot resolution), waveform section width 100 mmRecording speed: Max 1 cm/s Paper feed accuracy: ±3% (at 25°C, 60% RH)

€628.00*

View product

Choose your VRLA battery test set

HIOKI’s BT3554 battery tester series are the perfect tool for maintenance checks of UPS systems, regardless of the battery size and capacity. You can choose a BT3554 model with Bluetooth transmitter or without, including straight probes (9465-10) or L-shaped test probes fitting your requirements to test even hard-to-reach battery installations time-efficiently.

BT3554 Variants – Measuring cable, Bluetooth and Description
Model	Measuring cable	Bluetooth	Description
Model: BT3554-50	Measuring cable: without test cable	Bluetooth: Z3210 required	Description: Battery tester and the carrying case with spare parts. Test leads are required separately.
Model: BT3554-51	Measuring cable: 9465-10 (straight)	Bluetooth: Z3210 required	Description: Battery tester incl. straight test probes 9465-10 for installations with easy access. No Bluetooth transmitter included.
Model: BT3554-52	Measuring cable: L2020 (angled)	Bluetooth: Z3210 required	Description: Battery tester incl. angled test probes L2020 for installations with narrow access space. No Bluetooth transmitter included.
Model: BT3554-91	Measuring cable: 9465-10 (straight)	Bluetooth: Included	Description: Complete set with straight test probes Battery tester, straight probes 9465-10 and Bluetooth transmitter for easy efficient data reporting included.
Model: BT3554-92	Measuring cable: L2020 (angled)	Bluetooth: Included	Description: Complete set with angled test probes Battery tester, angled L2020 probes and Bluetooth transmitter for easy efficient data reporting included.
