HIOKI Data Loggers & Recorders

Which DAQ Instrument Do You Need?

HIOKI Data Loggers and Memory Recorders support maintenance, service, and troubleshooting from long-term monitoring to high-speed event capturing. The versatile LR8450-01 Wireless Data Logger enables multi-channel data acquisition and wireless logging for condition monitoring and predictive maintenance for many applications.

For on-site electrical signal analysis, the MR8870 Memory Recorder provides a compact 2-channel solution for AC voltage measurement. When high-speed data acquisition of electrical and physical signals is required, the modular MR8875 Memory Recorder is optimized to enable deeper diagnostics and signal correlation.

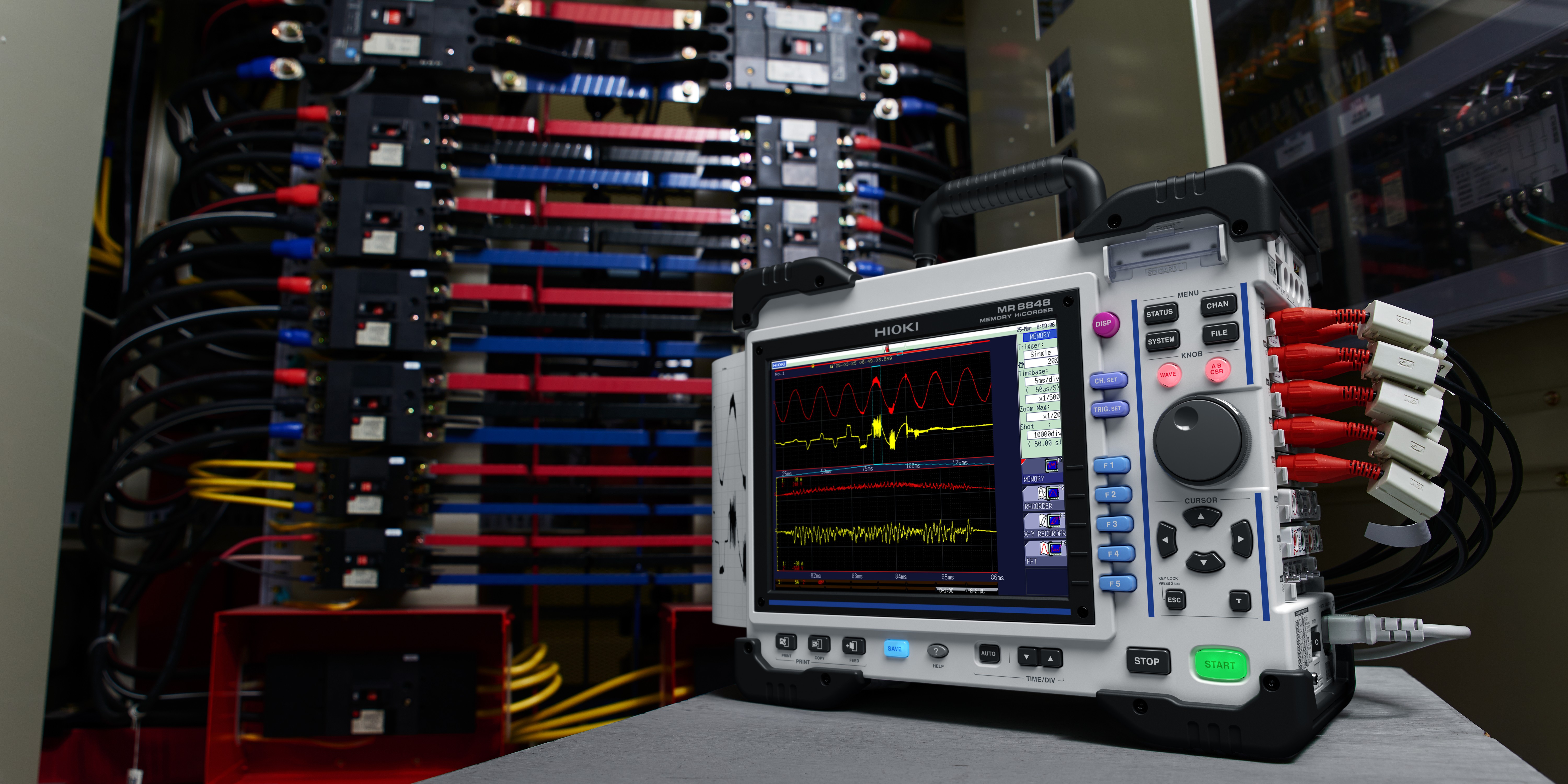

At the top end of portable recorders, the rugged MR8848 Memory Recorder offers high-speed, multi-channel data acquisition with selectable input modules and sampling rates of up to 20 MS/s for detailed waveform recording and system verification.

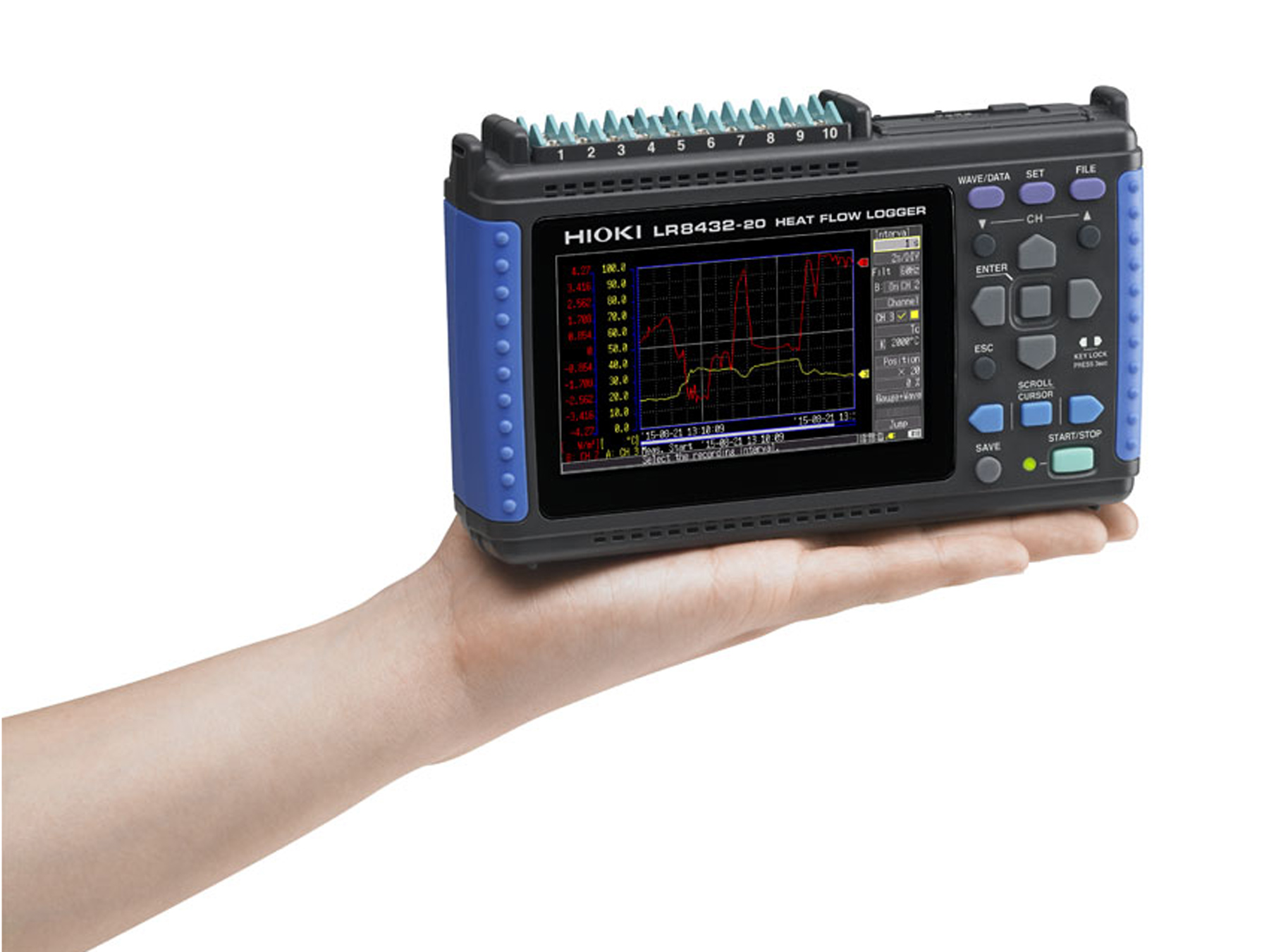

LR8432 - Handheld 10-channel Data Logger with native support for heat flow sensors

HIOKI LR8432 handheld 10-channel data logger

LR8432-20

LR8432 - Handheld 10-channel Data Logger with native support for heat flow sensors

10-channel handheld data logger for voltage / temperature plus 4 channels for pulse / rotation, direct input of heat flow sensors, isolated inputs

€1,658.00*

View product

LR8515

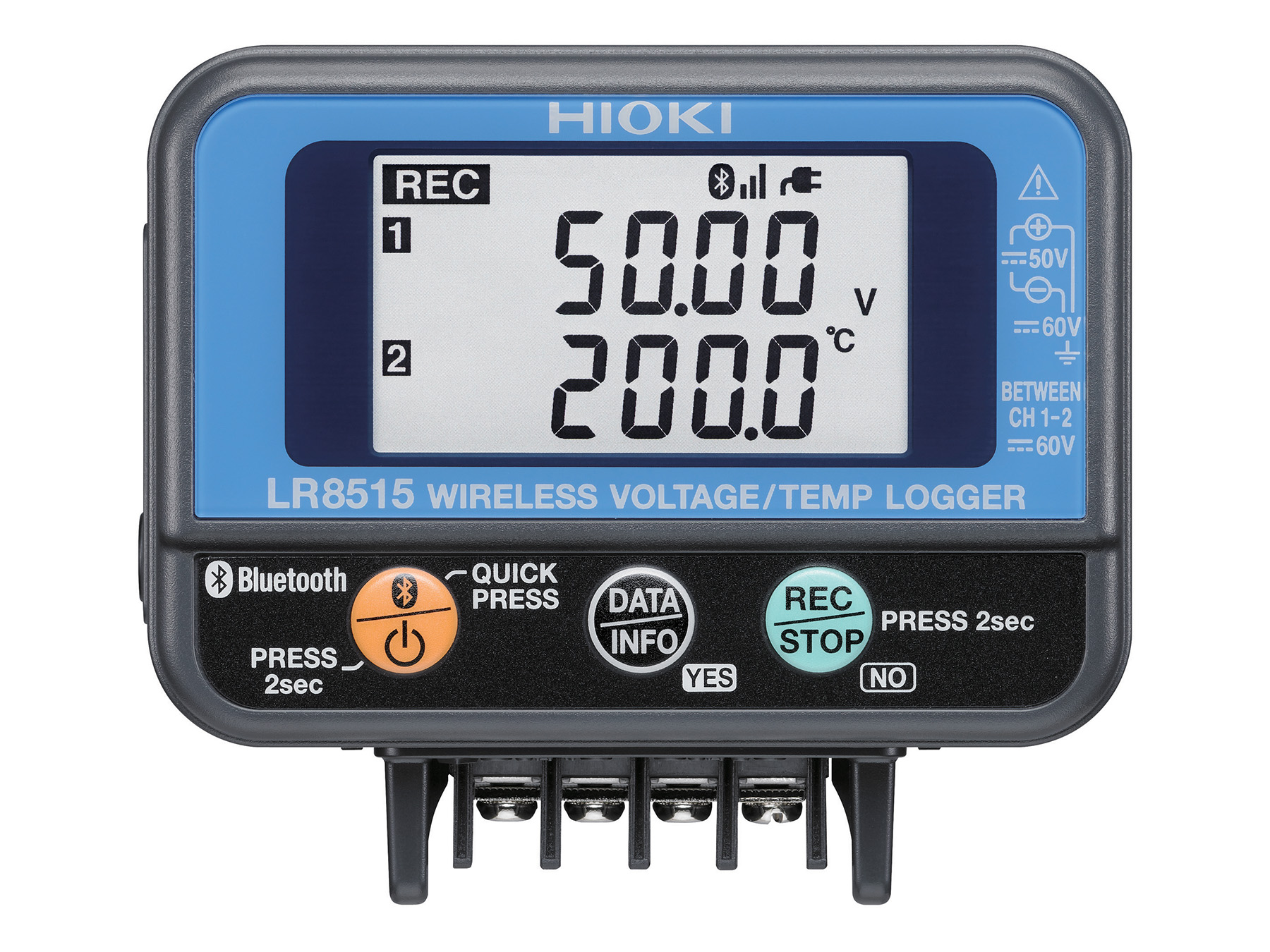

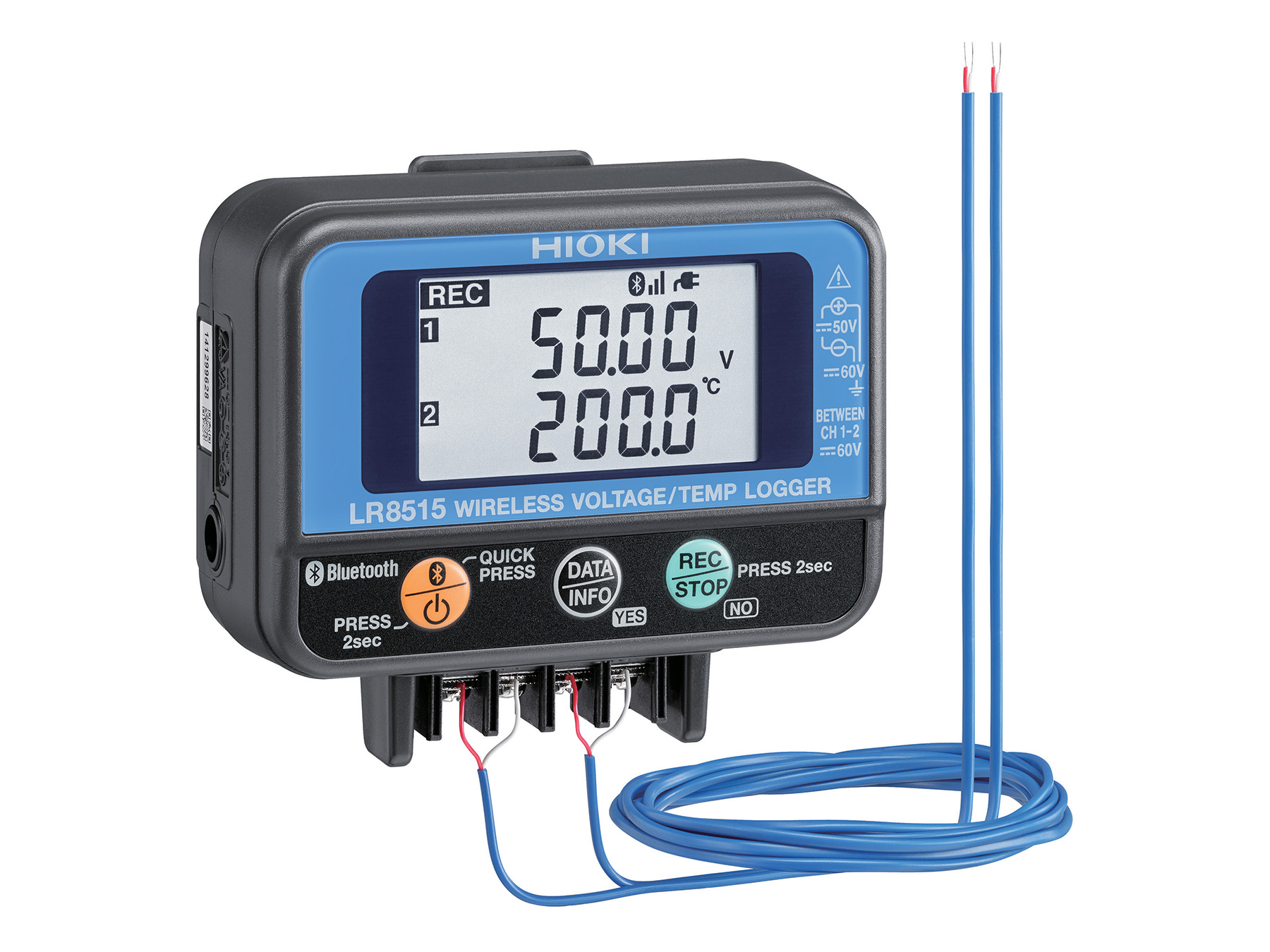

LR8515 - Bluetooth Voltage/Temperature Logger

Compact 2-channel data logger, voltage, temperature (thermocouples K, T) logging, Bluetooth, max. 500 000 data points/channel, AC, DC or battery operation

€518.00*

View product

MR8875

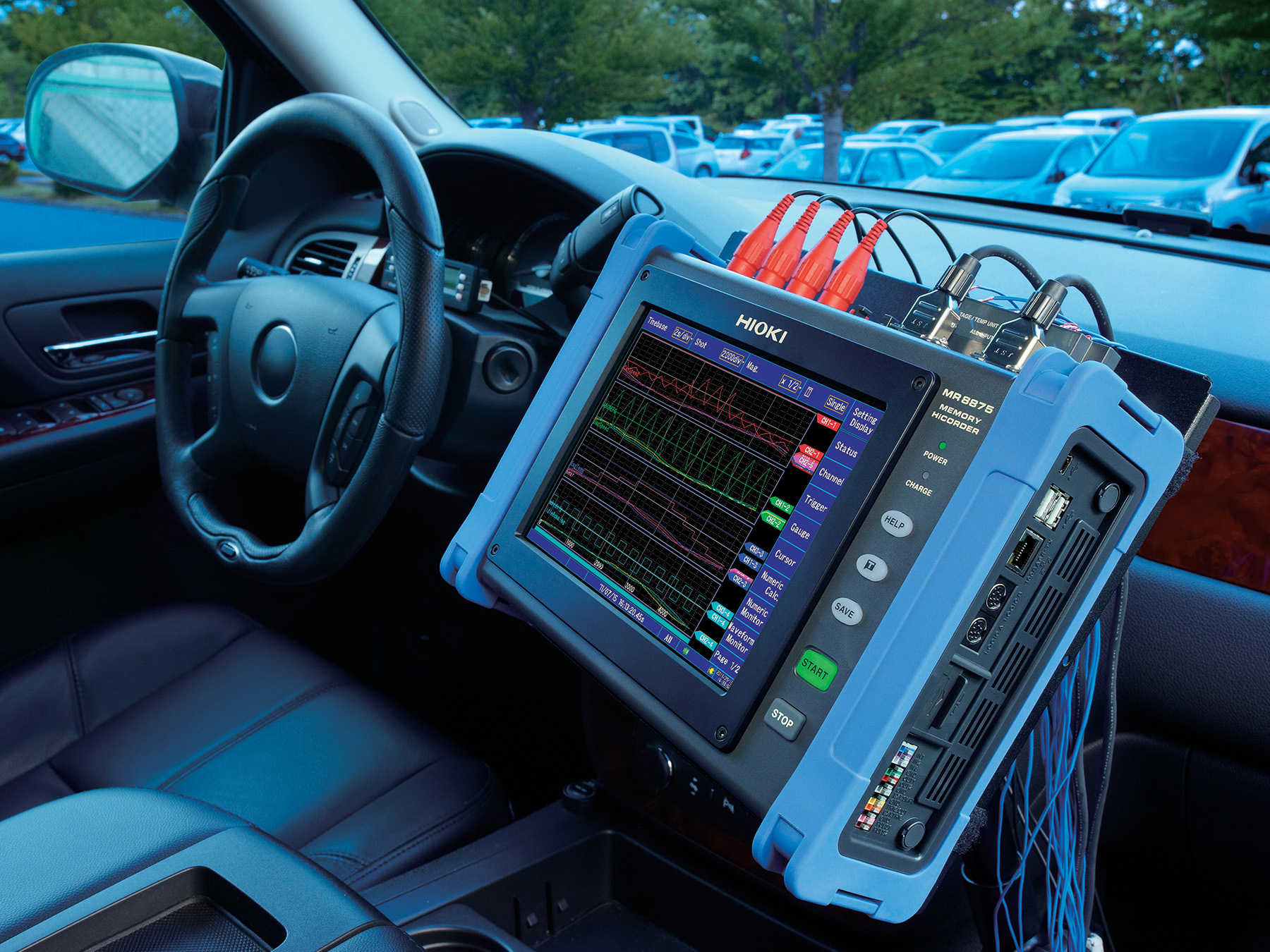

MR8875 - Portable memory recorder

The Hioki MR8875 Memory Recorder is a high-speed, multi-channel logger designed for long-term data recording and real-time waveform monitoring. It supports various input modules for mixed signal measurement, including voltage, temperature, strain, and CAN signals, with a sampling period as short as 2 µs. Its robust design is suitable for harsh environments, making it ideal for applications such as battery evaluation, motor testing, and power equipment analysis. Technical Details: Channels: Up to 60 channels with input modulesSampling Rate: 500 kS/sMemory Capacity: 32 MW (64 MB) Display: 8.4-inch TFT color LCD Storage: SD card, USB memory stick Dimensions: 298 mm × 224 mm × 84 mmWeight: 2.4 kg (excluding modules)

€4,758.00*

View product

Choose your VRLA battery test set

HIOKI’s BT3554 battery tester series are the perfect tool for maintenance checks of UPS systems, regardless of the battery size and capacity. You can choose a BT3554 model with Bluetooth transmitter or without, including straight probes (9465-10) or L-shaped test probes fitting your requirements to test even hard-to-reach battery installations time-efficiently.

BT3554 Variants – Measuring cable, Bluetooth and Description
Model	Measuring cable	Bluetooth	Description
Model: BT3554-50	Measuring cable: without test cable	Bluetooth: Z3210 required	Description: Battery tester and the carrying case with spare parts. Test leads are required separately.
Model: BT3554-51	Measuring cable: 9465-10 (straight)	Bluetooth: Z3210 required	Description: Battery tester incl. straight test probes 9465-10 for installations with easy access. No Bluetooth transmitter included.
Model: BT3554-52	Measuring cable: L2020 (angled)	Bluetooth: Z3210 required	Description: Battery tester incl. angled test probes L2020 for installations with narrow access space. No Bluetooth transmitter included.
Model: BT3554-91	Measuring cable: 9465-10 (straight)	Bluetooth: Included	Description: Complete set with straight test probes Battery tester, straight probes 9465-10 and Bluetooth transmitter for easy efficient data reporting included.
Model: BT3554-92	Measuring cable: L2020 (angled)	Bluetooth: Included	Description: Complete set with angled test probes Battery tester, angled L2020 probes and Bluetooth transmitter for easy efficient data reporting included.
