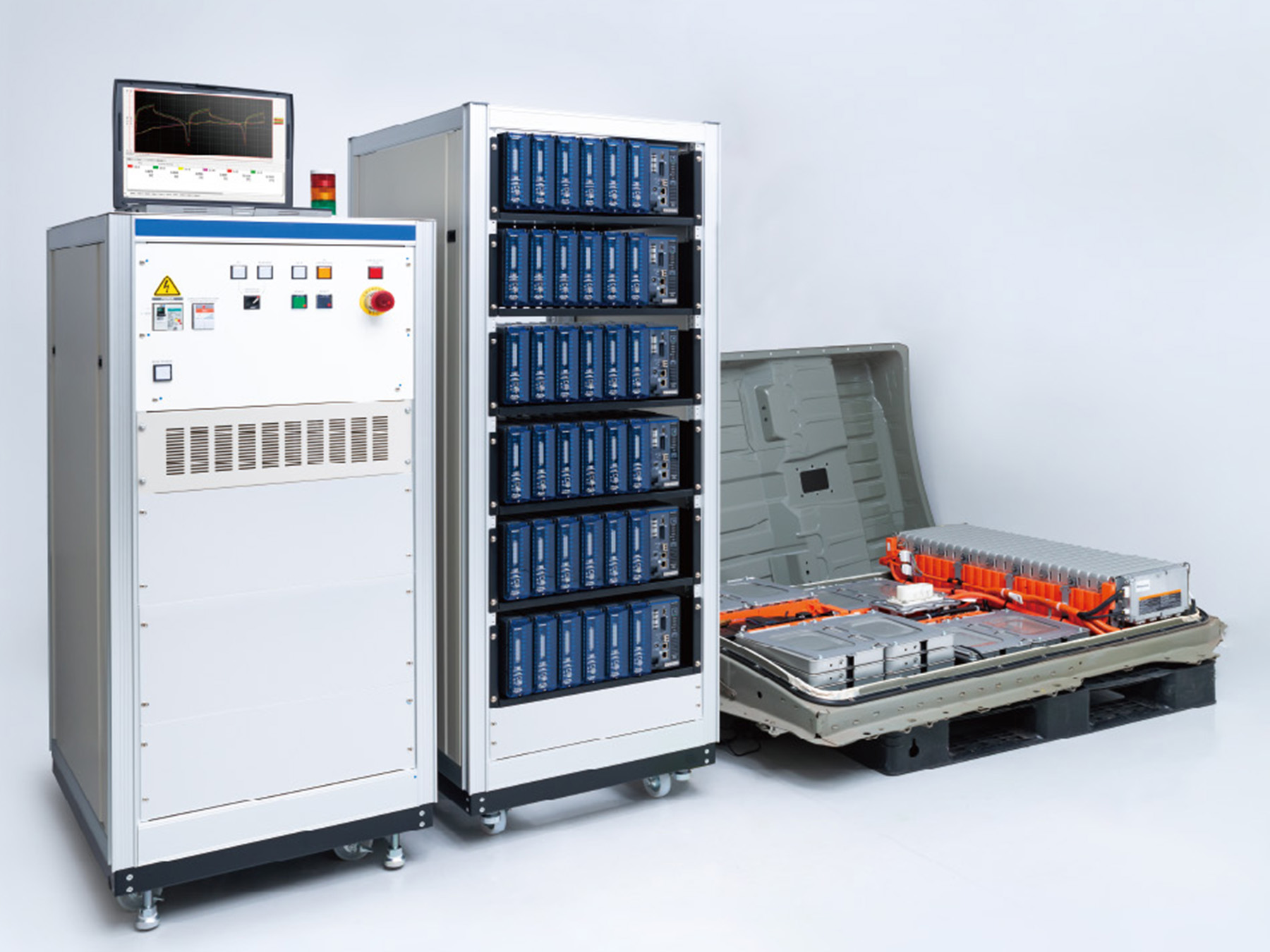

LR8101 - Modular multi-channel Data Logger for system integration
Main unit for system integration applications, modular system, max. 300 voltage/temperature or 12 power channels, for high voltage/high current applications, max. update interval 5 ms, for 19” rack systems
Available stock:
1
Product number:
LR8101
EAN:
4536036015160
Length:
238 mm
Width:
80 mm
Height:
166 mm
Weight:
1.5 kg
Product information LR8101 - Modular multi-channel Data Logger for system integration
Test
-
Product catalog, selection guide for data loggers (English)4,463 KB pdf
-
Product Brochure with Data sheet, Data Logger LR8101, LR8102 (English)4,772 KB pdf
-
Instruction Manual, DATA LOGGER LR8101, LR8102 (English)13,038 KB pdf
-
Product Flyer, LR8101, LR8102 (English)1,616 KB pdf
-
Product Brochure with data sheet, POWER MEASUREMENT MODULE M7103 (for Data Logger LR8101, LR8102) (English)4,446 KB pdf
Related products
M7100
M7100 - Voltage/temperature module for main unit LR8101 or LR8102
Voltage/temperature module for LR8101 and LR8102 Data Logger, 100 VDC channel input, 300 VDC channel to channel isolation, 1500 VDC CATII isolation to earth, 15 channels, max. update interval 5 ms
M7102
M7102 - 30-channel voltage / temperature module for LR810x Data Logger Series
Voltage/temperature module for LR8101 and LR8102 Data Logger, isolation to earth 600 VDC CATII, 30 channels, max. update interval 10 ms, for 19” rack systems
