RM3545-02 - Resistance meter

This product is no longer available.

Specifications may be dated. Please see the successor model.

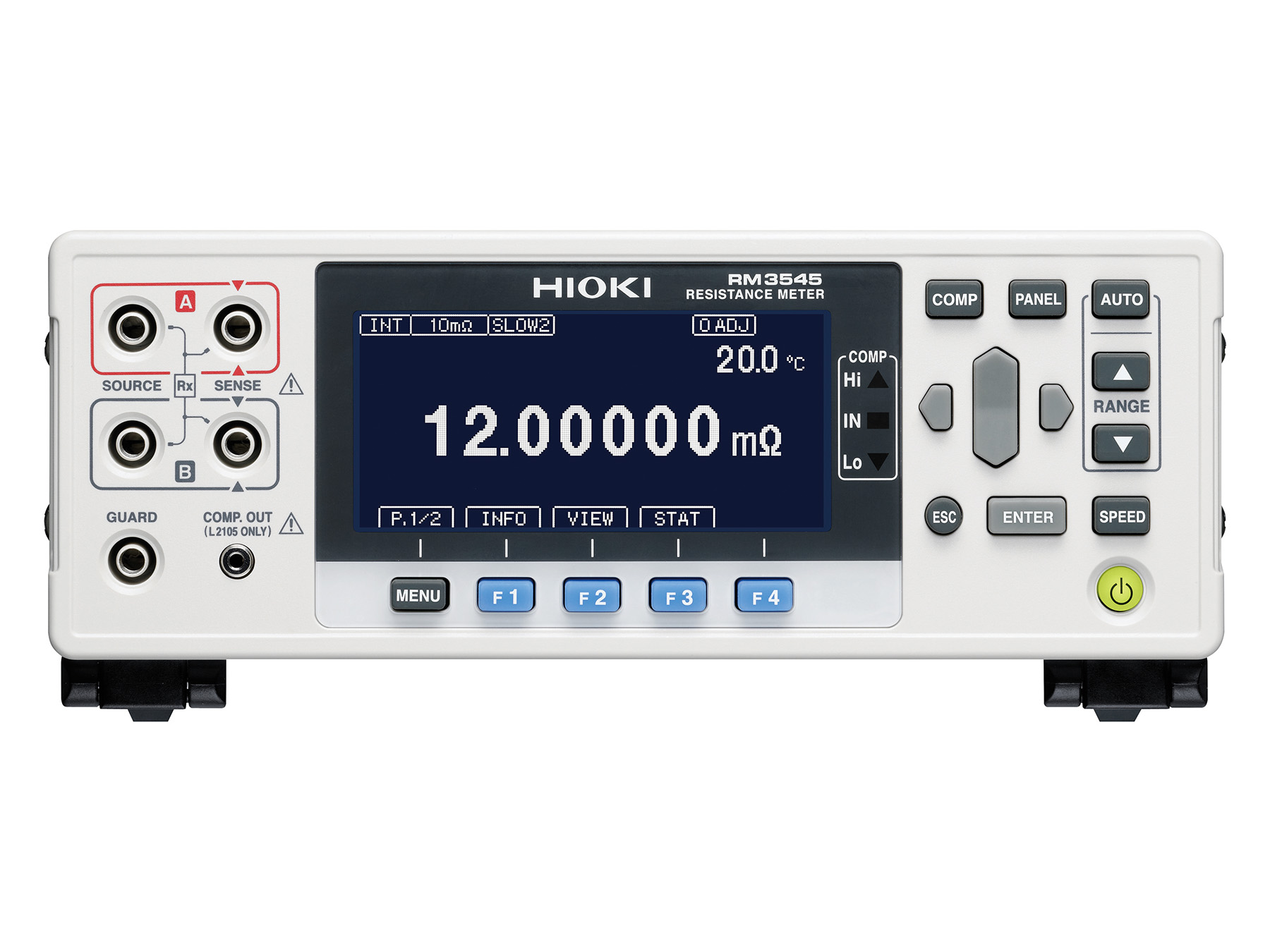

Product information RM3545-02 - Resistance meter

The RM3545-02 provides precise measurements for a wide range of applications in electronics manufacturing and testing. It uses the 4-terminal measurement method with a constant current source to perform accurate resistance measurements. It is suitable for measuring electrical components such as motors, transformers, relays, switches, and wire connections.

Additionally, it supports temperature measurement using thermistors, which is particularly important for applications requiring temperature compensation. With its high resolution and precise measurement accuracy, it is equally effective on production lines and in research laboratories.

Technical details:

Extremely high measurement accuracy of 0.006%
Expanded measurement range from 0.00 μΩ to 1200 MΩ
Supports higher measurement currents up to 1 A. D/A output for converting resistance values into DC voltage

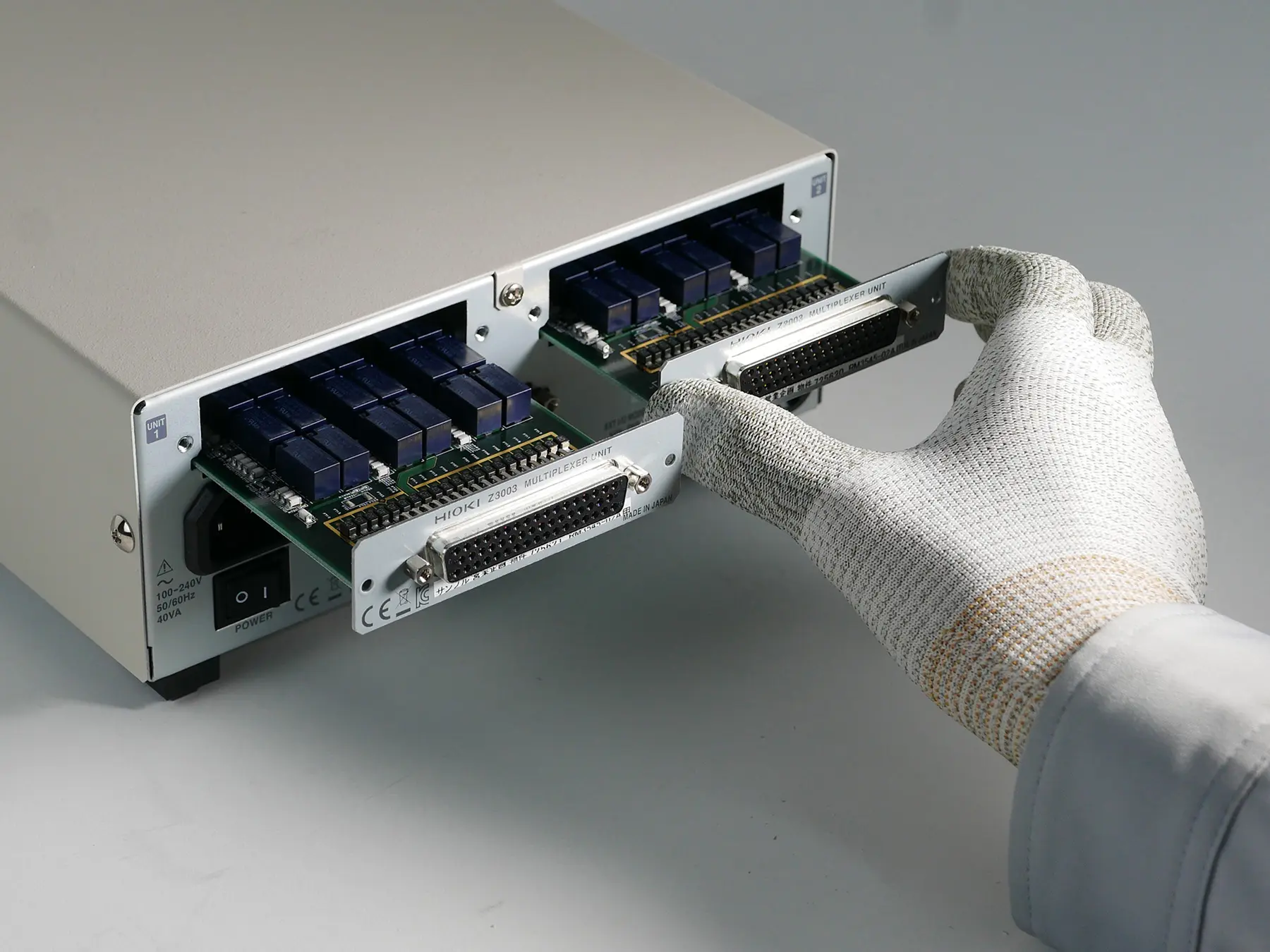

Support for multiplexer units (up to 42 channels with the Z3003 unit)
Automatic and step-by-step scanning for detailed test results

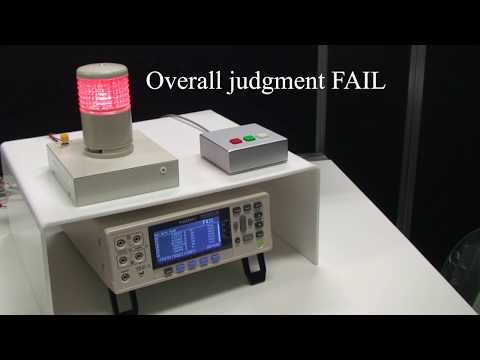

Ideal for demanding and precise measurements in research and advanced production. Comparator function for pass/fail assessments
Scaling function for converting resistance values into physical quantities
Temperature compensation function for precise measurements despite temperature fluctuations

Optional accessories

L2100

L2100 - PIN TYPE LEAD

L2100 - Pin Type Lead The L2100 is a pin type lead designed for high voltage battery measurements with robust insulation and long reach for precise readings. Technical Details: Dimensions: A: 300 mm, B: 172 mm, L: 1400 mm Max voltage: 1000 V DC Compatibility: BT3562, BT3563, BT3564

€398.00*

View product

9772-90

9772-90 - Tip pin

The Hioki 9772-90 is the replacement measurement tip for the Hioki 9772 test lead. Technical Detail: Coaxial pin, diameter: 1.8 mm Contact surface: gilded

€38.00*

View product

L2101

L2101 - CLIP TYPE LEAD

The L2101 clip type lead features Kelvin clamps, providing precision measurements for resistance testing, designed specifically for the RM3544 and RM3545 series. Technical Details: Length: A: 250 mm, B: 84 mm, L: 1.5 m Compatibility: RM3544, RM3545 series

€168.00*

View product

9770-90

9770-90 - TIP PIN

The Hioki 9770-90 is the replacement measurement tip for the Hioki 9770. Technical Detail: Coaxial pin, diameter: 1.8 mm Contact surface: gilded

€68.00*

View product

L2102

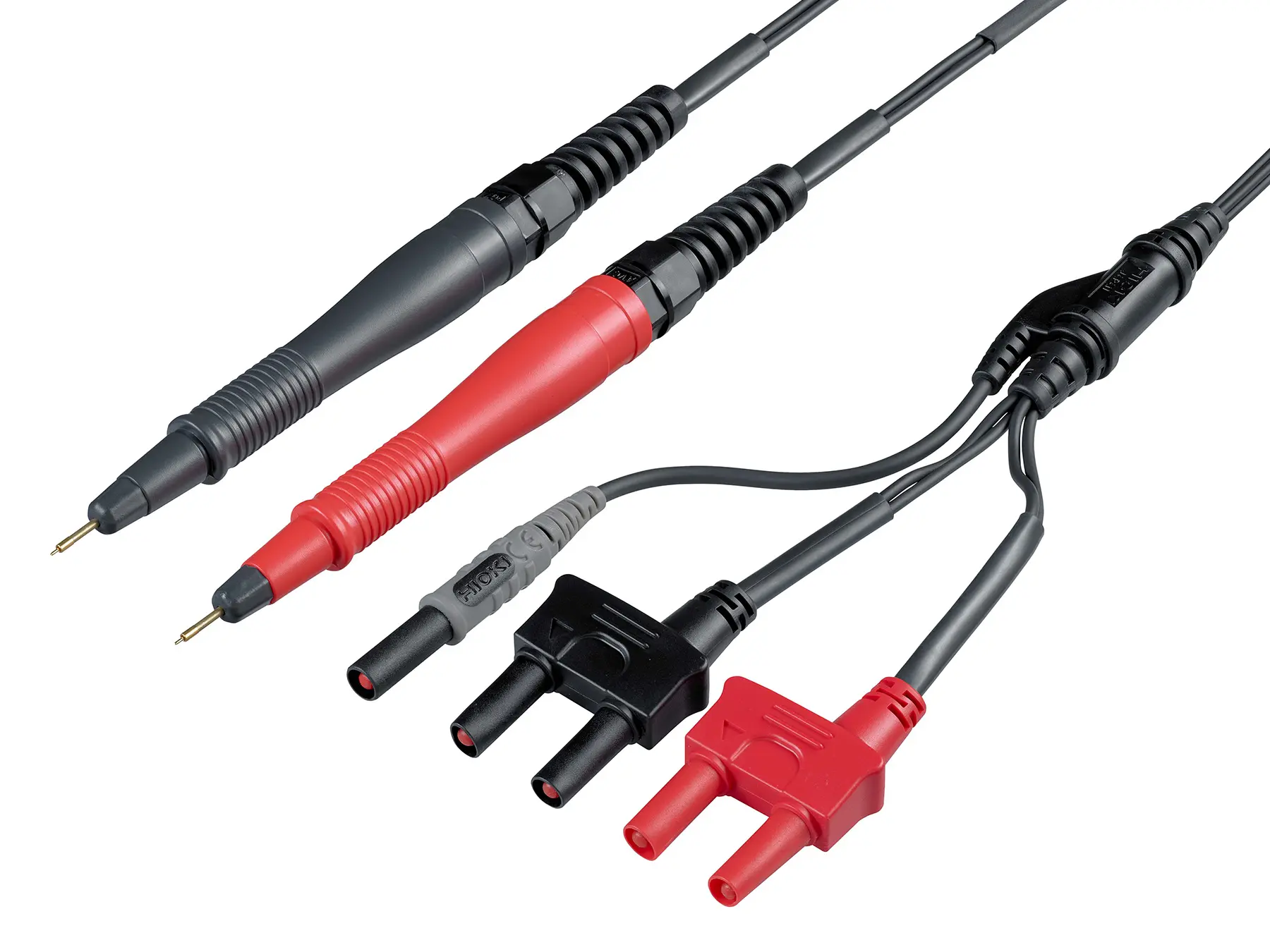

L2102 - PIN TYPE LEAD

The L2102 Pin Type Lead features a gilded, spring contact needle, offering reliable contact for precise measurement, suitable for the RM3544 and RM3545 series. Technical Details: Dimensions: A: 250 mm, B: 178 mm, L: 1.5 m Compatibility: RM3544, RM3545 series

€338.00*

View product

9771-90

9771-90 - TIP PIN

The Hioki 9771-90 is the replacement measurement tip for the Hioki 9771. Technical Detail: Parallel pin, spacing: 0.2 mm Contact surface: gilded"

€148.00*

View product

L2103

L2103 - PIN TYPE LEAD

The L2103 pin type lead is designed for accurate testing applications, compatible with the RM3544 and RM3545 series. Technical Details: Dimensions: A: 250 mm, B: 176 mm, L: 1.5 m Compatibility: RM3544, RM3545 series

€458.00*

View product

L2104

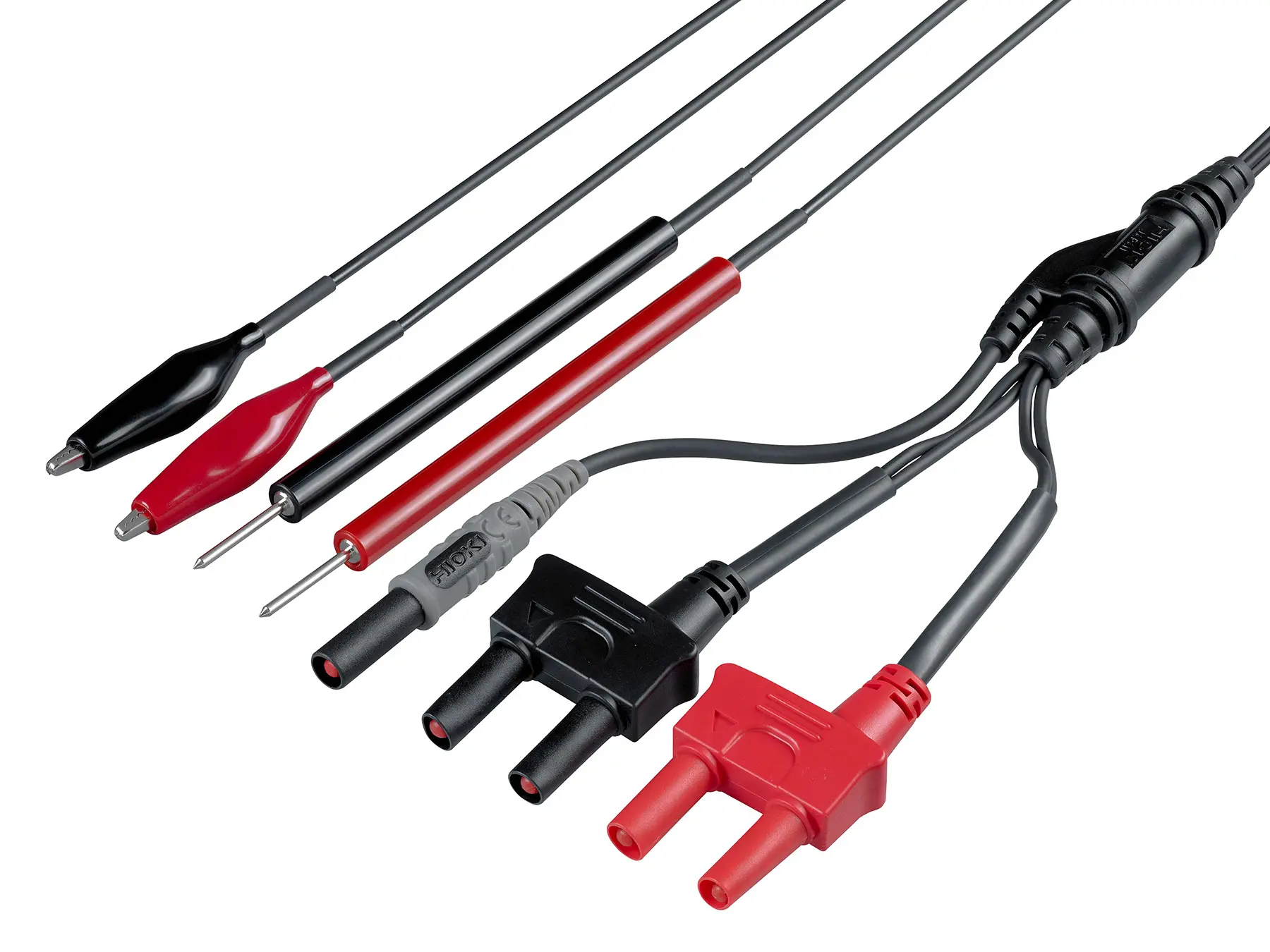

L2104 - 4-Terminal Lead

4-Terminal Lead The L2104 - 4-Terminal Lead is designed for precision measurements, offering durable construction for use with the RM3544 and RM3545 series. Technical Details: Dimensions: A: 280 mm, B: 149 mm, L: 1.5 m Compatibility: RM3544, RM3545 series

€268.00*

View product

Z2001

Z2001 - Temperature Sensor

The HIOKI Z2001 temperature sensor is designed for use with the HIOKI RM3545 series and similar products, delivering reliable temperature measurements with a 1.75 m cable.

€78.00*

View product

L2105

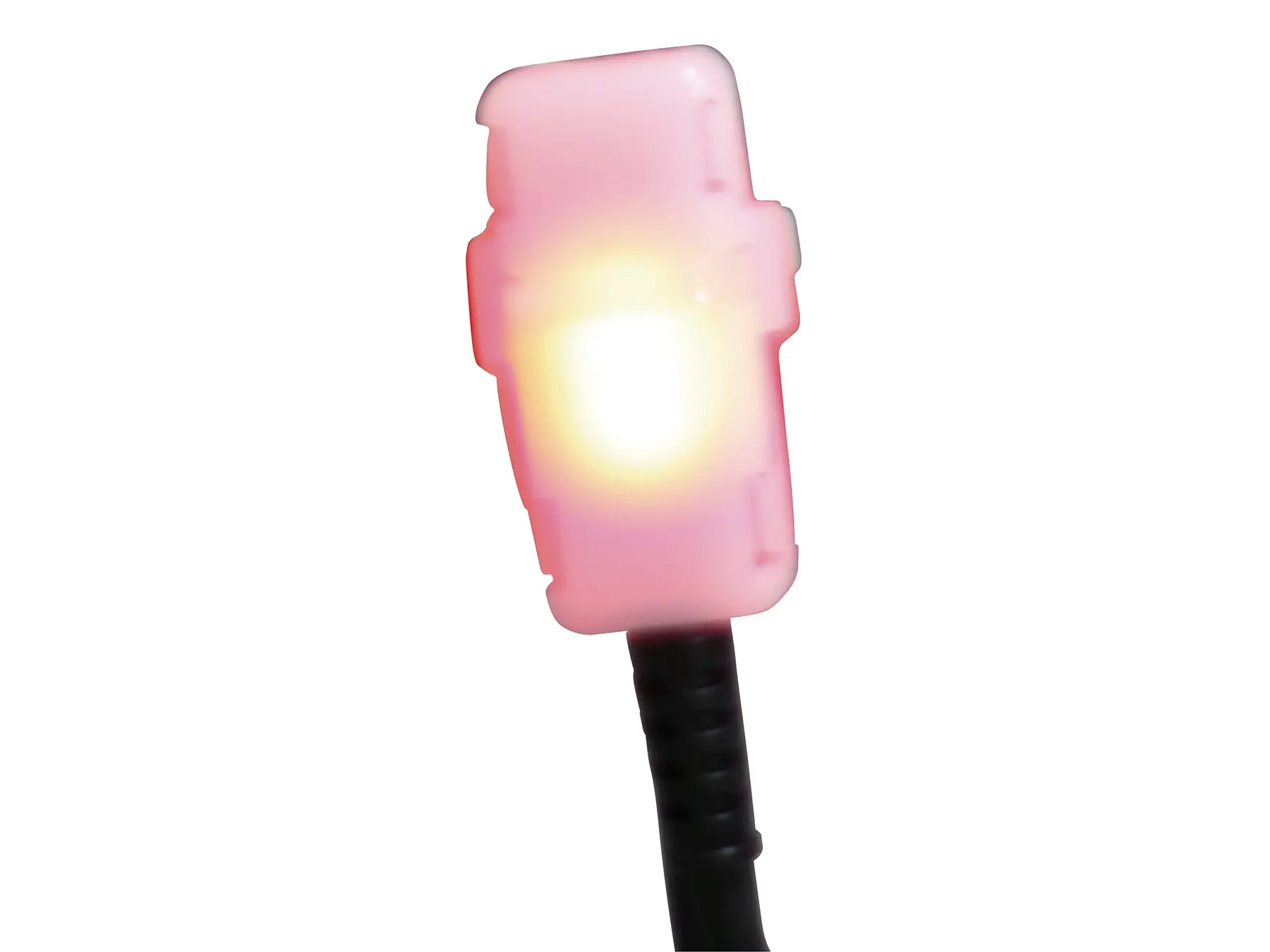

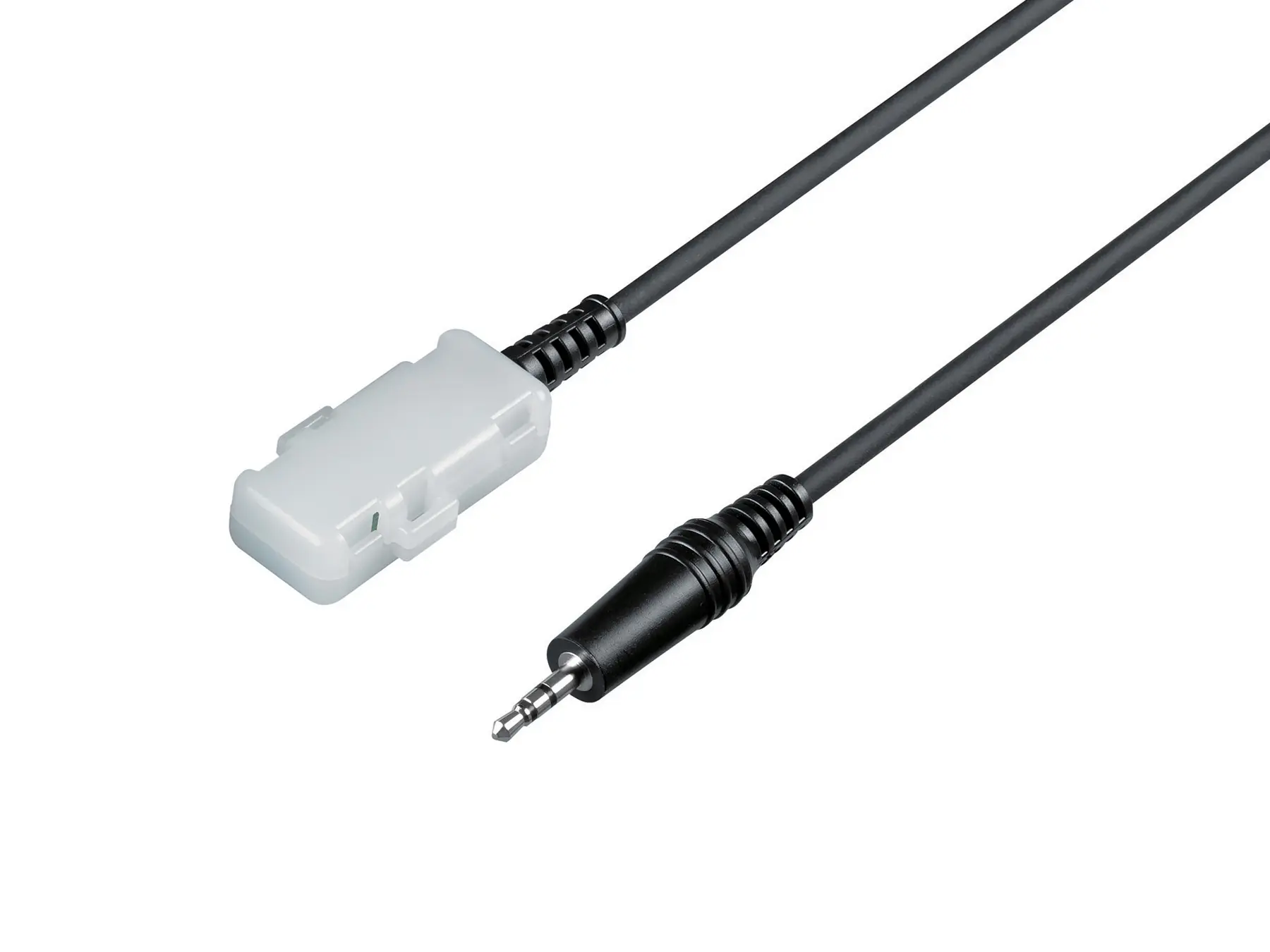

L2105 LED COMPARATOR ATTACHMENT

The Hioki L2105 LED Comparator Attachment is designed for efficient judgment indication when connected to the COMP.OUT jack of compatible instruments. It allows users to easily check measurement results from a distance, with the LED indicator showing green for acceptable (IN) results and red for high (Hi) or low (Lo) readings.

€68.00*

View product

Z3003

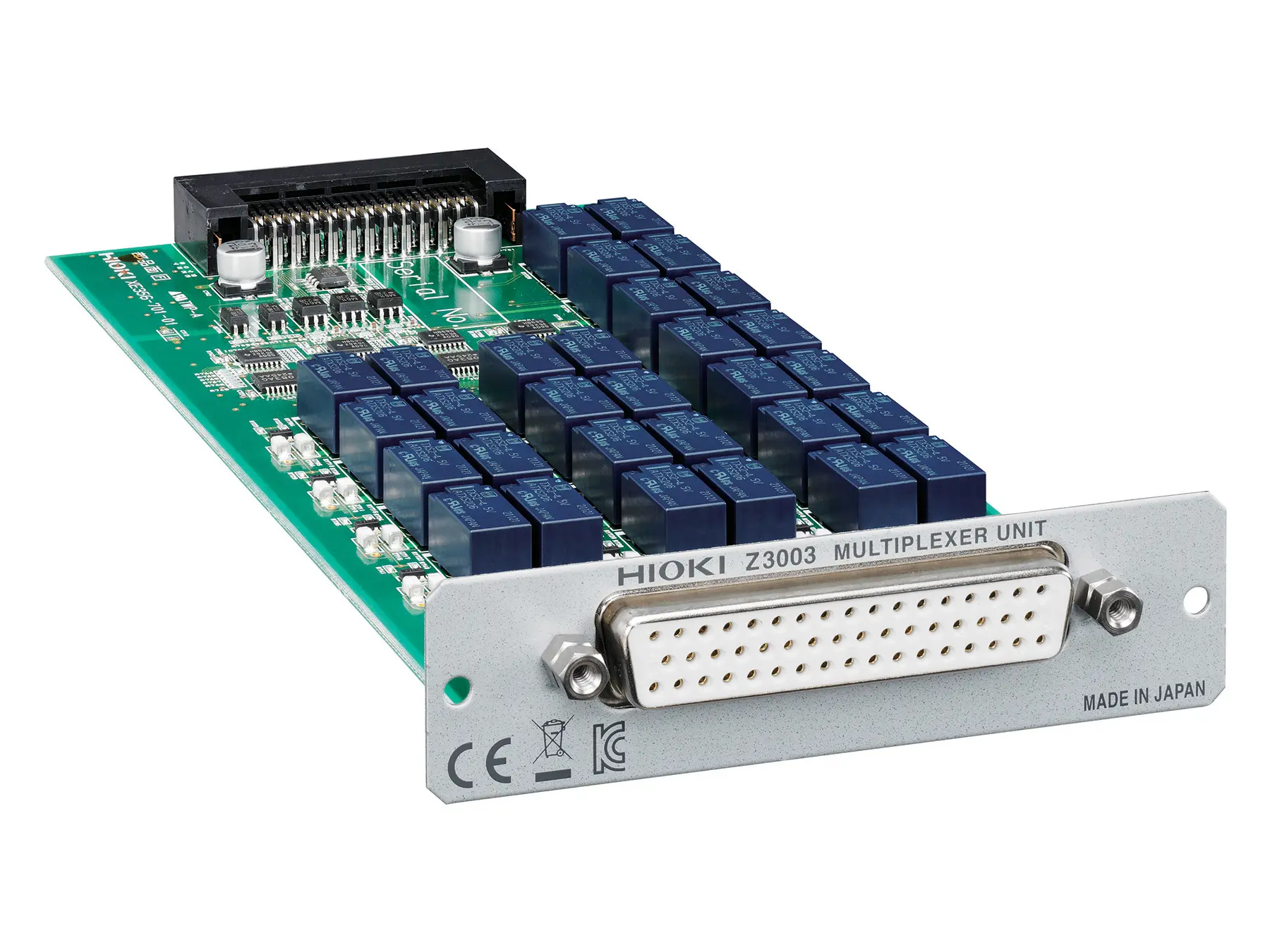

Z3003 - Multiplexer Card for RM3545A-2, 10 Channels (4-wire)

The HIOKI Z3003 multiplexer unit is a versatile module designed for multipoint measurements by freely combining measurement terminals.

€798.00*

View product
