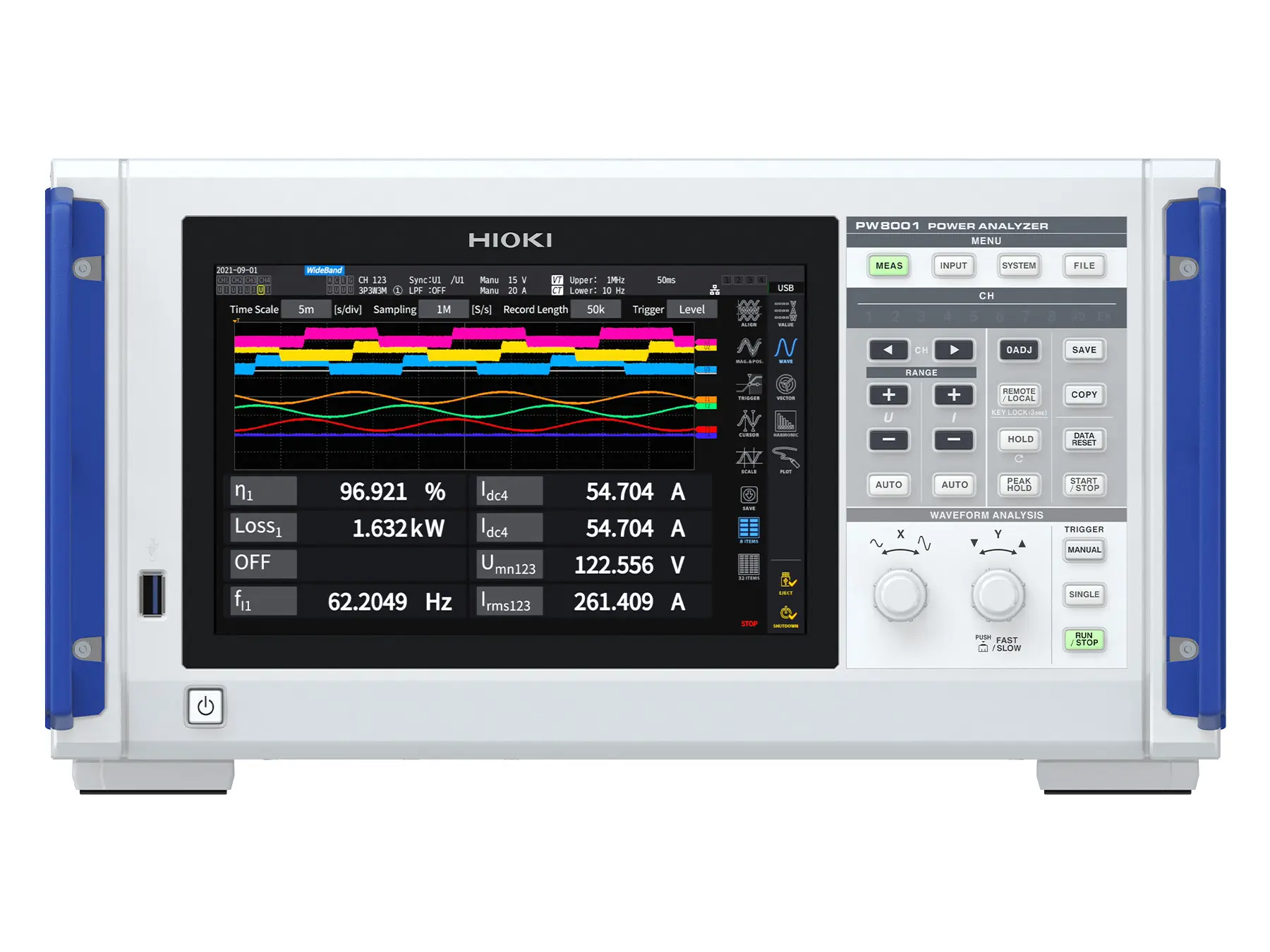

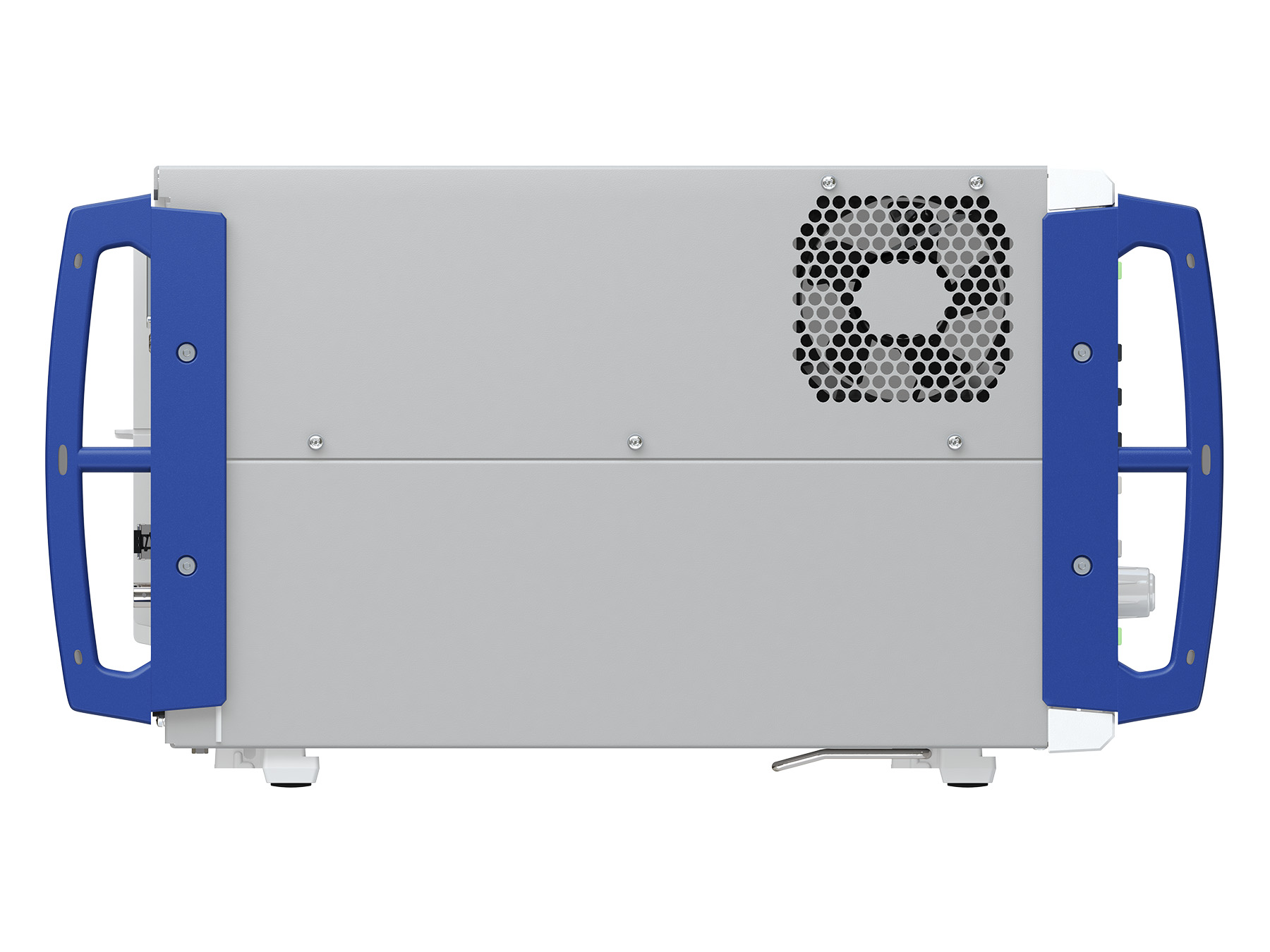

PW8001 - Modular 8-channel High Precision Power Analyzer

Modular high precision power analyzer, up to 8 channels, ±0.03% basic accuracy, 15 MHz sampling rate, 18-bit A/D conversion, automatic phase shift correction for Hioki current sensors, 1 ms data update rate, CMRR 110 dB @ 100 kHz

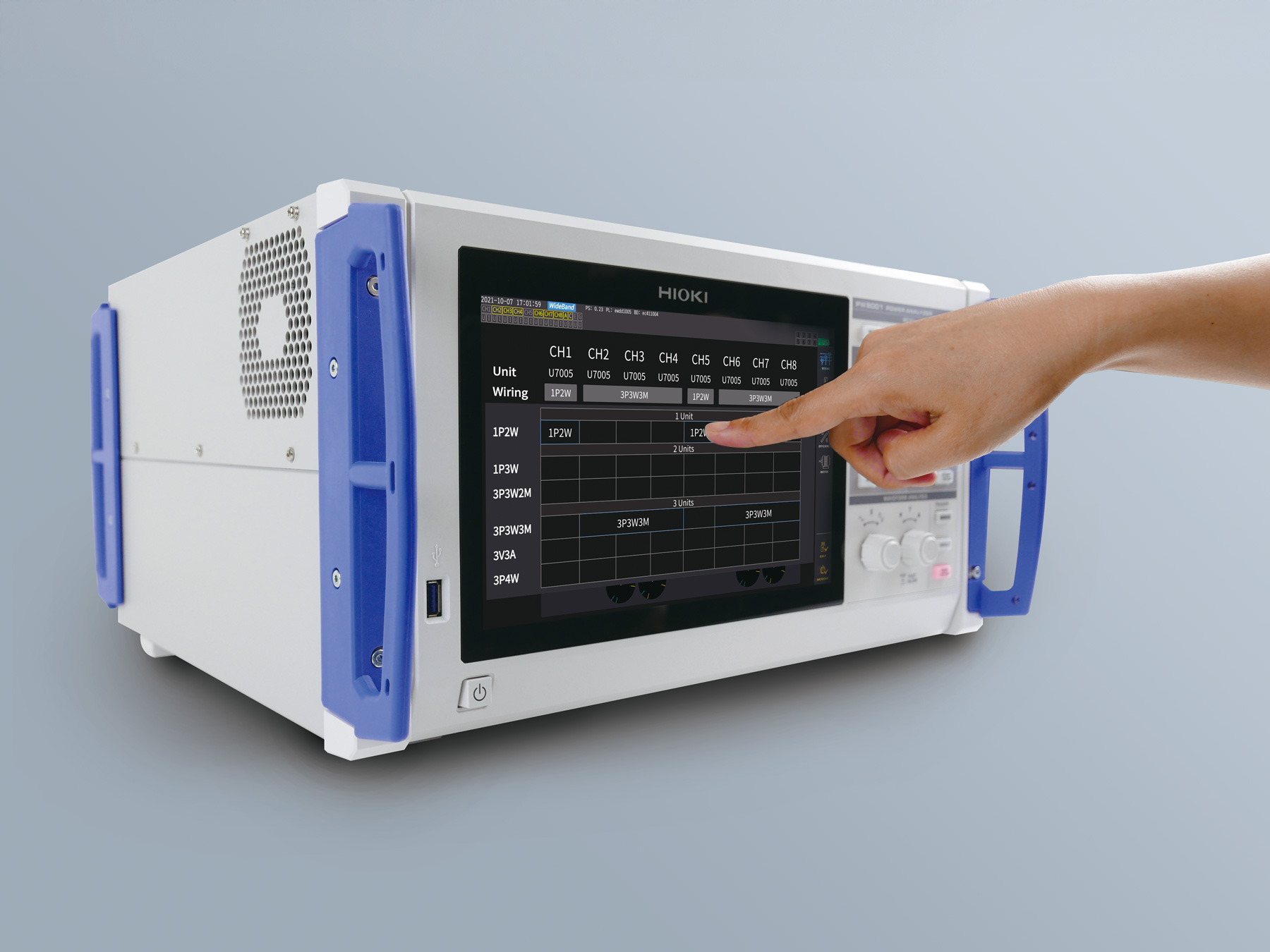

HIOKI PW8001 high precision power analyzer for power converter and inverter efficiency analysis

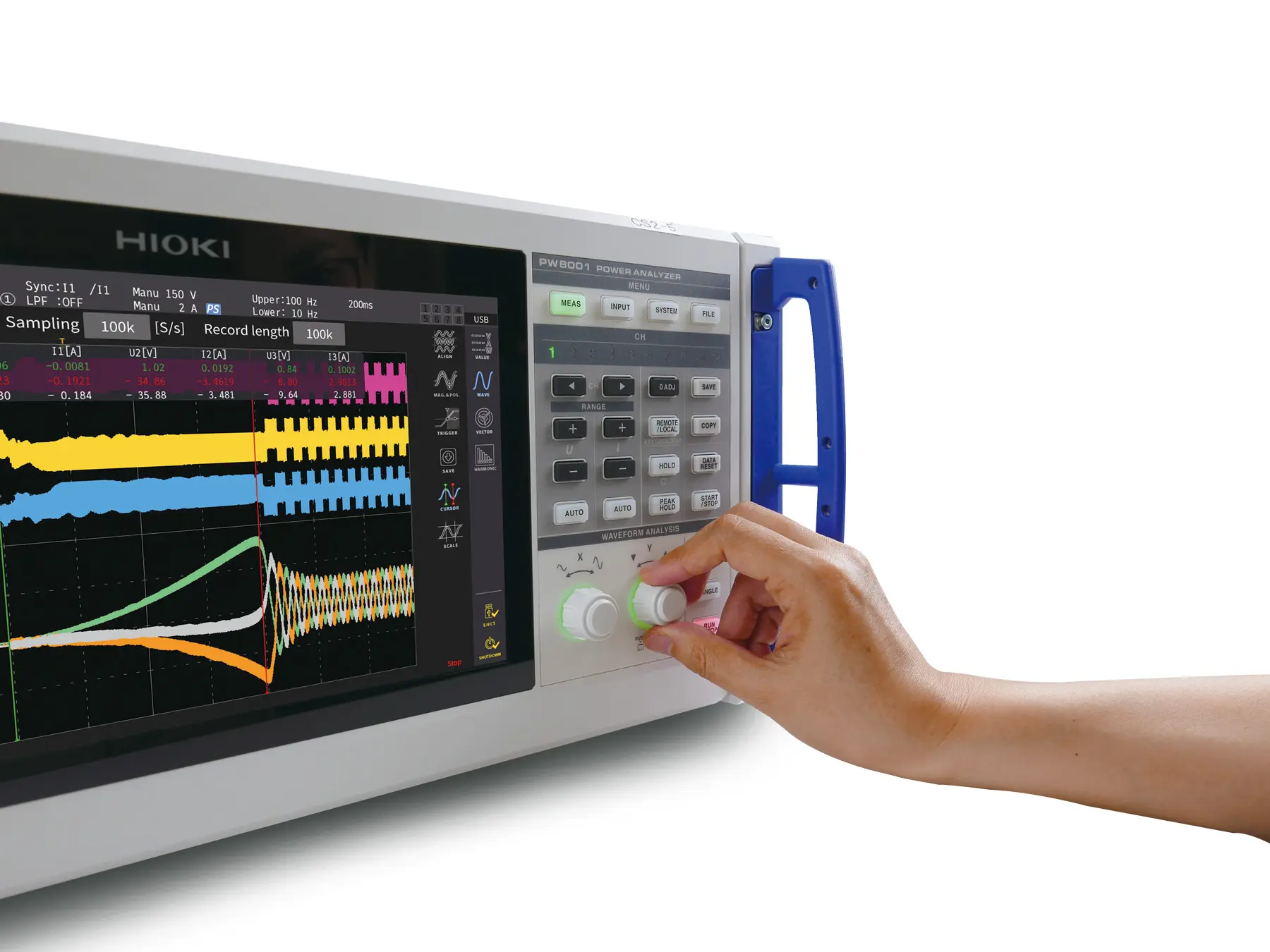

HIOKI PW8001 high precision power analyzer 8 power channels combined with motor analysis

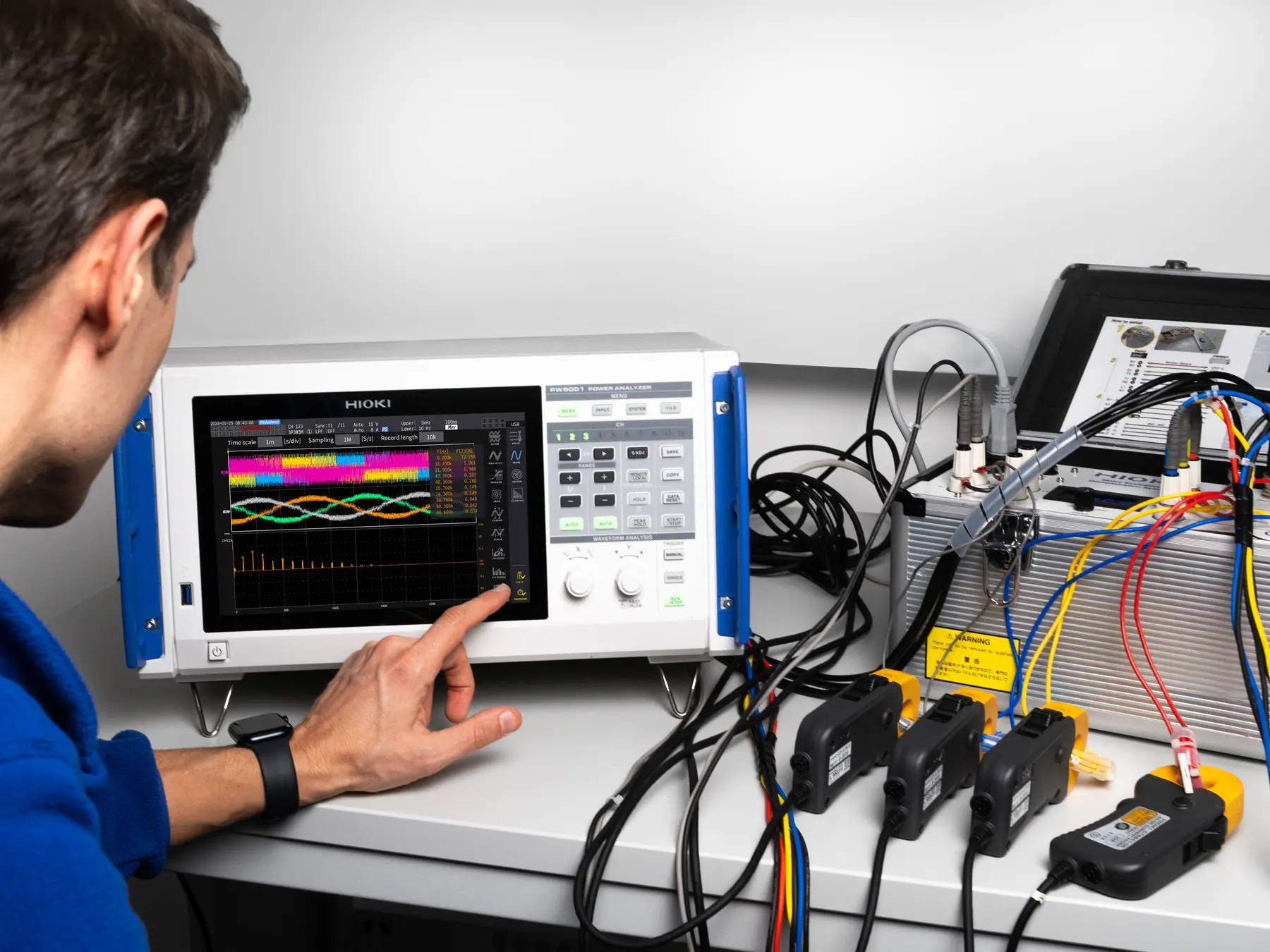

HIOKI PW8001 high precision power analyzer plug and play connectivity with HIOKI current sensors

This video is hosted by YouTube. By clicking “Allow video”, you activate Marketing cookies and consent to data transfer to YouTube.

This video is hosted by YouTube. By clicking “Allow video”, you activate Marketing cookies and consent to data transfer to YouTube.

HIOKI PW8001 high precision power analyzer for power converter and inverter efficiency analysis
HIOKI PW8001 high precision power analyzer 8 power channels combined with motor analysis
HIOKI PW8001 high precision power analyzer plug and play connectivity with HIOKI current sensors
PW8001 - Modular 8-channel High Precision Power Analyzer
PW8001 - Modular 8-channel High Precision Power Analyzer

Lorem Ipsum dolor sit amet

Lorem ipsum dolor sit amet, consetetur sadipscing elitr, sed diam nonumy eirmod tempor invidunt ut labore et dolore magna aliquyam erat, sed diam voluptua. At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit amet. Lorem ipsum dolor sit amet, consetetur sadipscing elitr, sed diam nonumy eirmod tempor invidunt ut labore et dolore magna aliquyam erat, sed diam voluptua. At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit amet.

Preis anfragen

€43,263.00*

PW8001 - Modular 8-channel High Precision Power Analyzer
Product number: PW8001
EAN: 4536036013067
Length: 430 mm
Width: 362 mm
Height: 221 mm
Weight: 14 kg

Product information PW8001 - Modular 8-channel High Precision Power Analyzer


Key Specifications
  • Basic power accuracy ±0.03%
  • 8 power channels combined with motor analysis
  • Excellent noise resistivity of 110 dB @ 100 kHz
  • 5 MHz frequency measurement band for power
  • Stable and accurate measurement at 1 ms data update rate

Unique Advantages

  • 8 power channels in combination with motor analysis for dual drivetrain analysis
  • Unique power range with 2 A to 2 kA high accuracy HIOKI current sensors
  • Plug & Play connectivity with HIOKI current sensors
  • Automatic Phase Shift Correction secures accurate high-frequency power measurement
  • Visualize high-frequency loss with Power Spectrum Analysis measurement

Typical Applications

  • R&D and production line testing of high efficiency power converters and inverters
  • Loss measurement of transformers and other inductive components under load
  • Motor efficiency measurement

Detailed Product Overview

The HIOKI PW8001 Power Analyzer is a state-of-the-art measurement instrument designed for the most demanding power analysis tasks, providing precise measurement results when evaluating efficiency of latest high accuracy electrical devices and systems. The PW8001 has 8 slots for power input units, which all can be used in combination with the motor analysis function.

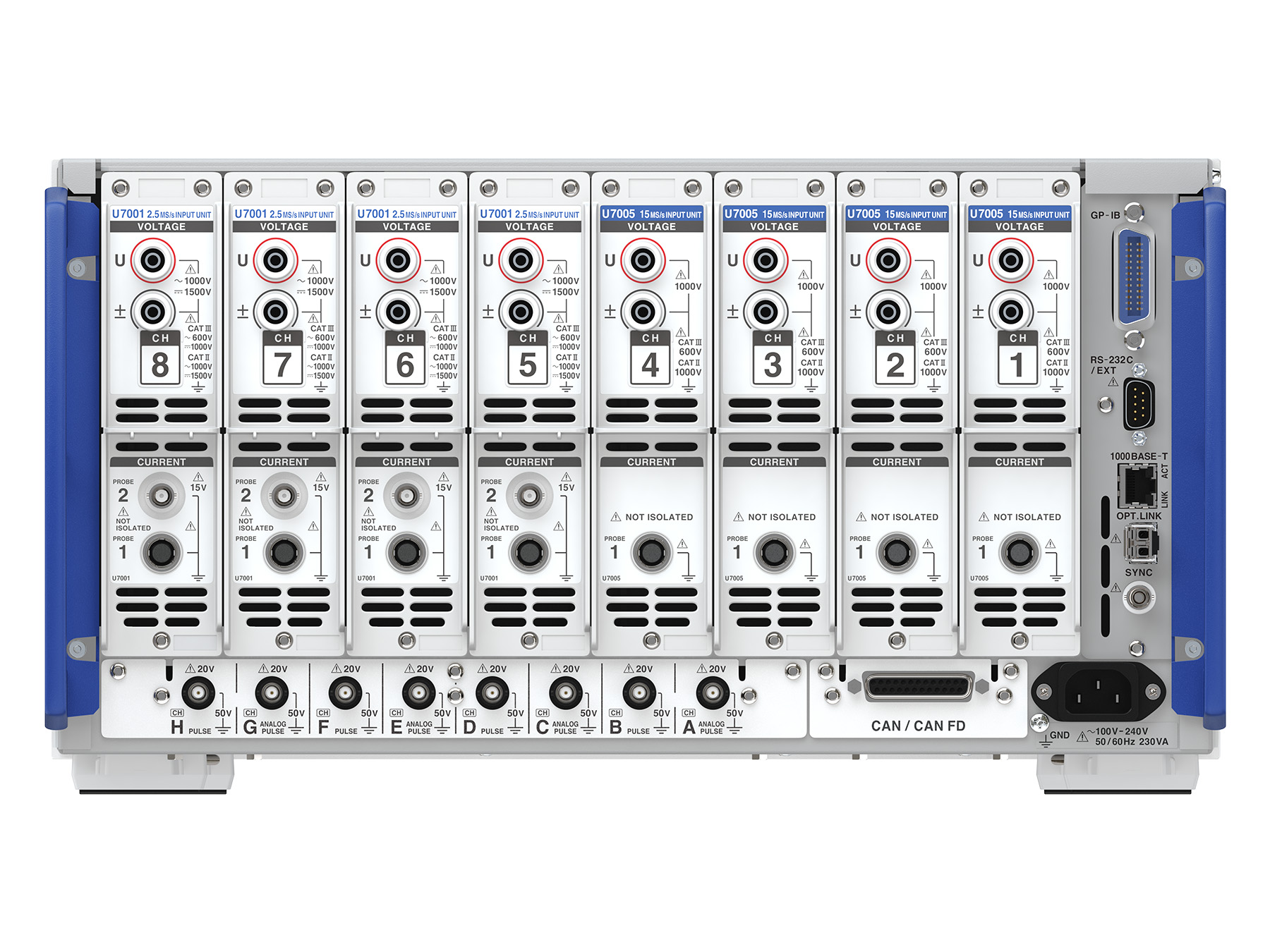

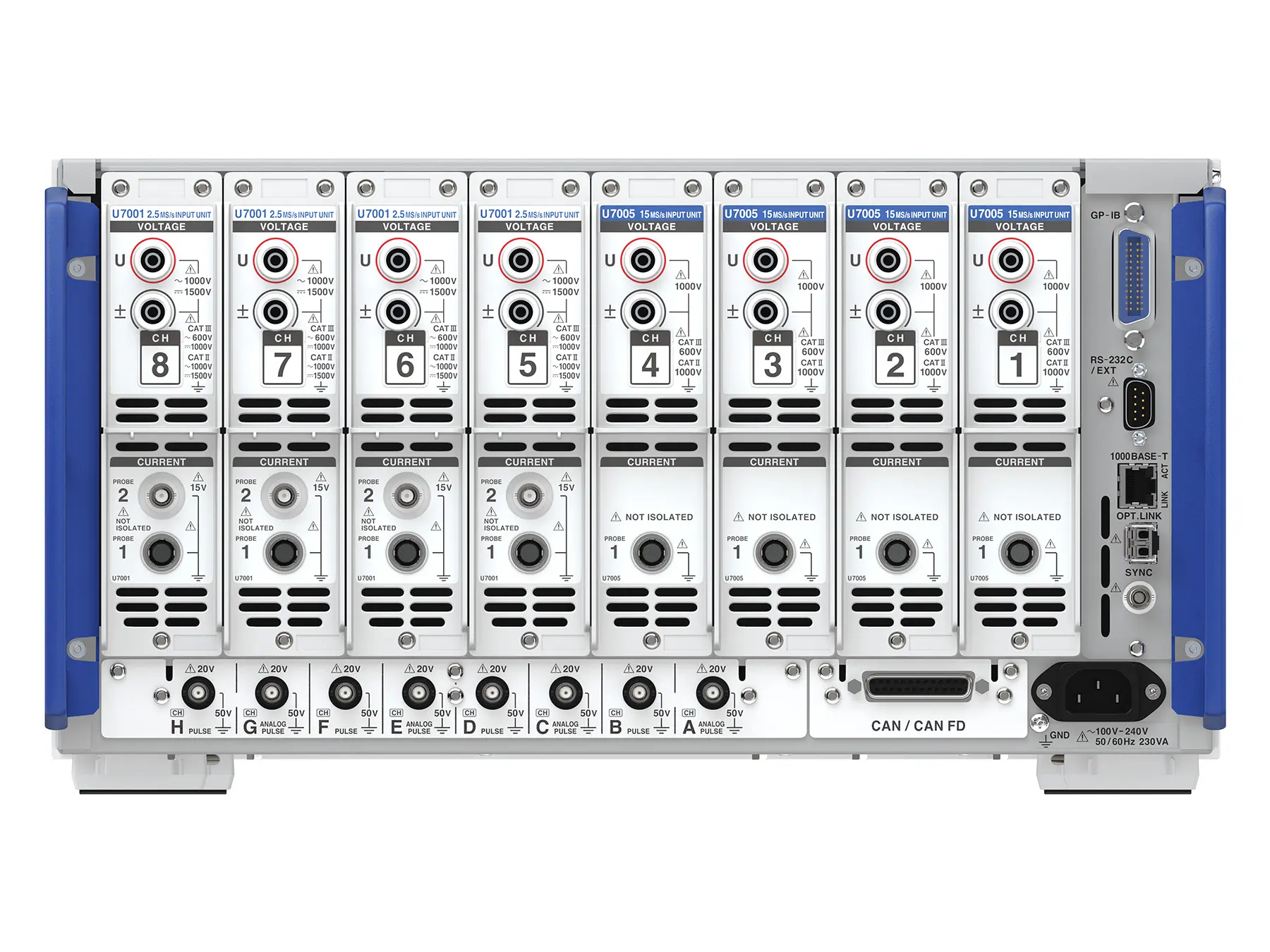

For the configuration of the PW8001, two types of input units are available that can freely be combined in one instrument according to the application requirements.

High-Precision Input Units for Flexible Configurations

The U7005 High Bandwidth input unit offers ultimate precision with ±0.03% basic accuracy, a sampling frequency of 15 MHz, 18-bit A/D conversion and a maximum input voltage of 1000 VAC. It is suitable for applications such as efficiency measurements of SiC and GaN based inverter motor drives, and accurate inductor loss measurement of inductors under load. Excellent resistivity for external noise of 110 dB at 100 kHz, ensure accurate and stable results even in the proximity to high frequency power switching semiconductors.

For high-voltage applications, the U7001 input unit provides ±0.07% basic accuracy, a maximum input voltage of 1500 VDC, a sampling frequency of 2.5 MHz, 16-bit A/D conversion and a maximum voltage to ground of 1500 VDC CAT II. It is a suitable unit for applications which need less bandwidth, such as testing of the efficiency of industrial motor drives using IGBTs, or wind turbines and PV power converters.

Combined with HIOKI’s extensive lineup of high-accuracy and high-bandwidth current sensors, probes and direct connection current boxes, the PW8001 offers a unique and comprehensive solution for reliably measuring applications from minute electronic devices to large-scale power systems.

Automatic Phase Shift Correction and Power Spectrum Analysis

The PW8001 power analyzer and the current sensors are developed and produced by HIOKI, making the advanced automatic phase shift correction function possible. This ensures accurate phase angle measurement between the voltage and current, even at high frequencies and low power factors.

The PW8001 offers the unique Power Spectrum Analysis function. While the traditional FFT function determines the harmonics based on the fundamental frequency, limiting the frequency range, this new function covers the entire frequency spectrum of the analyzer. The Power Spectrum Analysis function delivers quick visibility into the high frequency power, providing developers with valuable data for further system efficiency improvements.

Advanced Functions and Expandability

Other advanced functions like wideband harmonic analysis, and motor analysis, ensure precise and reliable power analysis results for a wide range of applications in the power electronics industry, such as the development of high efficiency power converters, electrical drivetrains and electrical motors.

The 1 ms update rate enables high-speed data refresh, allowing precise detection and analysis of rapid power fluctuations, such as those occurring during battery charging or discharging in EVs. This feature ensures unprecedented updates without compromising on measurement accuracy.

The optical link function allows the connection of two PW8001 power analyzers to increase the maximum number of measurement channels to 16. It enables synchronized power measurements and efficiency calculation from multiple inputs, optimizing measurement setup and eliminating timing differences in data collection because the sampling of all inputs is synchronized.

More than specs – find more details here: Measure Power with Precision – Across All Applications
  • Mains cable
  • Operating instructions
  • GENNECT One (PC applications) CD
  • D-Sub-Anschluss 25-polig ×1 (nur PW8001-02, -05, -12, -15)
