1. AC Power Clamps
The BT3554 Battery Tester Series
Two voltage ranges of 6V and 60V and four resistance ranges from 3 mΩ to 3 Ω make the BT3554 Battery Tester Series the perfect tool for maintenance checks of VRLA batteries, regardless of the battery size and capacity. A complete measurement takes less than two seconds. This is time-efficient and differently shaped probe leads enable convenient access of all installations making this battery tester perfect for use in difficult to reach and confined areas. Choose your model with straight or L-shaped test probes, with Bluetooth® or without.
CM3286-50

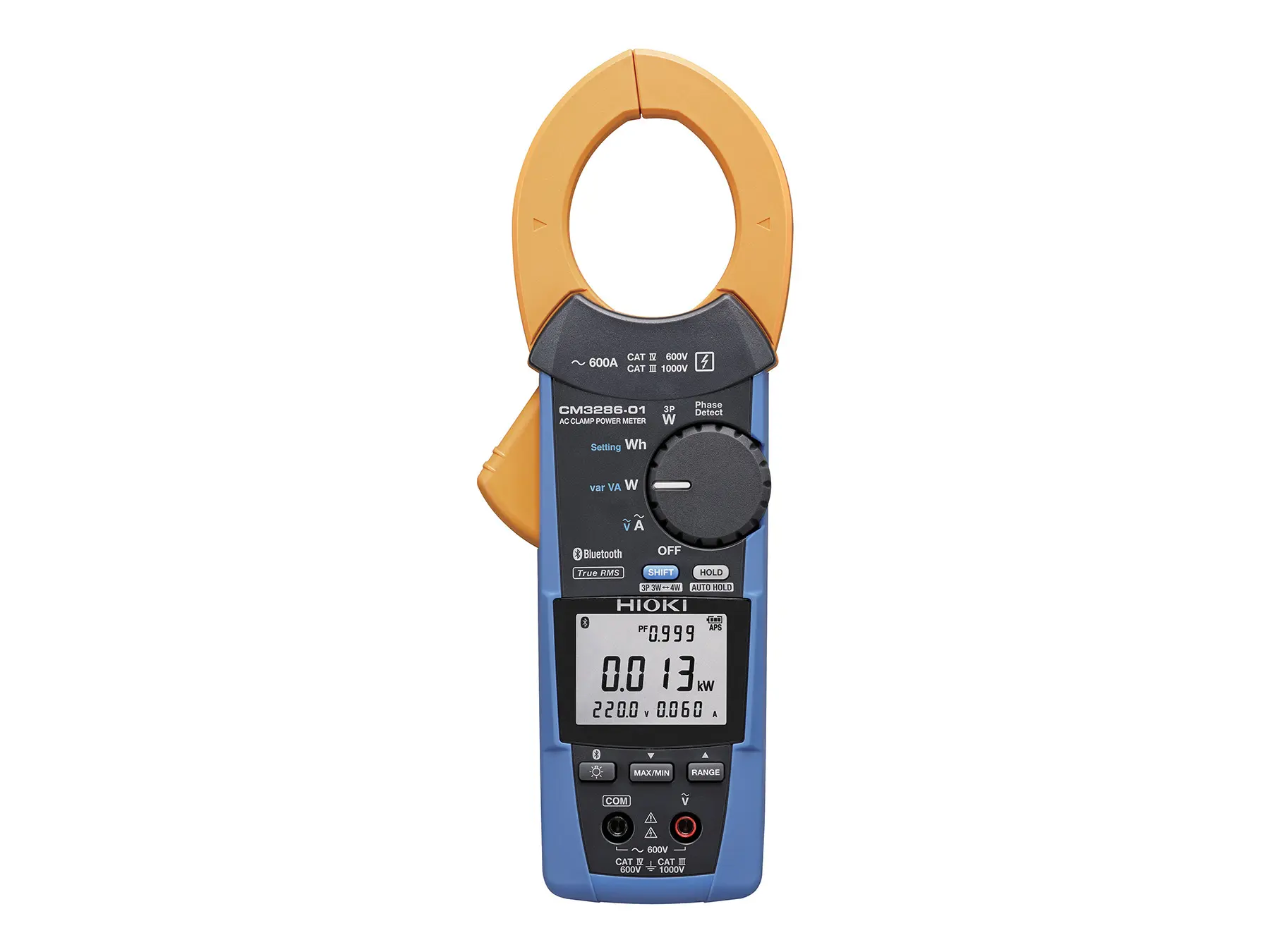

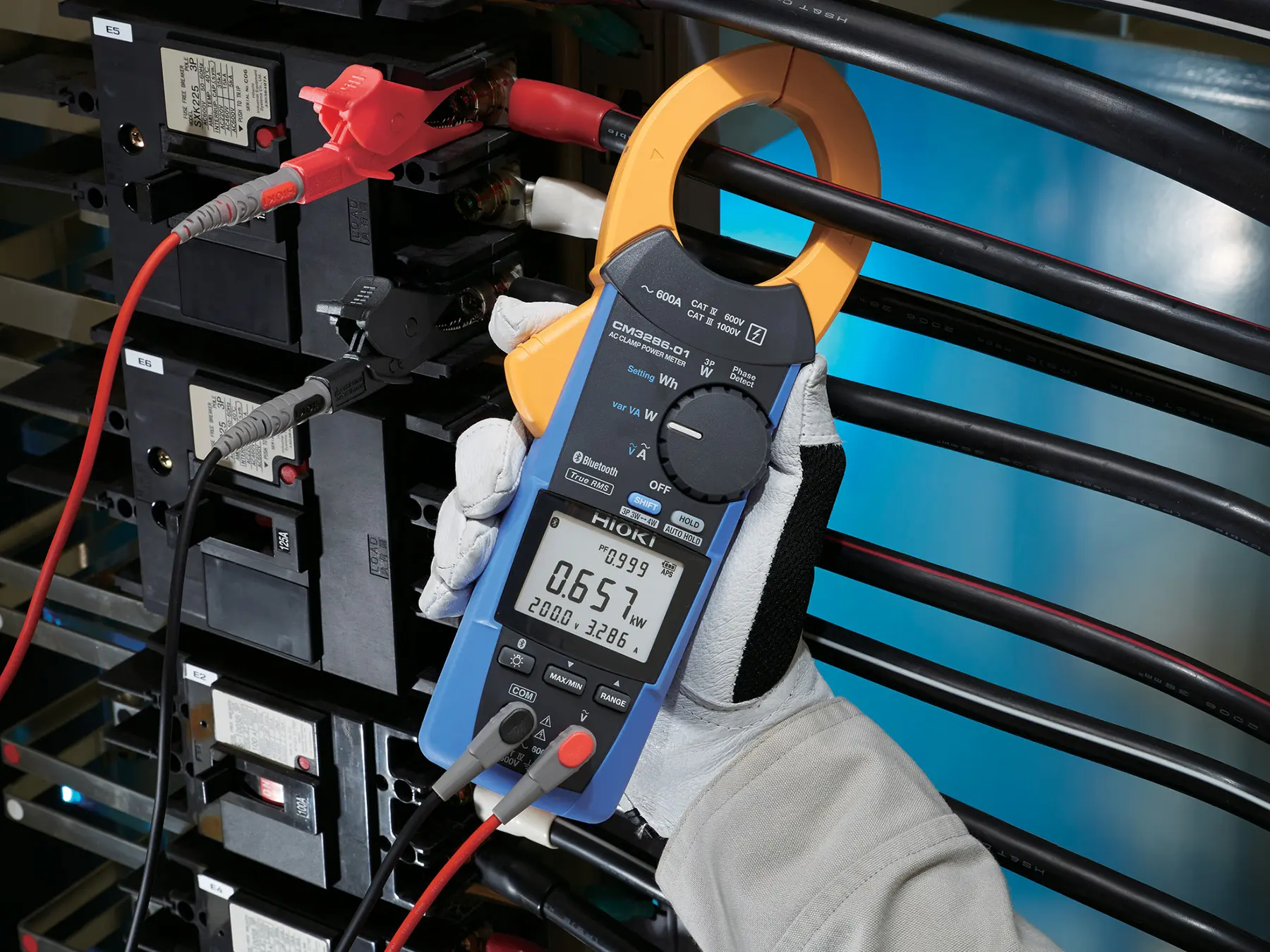

CM3286-50 - AC power clamp
The CM3286-50 AC Clamp Power Meter is designed to measure AC current, voltage, and power with a broad range, from 5 W to 360 kW, and currents from 60 mA to 600 A. It offers quick and accurate readings with true RMS measurement and can measure simple integral power consumption and phase sequence. The device features a large jaw diameter of 46 mm, allowing it to measure large-diameter cables, and its backlit display ensures easy reading even in dimly lit environments.With Bluetooth® communication (available via the optional Z3210 wireless adapter), data can be easily transferred for analysis. This versatile tool is ideal for applications ranging from manufacturing plants to household measurements. Technical Details: Model: CM3286-50 Current Measurement Range: 60 mA to 600 A AC Voltage Measurement Range: 80 V to 600 V AC Power Measurement Range: o Single-phase: 5 W to 360 kW o Balanced three-phase 3-wire: 20 W to 623.5 kW o Balanced three-phase 4-wire: 40 W to 1080 kW Frequency Range: 45 Hz to 999.9 Hz Maximum Rated Voltage to Ground: 600 V CAT IV, 1000 V CAT III Operating Temperature: -25°C to 65°C Jaw Diameter: 46 mm Dimensions: 65 mm (W) × 241 mm (H) × 35 mm (D) Weight: 450 g Power Supply: 2 × LR03 Alkaline batteries (25 hours continuous use) Optional Wireless Adapter: Z3210 for Bluetooth® connectivity
Choose your VRLA battery test set
HIOKI’s BT3554 battery tester series are the perfect tool for maintenance checks of UPS systems, regardless of the battery size and capacity. You can choose a BT3554 model with Bluetooth transmitter or without, including straight probes (9465-10) or L-shaped test probes fitting your requirements to test even hard-to-reach battery installations time-efficiently.
| Model | Measuring cable | Bluetooth | Description |
|---|---|---|---|
| Model: BT3554-50 | Measuring cable: without test cable | Bluetooth: Z3210 required | Description: Battery tester and the carrying case with spare parts. Test leads are required separately. |
| Model: BT3554-51 | Measuring cable: 9465-10 (straight) | Bluetooth: Z3210 required | Description: Battery tester incl. straight test probes 9465-10 for installations with easy access. No Bluetooth transmitter included. |
| Model: BT3554-52 | Measuring cable: L2020 (angled) | Bluetooth: Z3210 required | Description: Battery tester incl. angled test probes L2020 for installations with narrow access space. No Bluetooth transmitter included. |
| Model: BT3554-91 | Measuring cable: 9465-10 (straight) | Bluetooth: Included |
Description:
Complete set with straight test probes Battery tester, straight probes 9465-10 and Bluetooth transmitter for easy efficient data reporting included. |
| Model: BT3554-92 | Measuring cable: L2020 (angled) | Bluetooth: Included |
Description:
Complete set with angled test probes Battery tester, angled L2020 probes and Bluetooth transmitter for easy efficient data reporting included. |
