AC/DC Stromzangen

The BT3554 Battery Tester Series

Two voltage ranges of 6V and 60V and four resistance ranges from 3 mΩ to 3 Ω make the BT3554 Battery Tester Series the perfect tool for maintenance checks of VRLA batteries, regardless of the battery size and capacity. A complete measurement takes less than two seconds. This is time-efficient and differently shaped probe leads enable convenient access of all installations making this battery tester perfect for use in difficult to reach and confined areas. Choose your model with straight or L-shaped test probes, with Bluetooth® or without.

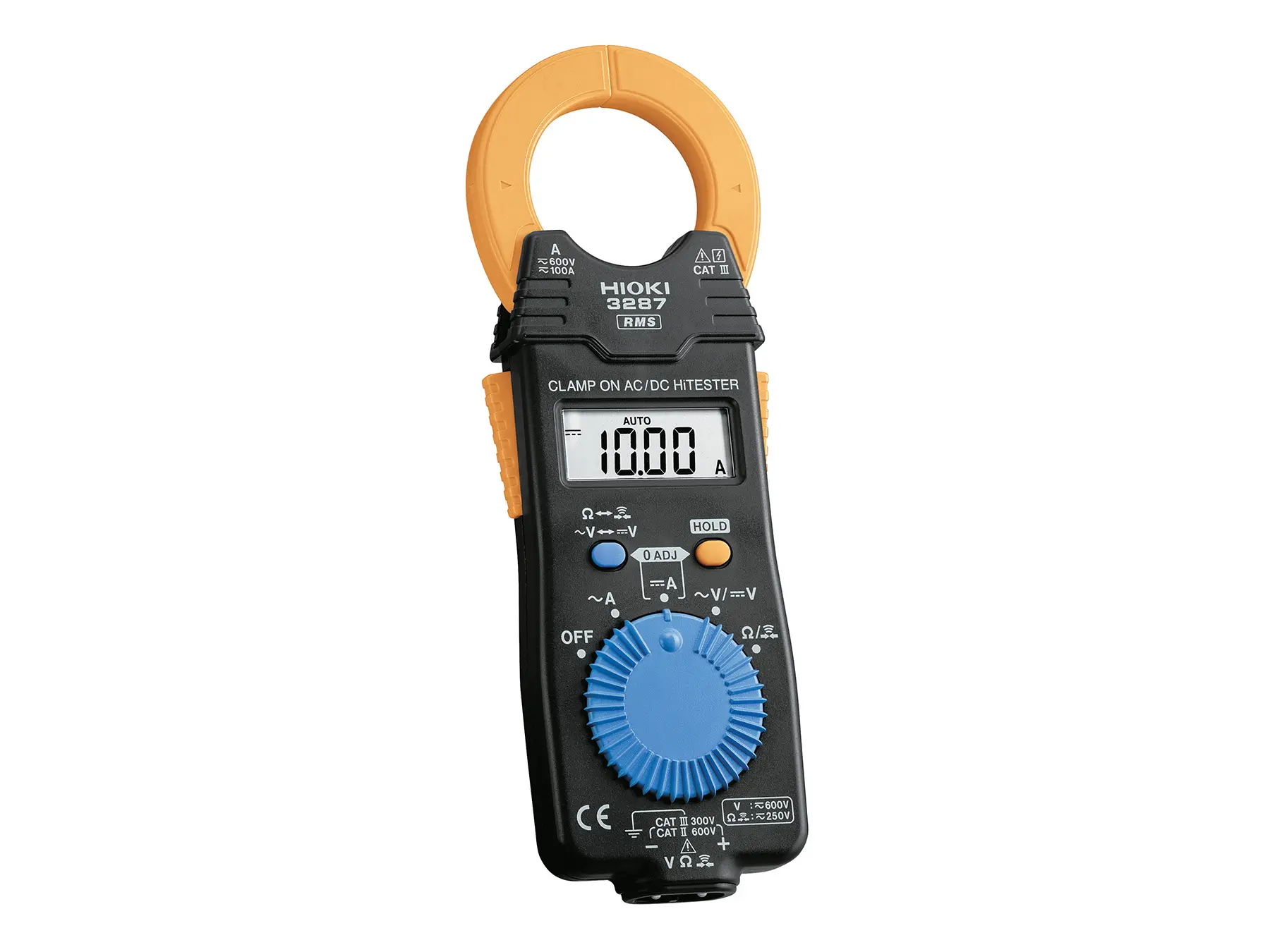

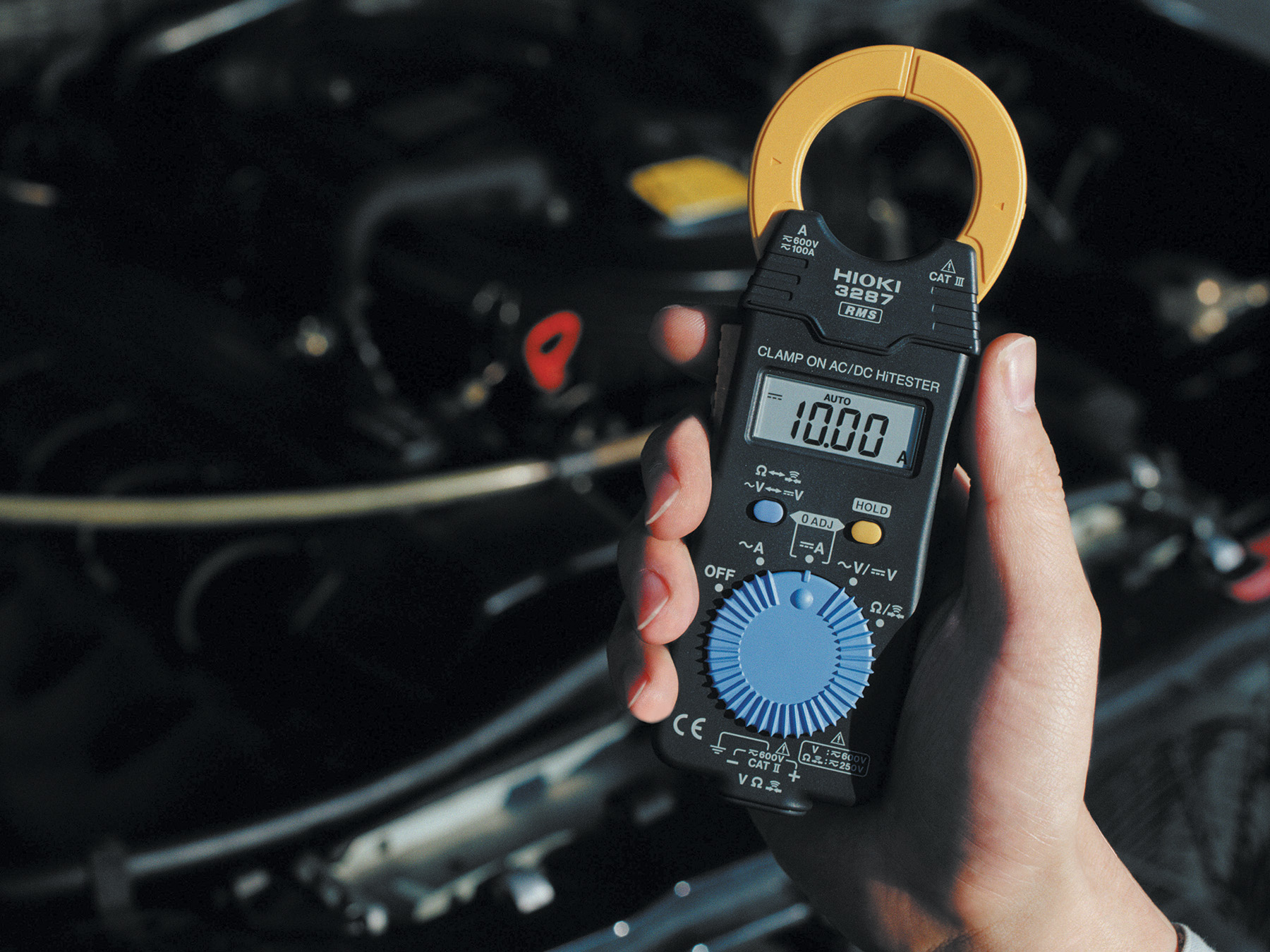

3287

3287 - AC/DC Current Probe

Compact AC/DC clamp meter, True RMS, 10/ 100 A, current, voltage, resistance, continuity and more

€338.00*

View product

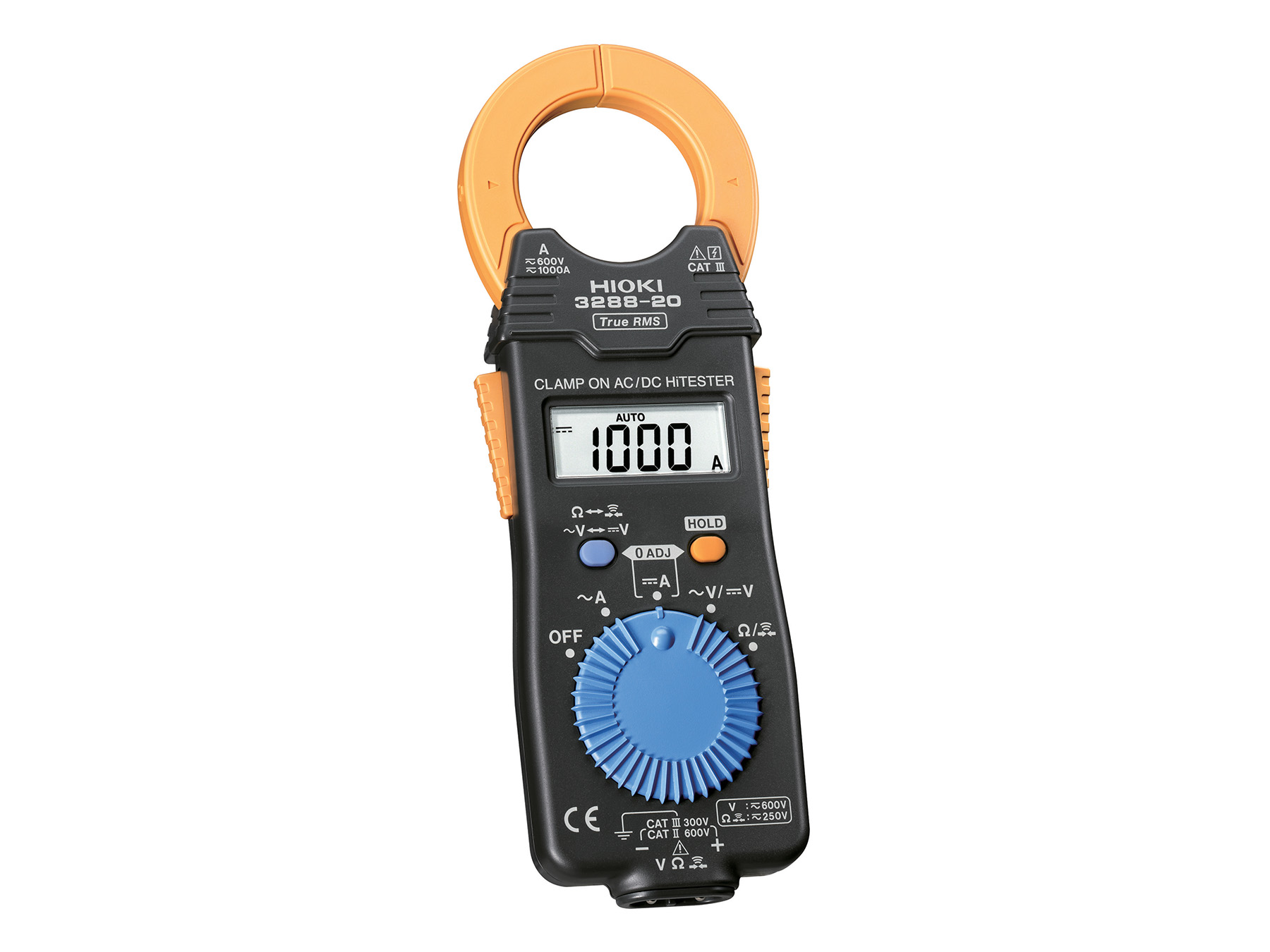

3288-20

3288-20 - AC/DC Current Probe

The 3288-20 AC/DC Clamp Multimeter is a compact, multi-functional clamp meter designed for quick and efficient equipment diagnostics. It measures AC/DC current and voltage, while also offering resistance, continuity, and crest factor checks. With a slim profile and double jaw lever, it’s ideal for accessing crowded wires in industrial environments. The True RMS functionality ensures precise measurements, even for distorted waveforms, making it perfect for high-current applications such as UPS emergency batteries and train motors. Technical Specifications: DC Current Range: 100.0 A / 1000 A, Basic accuracy: ±1.5 % rdg. ±5 dgt. AC Current Range: 100.0 A / 1000 A (10 Hz to 500 Hz, True RMS), Basic accuracy: ±1.5 % rdg. ±5 dgt.DC Voltage Range: 419.9 mV to 600 V, 5 ranges, Basic accuracy: ±1.3 % rdg. ±4 dgt. AC Voltage Range: 4.199 V to 600 V, 4 ranges, Basic accuracy: ±2.3 % rdg. ±8 dgt. (30 Hz to 500 Hz, True RMS) Resistance Range: 419.9 Ω to 41.99 MΩ, 6 ranges, Basic accuracy: ±2 % rdg. ±4 dgt. Crest Factor: 3 or less (2 at 1000 A range, 1.5 at Voltage)Display: LCD, max. 4199 dgt., Refresh rate: 2.5 times/s Power Supply: Coin type lithium battery (CR2032) × 1, Continuous use 35 hours Core Jaw Diameter: 35 mm (1.38 in) Dimensions: 57 mm (W) × 180 mm (H) × 16 mm (D)Weight: 150 g (5.3 oz) Operating Functions: Data hold, Auto power save, Auto zero (DC A), Continuity buzzer (50 Ω ±40 Ω or less) Safety Category: CAT III 600 V (Current), CAT III 300 V (Voltage)

€288.00*

View product

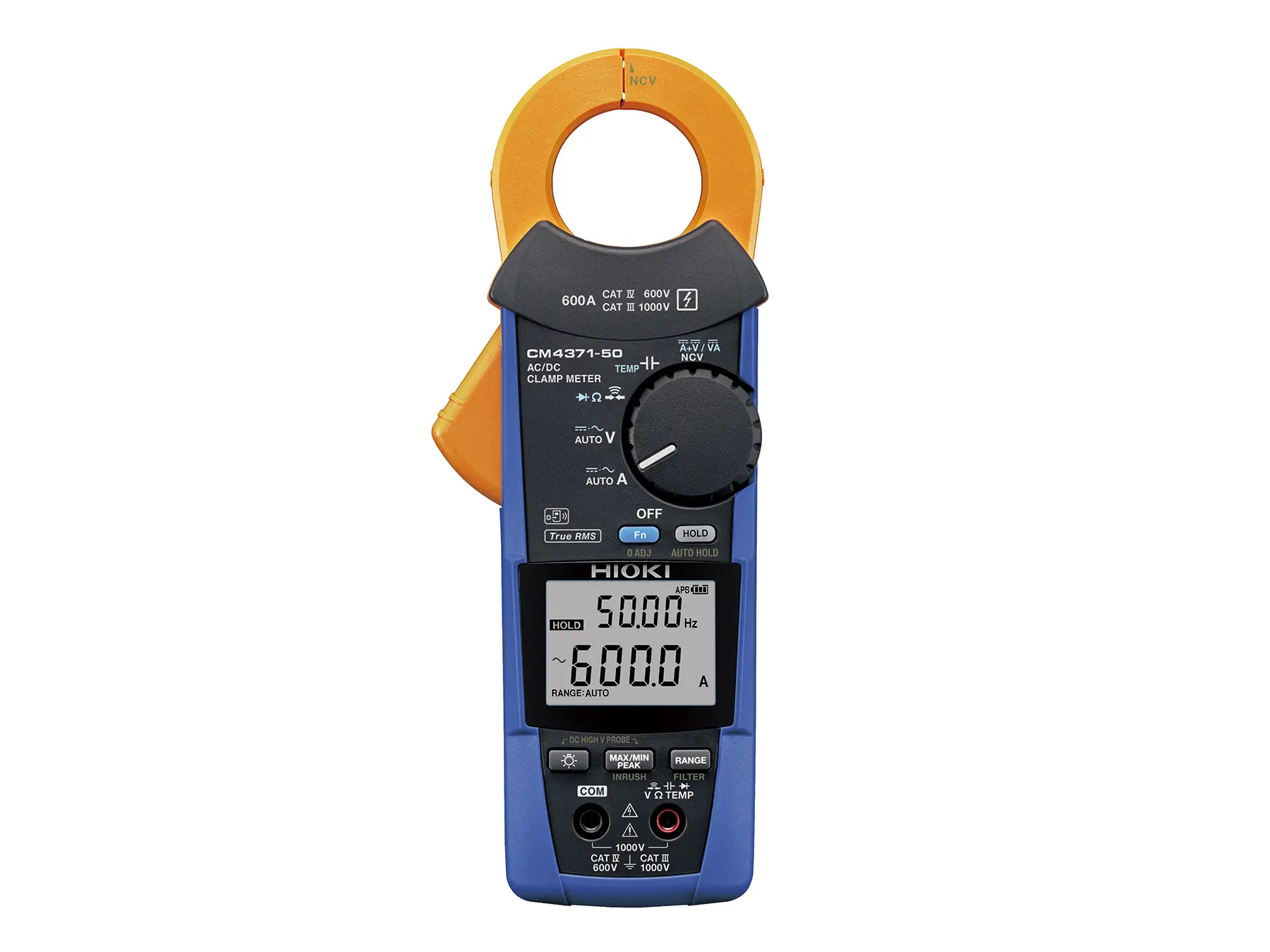

CM4371-50

CM4371-50 - AC/DC True RMS Clamp Multimeter with 20 A and 600 A Current Ranges

True RMS clamp multimeter with 20 A / 600 A ranges for AC/DC currents, voltages up to 1000 V AC/DC. CAT IV 600 V / CAT III 1000 V, 33 mm conductor diameter; resistance, capacitance, continuity, diode test, inrush, optional Bluetooth (Z3210)

€458.00*

View product

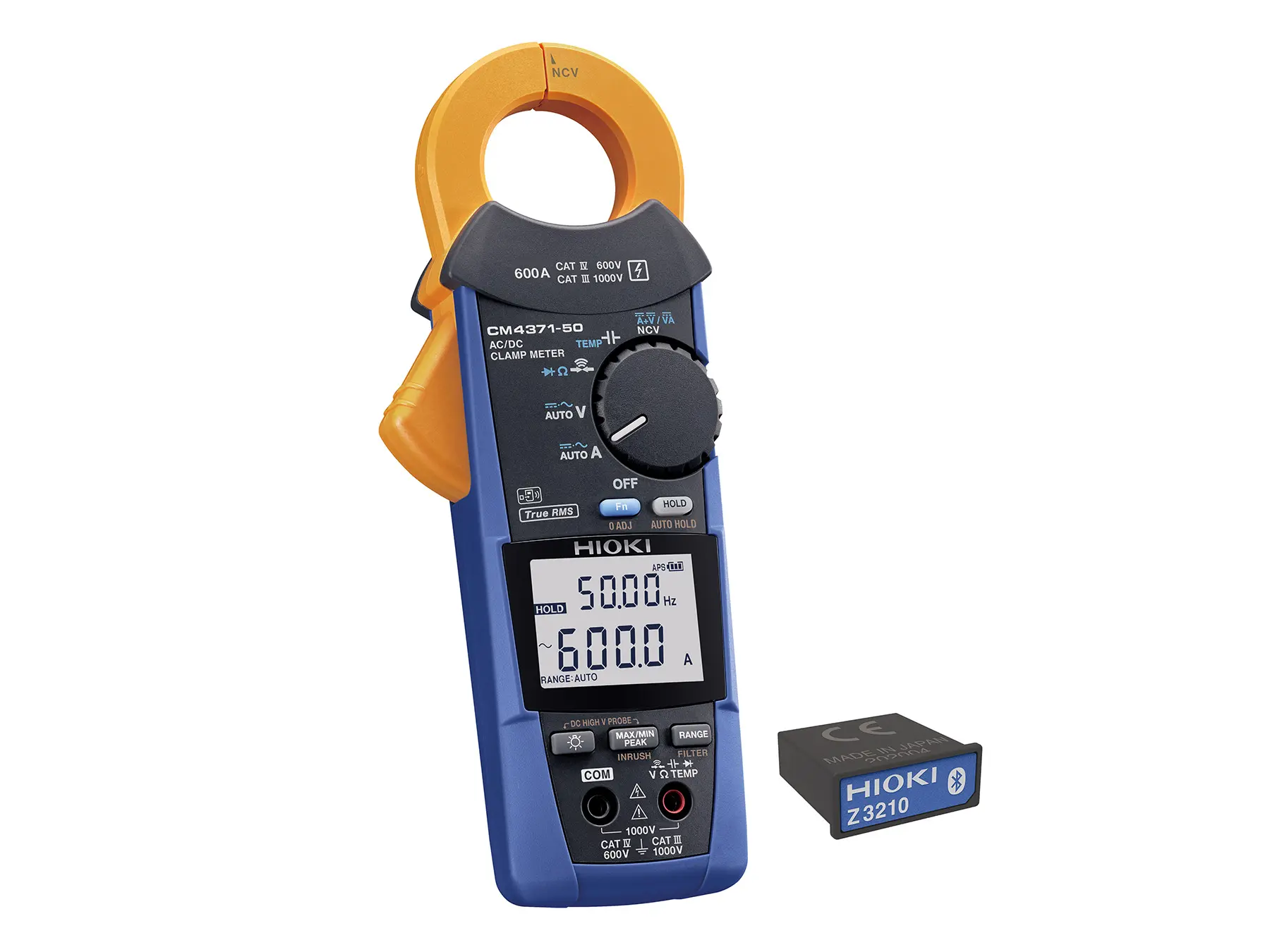

CM4371-90

CM4371-90 - AC/DC True RMS Clamp Multimeter with 20 A and 600 A Current Ranges

True RMS clamp multimeter with 20 A / 600 A ranges for AC/DC currents, voltages up to 1000 V AC/DC. CAT IV 600 V / CAT III 1000 V, 33 mm conductor diameter; resistance, capacitance, continuity, diode test, inrush measurement, Bluetooth included

€518.00*

View product

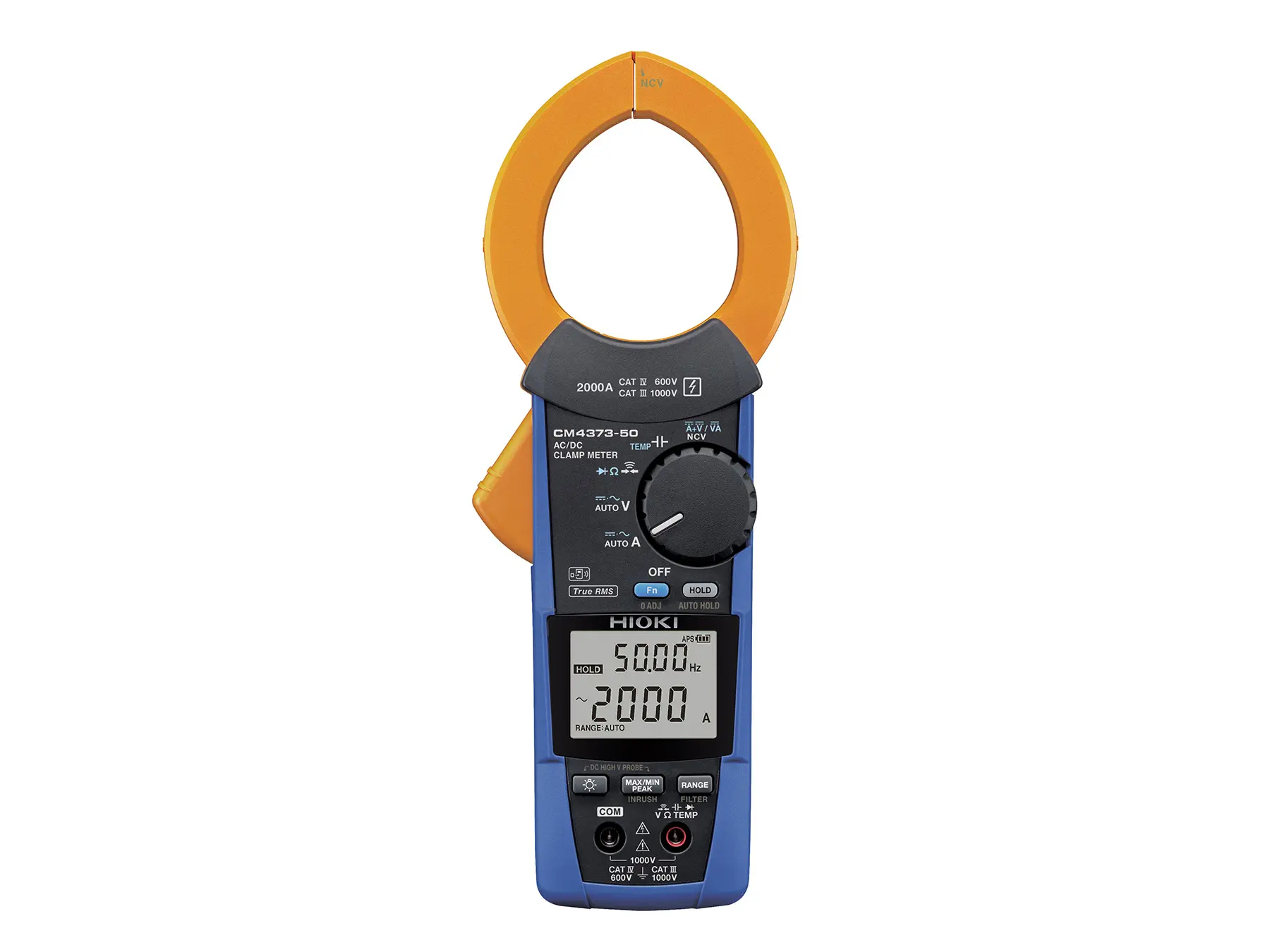

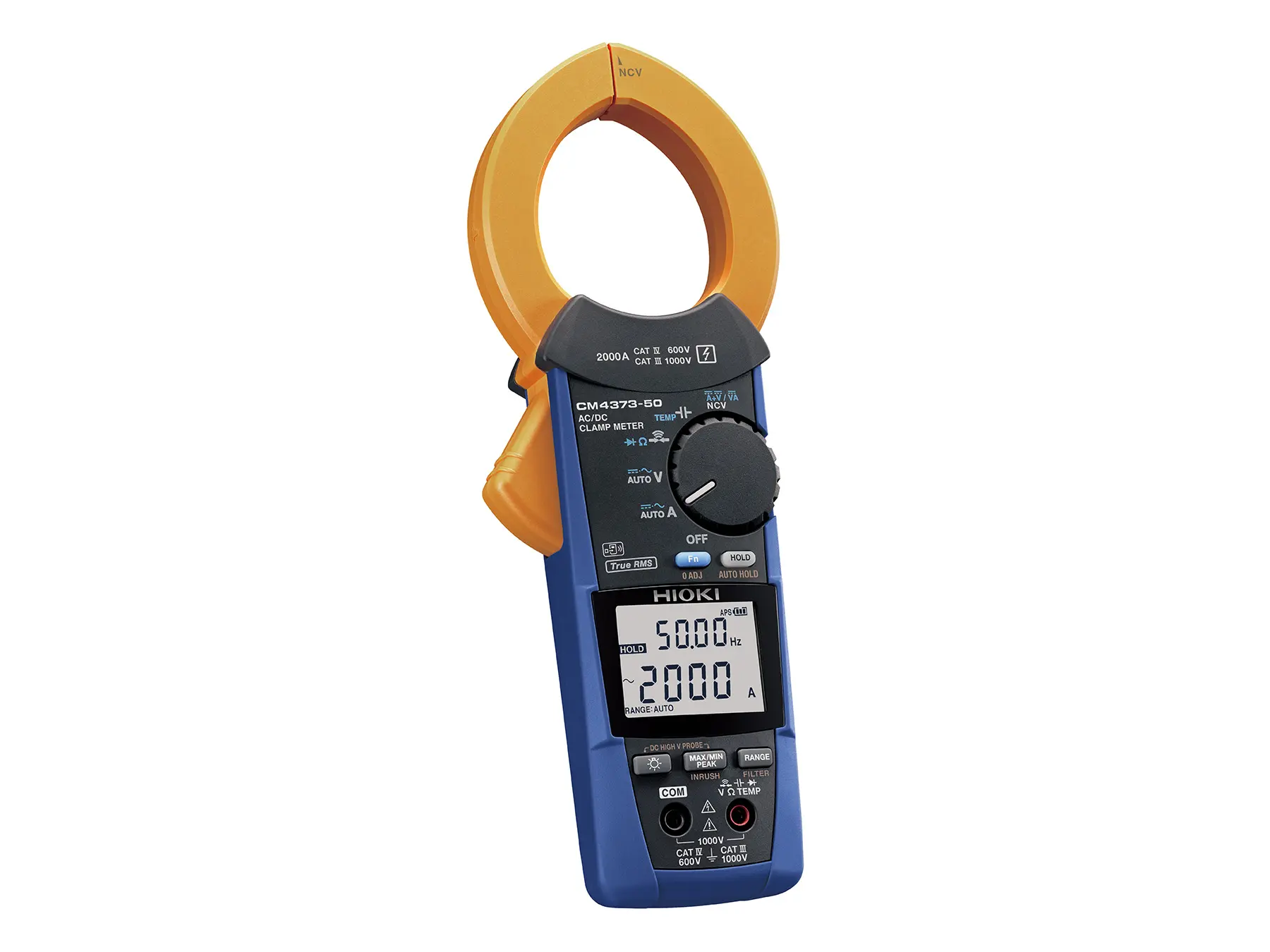

CM4373-50

CM4373-50 - AC/DC True RMS Clamp Multimeter with 2000 A Current Range

True RMS clamp multimeter with 2000 A AC/DC current range, voltages up to 1000 V AC/DC. CAT IV 600 V / CAT III 1000 V, 55 mm maximum conductor diameter; resistance, capacitance, continuity, diode test, inrush, optional Bluetooth with Z3210

€478.00*

View product

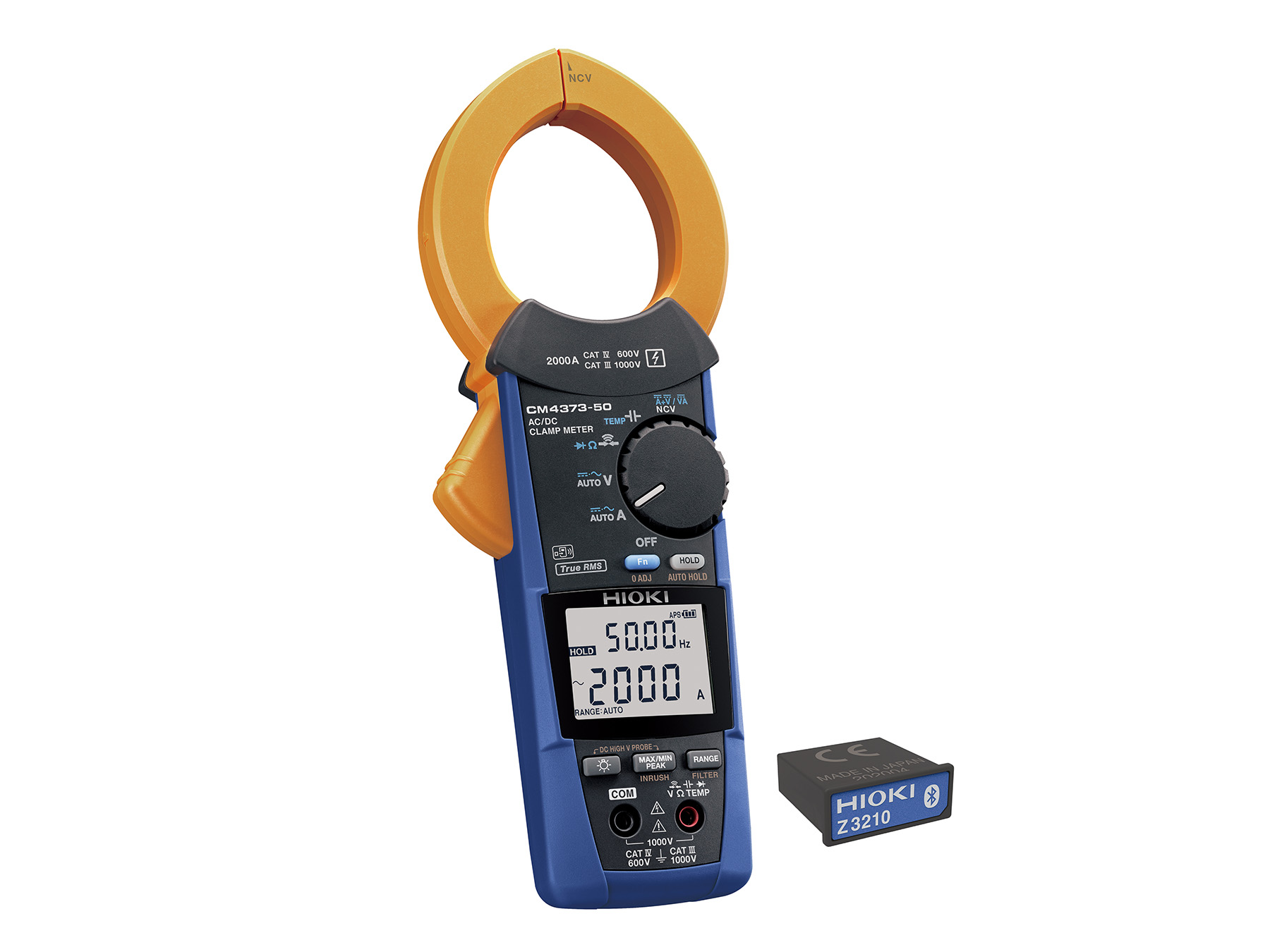

CM4373-90

CM4373-90 - AC/DC True RMS Clamp Multimeter with 2000 A Current Range

True RMS clamp multimeter with 2000 A AC/DC current range, voltages up to 1000 V AC/DC. CAT IV 600 V / CAT III 1000 V, 55 mm maximum conductor diameter; resistance, capacitance, continuity, diode test, inrush, Bluetooth included (Z3210)

€538.00*

View product

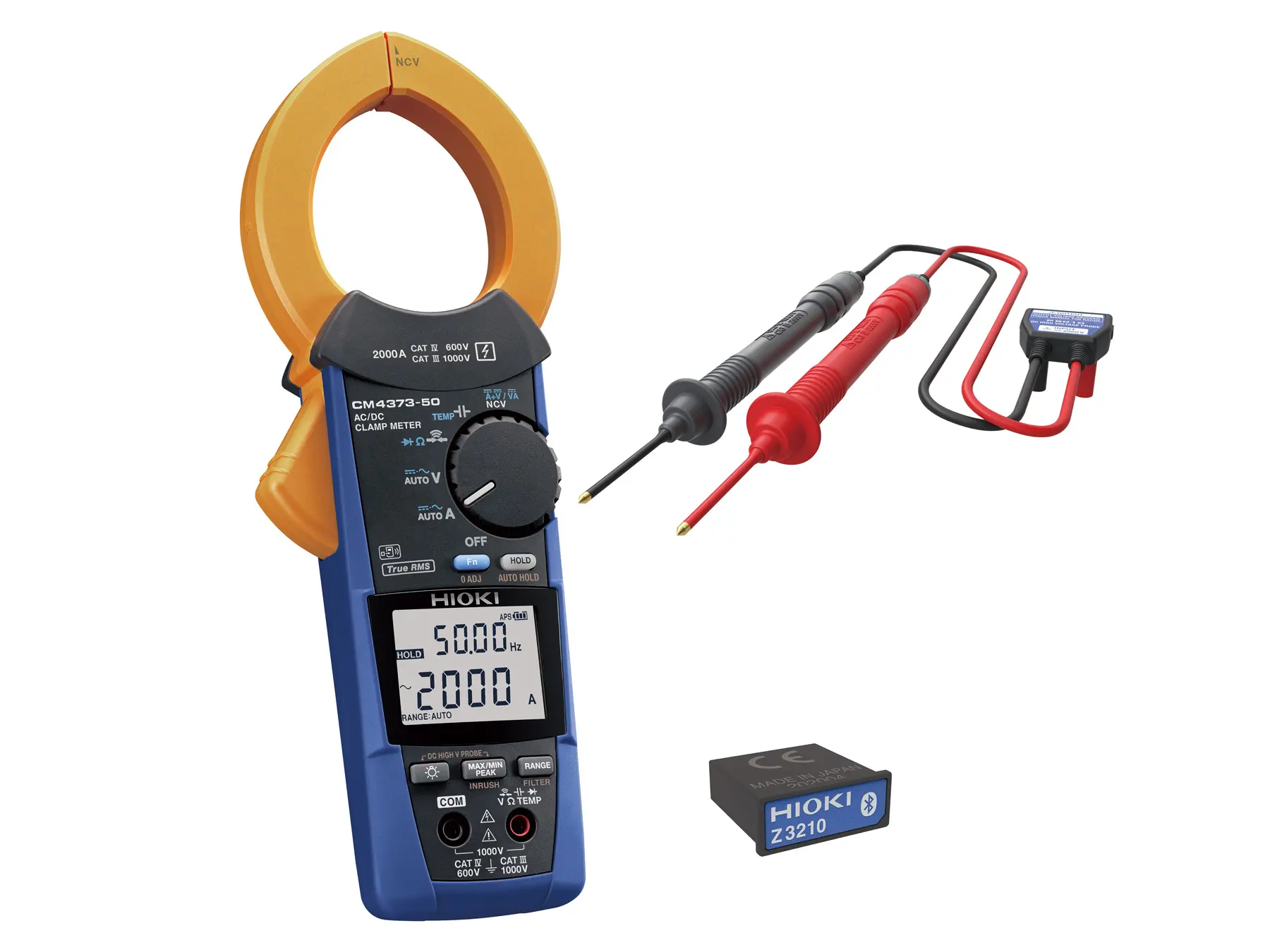

CM4373-93

CM4373-93 - Clamp Multimeter Kit, 2000 A AC/DC, 2000 V DC and Bluetooth

Clamp multimeter kit including CM4373-50, Z3210 Bluetooth adapter, and P2010 High Voltage Divider. 2000 A AC/DC, 55 mm jaw diameter, CAT IV 600 V / CAT III 1000 V, up to 2000 V DC CAT III with P2010

€598.00*

View product

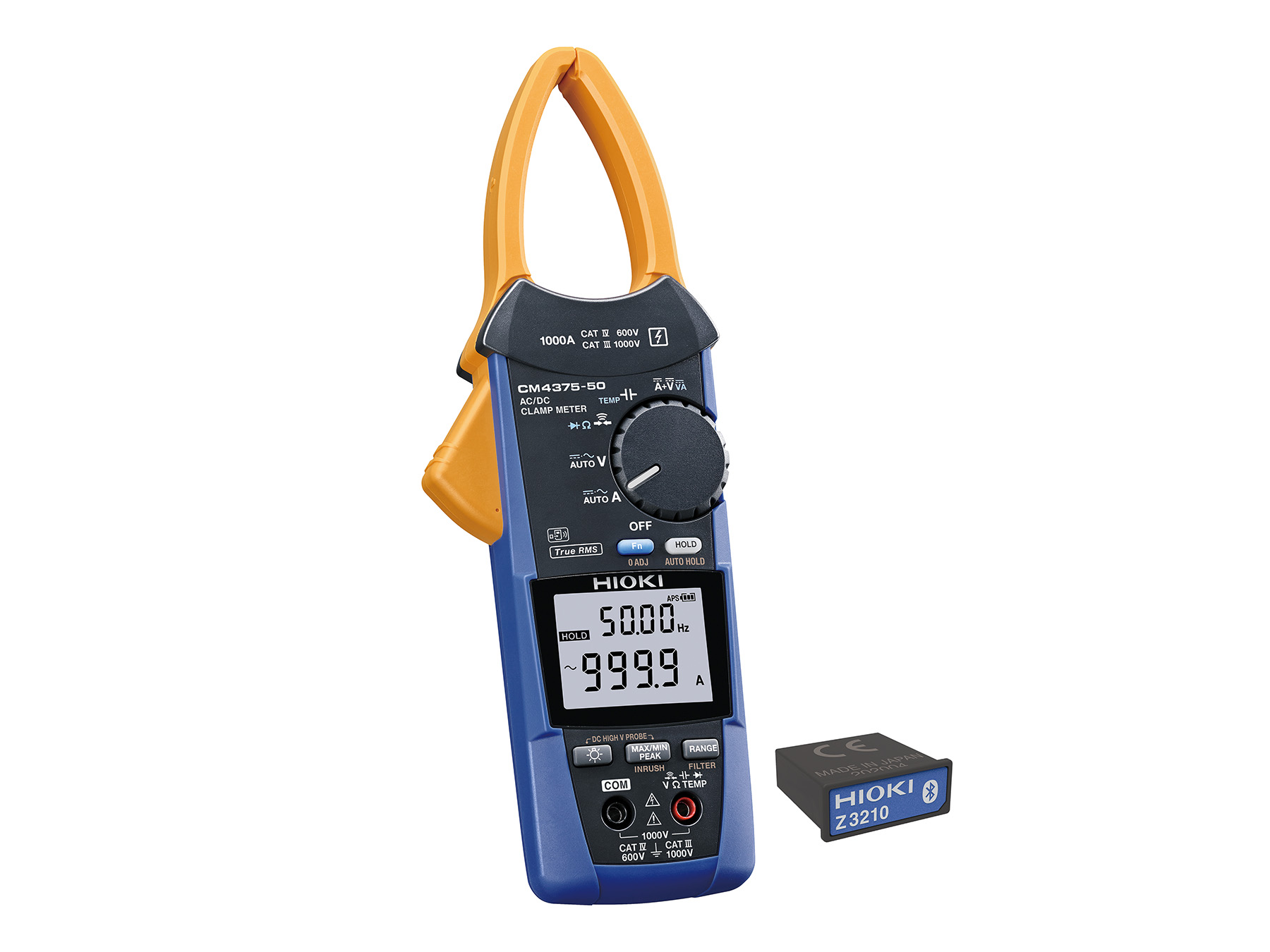

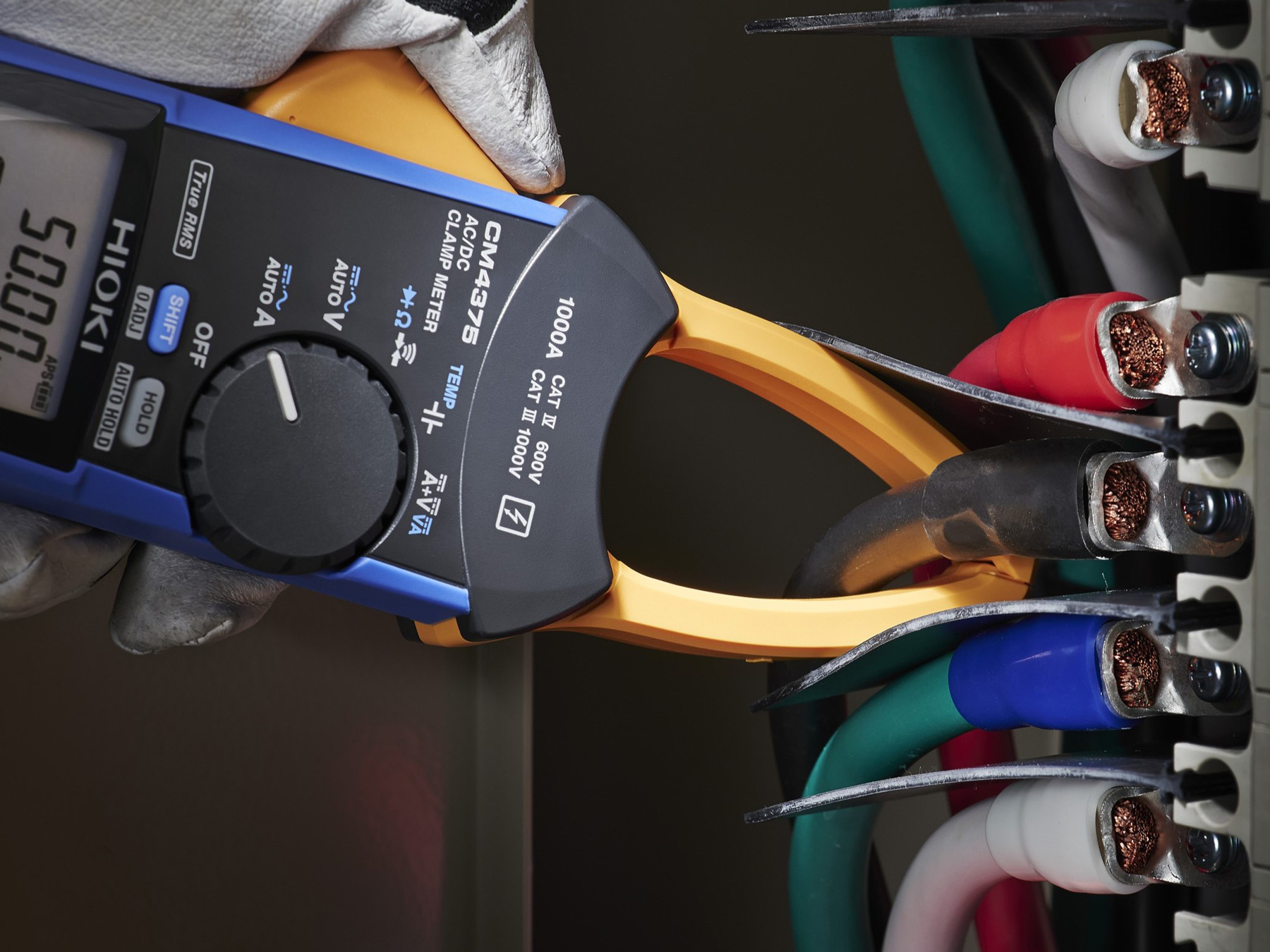

CM4375-50

CM4375-50 - True RMS AC/DC Clamp Multimeter with 1000 A Range and Super Slim Jaws

True RMS clamp multimeter with 1000 A AC/DC current range, voltages up to 1000 V AC/DC. CAT IV 600 V / CAT III 1000 V, 34 mm conductor diameter; resistance, capacitance, continuity, diode test, inrush, Bluetooth optional

€528.00*

View product

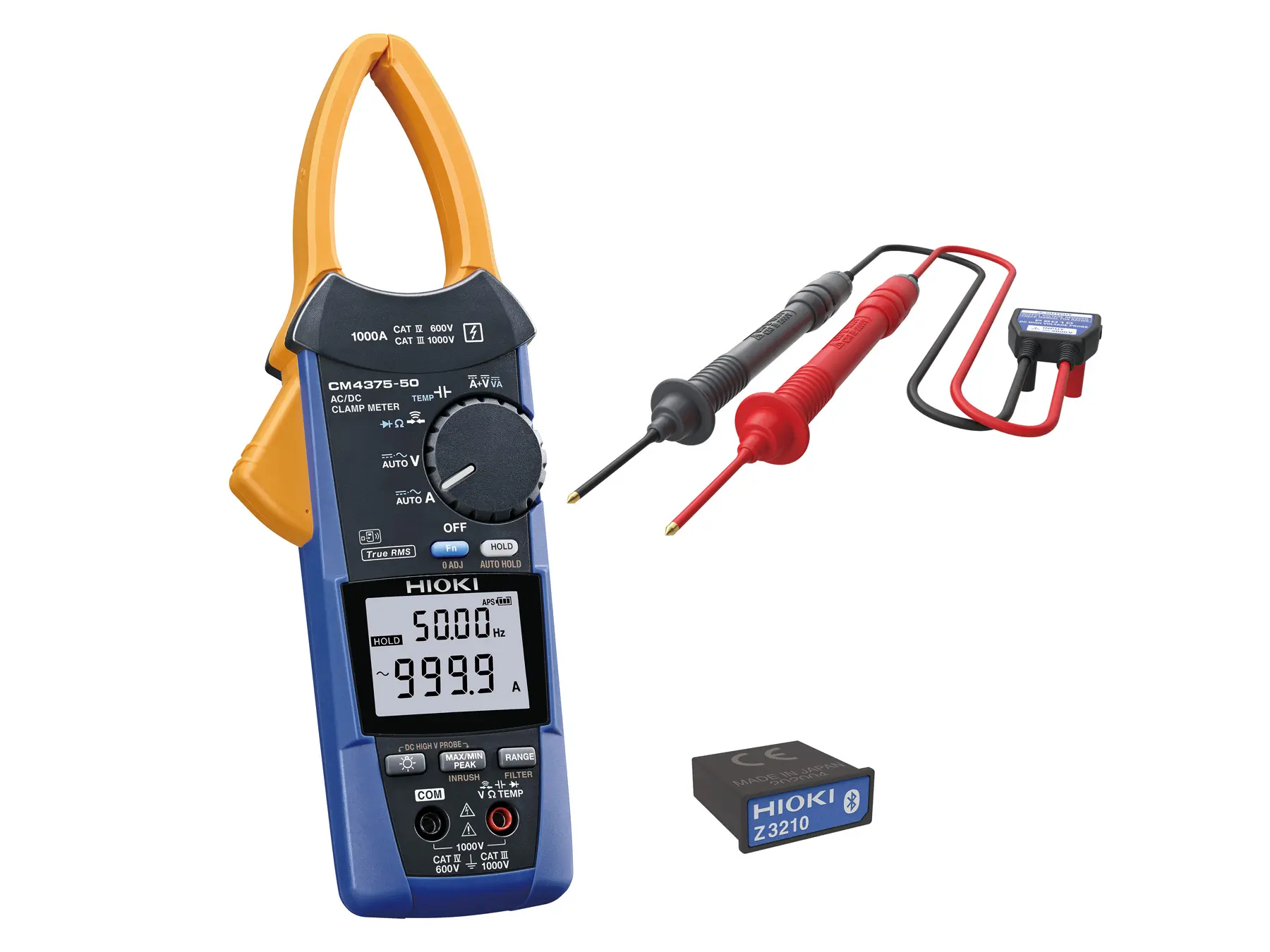

CM4375-93

CM4375-93 - Clamp Multimeter PV Kit, 1000 A AC/DC, 2000 V DC and Bluetooth

Clamp multimeter kit including CM4375-50, Z3210 Bluetooth adapter, and P2010 High Voltage Divider. 1000 A AC/DC, 34 mm jaw diameter, CAT IV 600 V / CAT III 1000 V, up to 2000 V DC CAT III with P2010

€648.00*

View product

Choose your VRLA battery test set

HIOKI’s BT3554 battery tester series are the perfect tool for maintenance checks of UPS systems, regardless of the battery size and capacity. You can choose a BT3554 model with Bluetooth transmitter or without, including straight probes (9465-10) or L-shaped test probes fitting your requirements to test even hard-to-reach battery installations time-efficiently.

BT3554 Variants – Measuring cable, Bluetooth and Description
Model	Measuring cable	Bluetooth	Description
Model: BT3554-50	Measuring cable: without test cable	Bluetooth: Z3210 required	Description: Battery tester and the carrying case with spare parts. Test leads are required separately.
Model: BT3554-51	Measuring cable: 9465-10 (straight)	Bluetooth: Z3210 required	Description: Battery tester incl. straight test probes 9465-10 for installations with easy access. No Bluetooth transmitter included.
Model: BT3554-52	Measuring cable: L2020 (angled)	Bluetooth: Z3210 required	Description: Battery tester incl. angled test probes L2020 for installations with narrow access space. No Bluetooth transmitter included.
Model: BT3554-91	Measuring cable: 9465-10 (straight)	Bluetooth: Included	Description: Complete set with straight test probes Battery tester, straight probes 9465-10 and Bluetooth transmitter for easy efficient data reporting included.
Model: BT3554-92	Measuring cable: L2020 (angled)	Bluetooth: Included	Description: Complete set with angled test probes Battery tester, angled L2020 probes and Bluetooth transmitter for easy efficient data reporting included.
