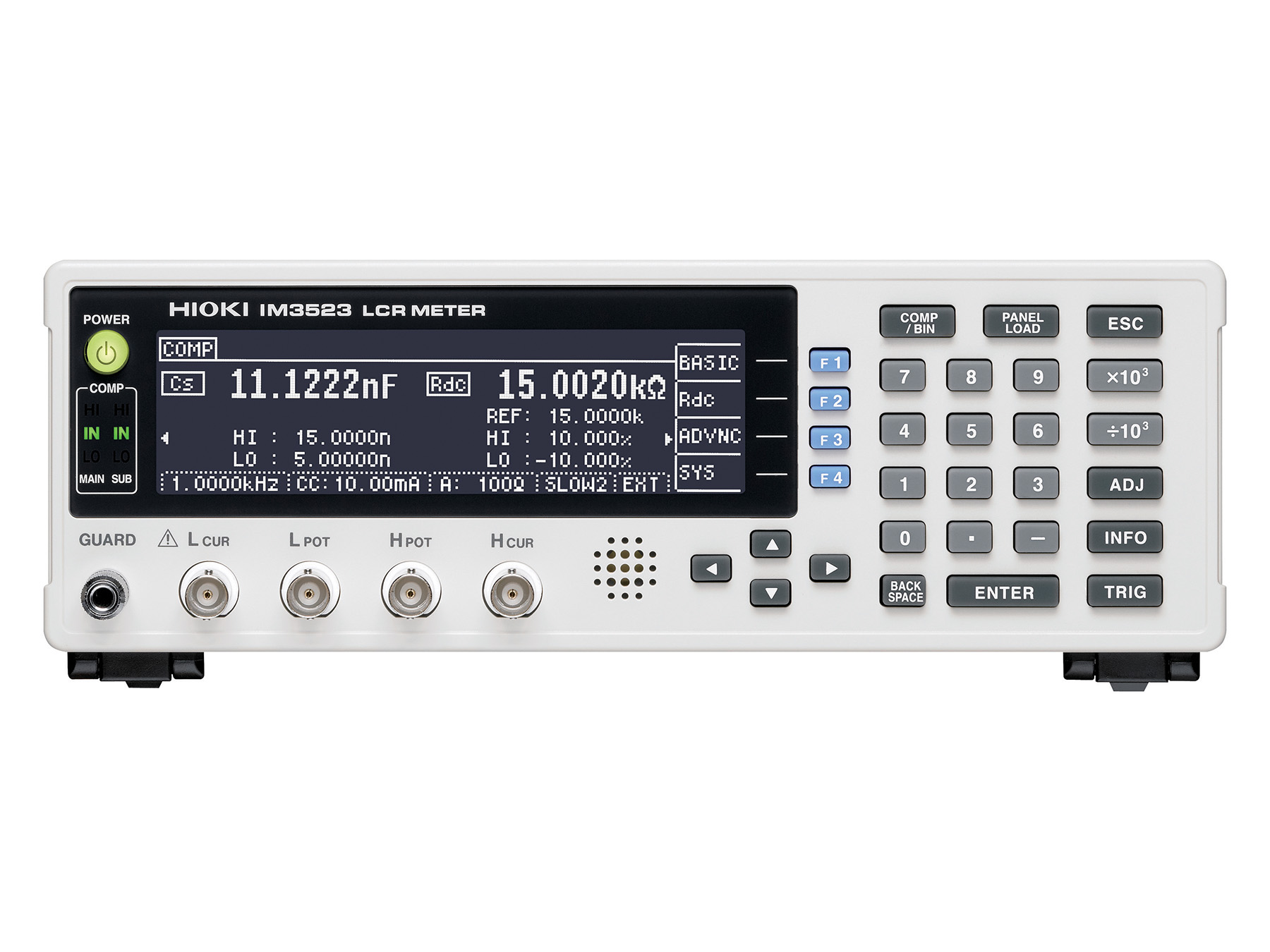

IM3523 - LCR METER

LCR measuring device with fast measuring time (2ms at 1kHz) for production lines, measuring frequency from DC and 40Hz to 200kHz with a basic accuracy of 0.05%. It measures with voltages from 5mV to 5V and currents from µA to 50 mA.

€2,498.00*

Content: 1 Each

*Prices excl. VAT plus shipping costs

In stock in Germany

€2,498.00*

IM3523 - LCR METER

Available stock: 1

Product number: IM3523

EAN: 4536036008933

Length: 203 mm

Width: 260 mm

Height: 88 mm

Weight: 2.4 kg

Product information IM3523 - LCR METER

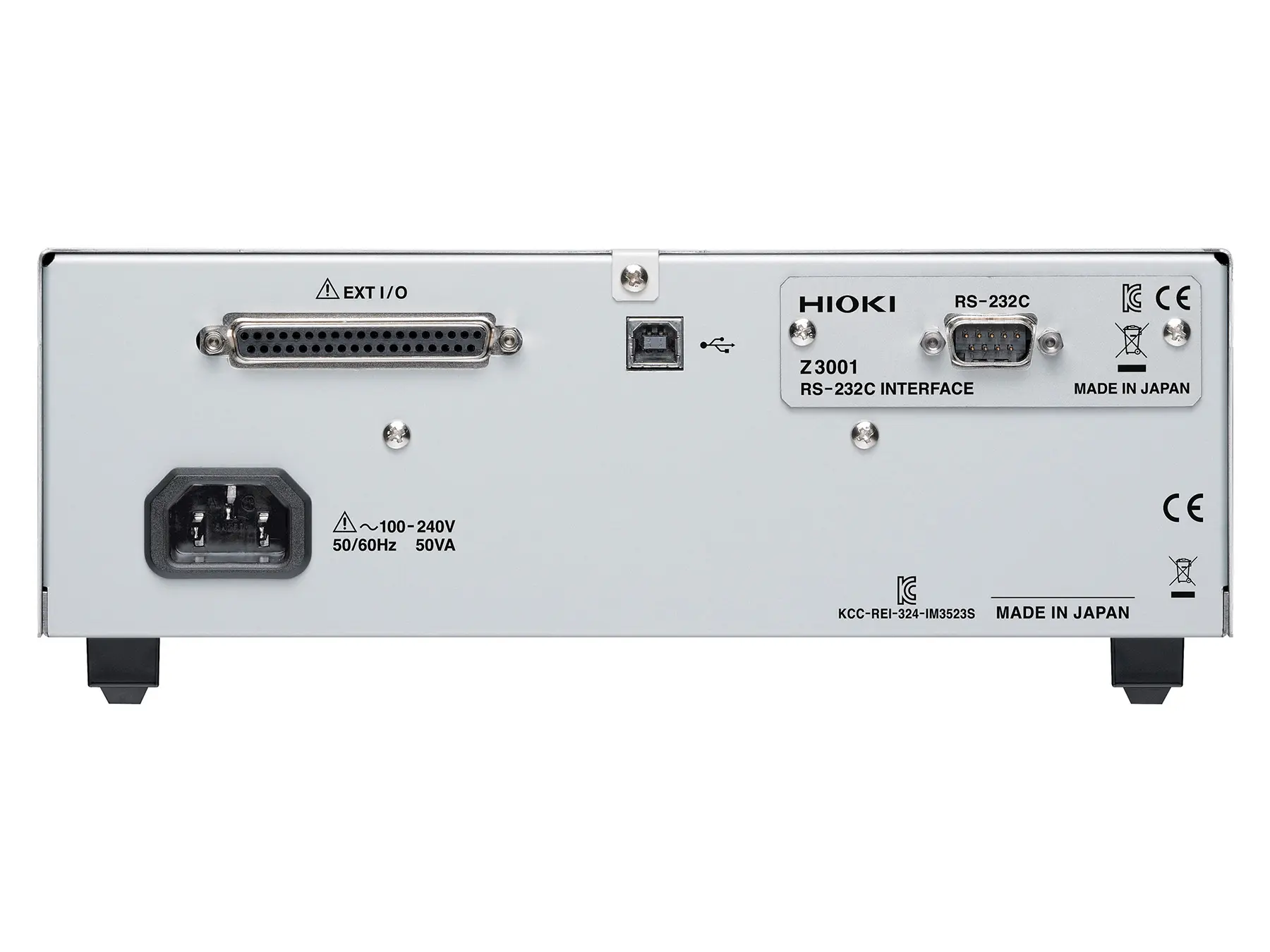

LCR measuring device with fast measuring time (2ms at 1kHz) for production lines, measuring frequency from DC and 40Hz to 200kHz with a basic accuracy of 0.05%. It measures with voltages from 5mV to 5V and currents from µA to 50 mA. Implemented features are comparator function, BIN measurement (classification function). It is equipped with external I/O (handler) and USB interface (as option: RS-232C or GP-IB or LAN).

±0.05% accuracy - wide measuring range (DC, 40Hz to 200kHz, 5mV to 5V, 10uA to 50mA)
Fast 2 msec test time - Communication interfaces LAN (100BASE-T), USB
Built-in comparator and BIN functions
Non-stop testing under mixed measurement conditions such as C-D (120 Hz) and ESR (100 kHz)

IM3523
Power cord
CD-R (Includes Instruction manual, PC commands and Sample software)
Startup guide
Operating precautions
