Test fixtures

The BT3554 Battery Tester Series

Two voltage ranges of 6V and 60V and four resistance ranges from 3 mΩ to 3 Ω make the BT3554 Battery Tester Series the perfect tool for maintenance checks of VRLA batteries, regardless of the battery size and capacity. A complete measurement takes less than two seconds. This is time-efficient and differently shaped probe leads enable convenient access of all installations making this battery tester perfect for use in difficult to reach and confined areas. Choose your model with straight or L-shaped test probes, with Bluetooth® or without.

9263

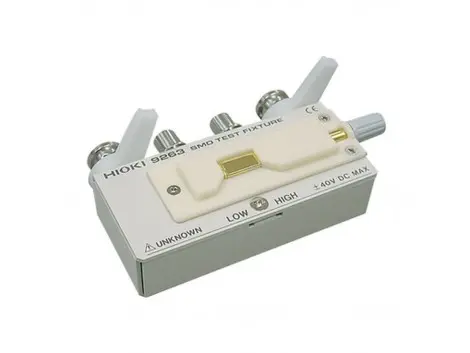

9263 - Test Fixture for SMD Components

Test fixture for SMD components, direct connection, 1 to 10 mm, DC to 8 MHz

€908.00*

View product

9261-10

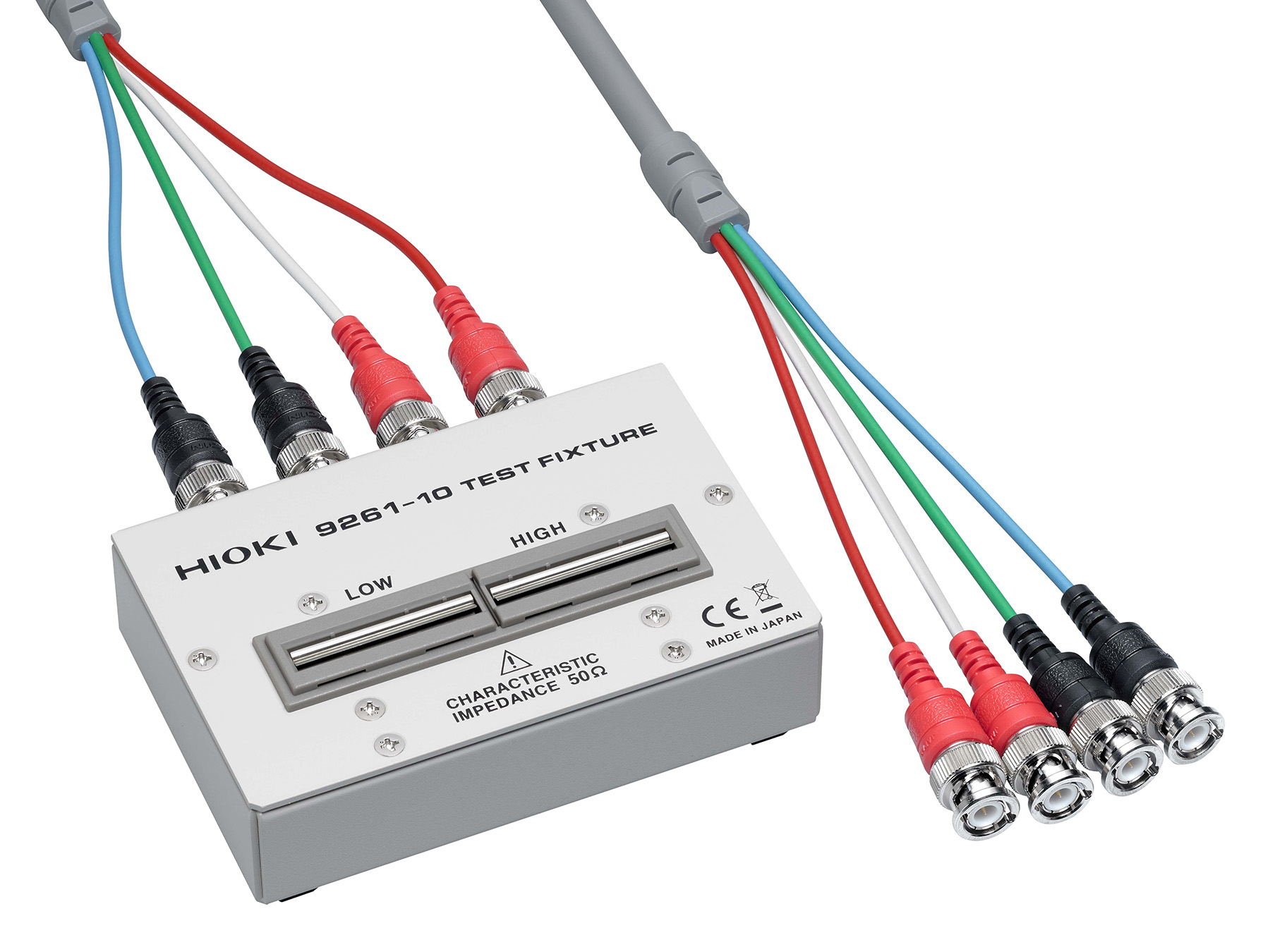

HIOKI 9261-10 - TEST FIXTURE

Precision test fixture with 4-terminal BNC connection for impedance and LCR measurements from DC to 8 MHz. Compatible with IM3590, IM3570 etc. Order now.

€798.00*

View product

9262

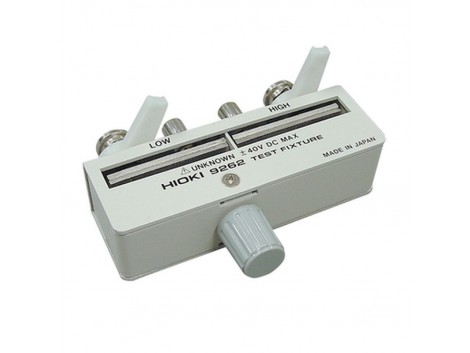

HIOKI 9262 - Test Fixture for Leaded Components

Direct-connection test fixture for lead-type components (0.3–2 mm) with DC to 8 MHz range. Compatible with IM3590, IM3533, IM3523. Order now from HIOKI Europe.

€518.00*

View product

9268-10

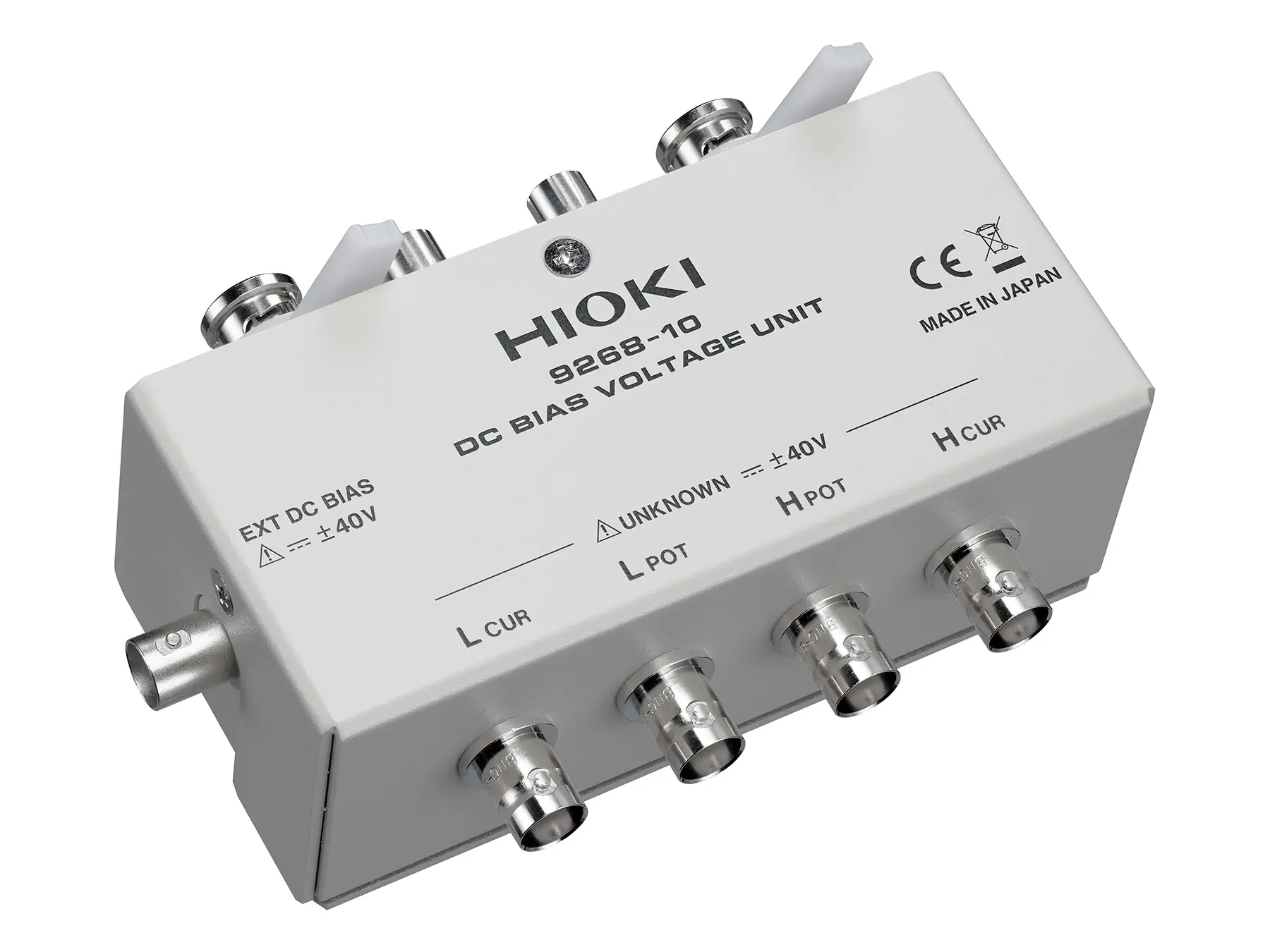

HIOKI 9268 10 - DC Bias Voltage Unit

Optional DC bias unit for HIOKI IM series LCR meters, applying up to ±40 V DC with a frequency range of 40 Hz to 8 MHz. Order online at HIOKI Europe.

€628.00*

View product

RM9004

RM9004 - Probe Head for RM2610 Electrode Sheet Measurement System

Replaceable probe head for the RM2610 Electrode Sheet Measurement System with 46 spring-loaded measurement pins (75 µm each) and a contact area of just 1 mm²

€9,048.00*

View product

Choose your VRLA battery test set

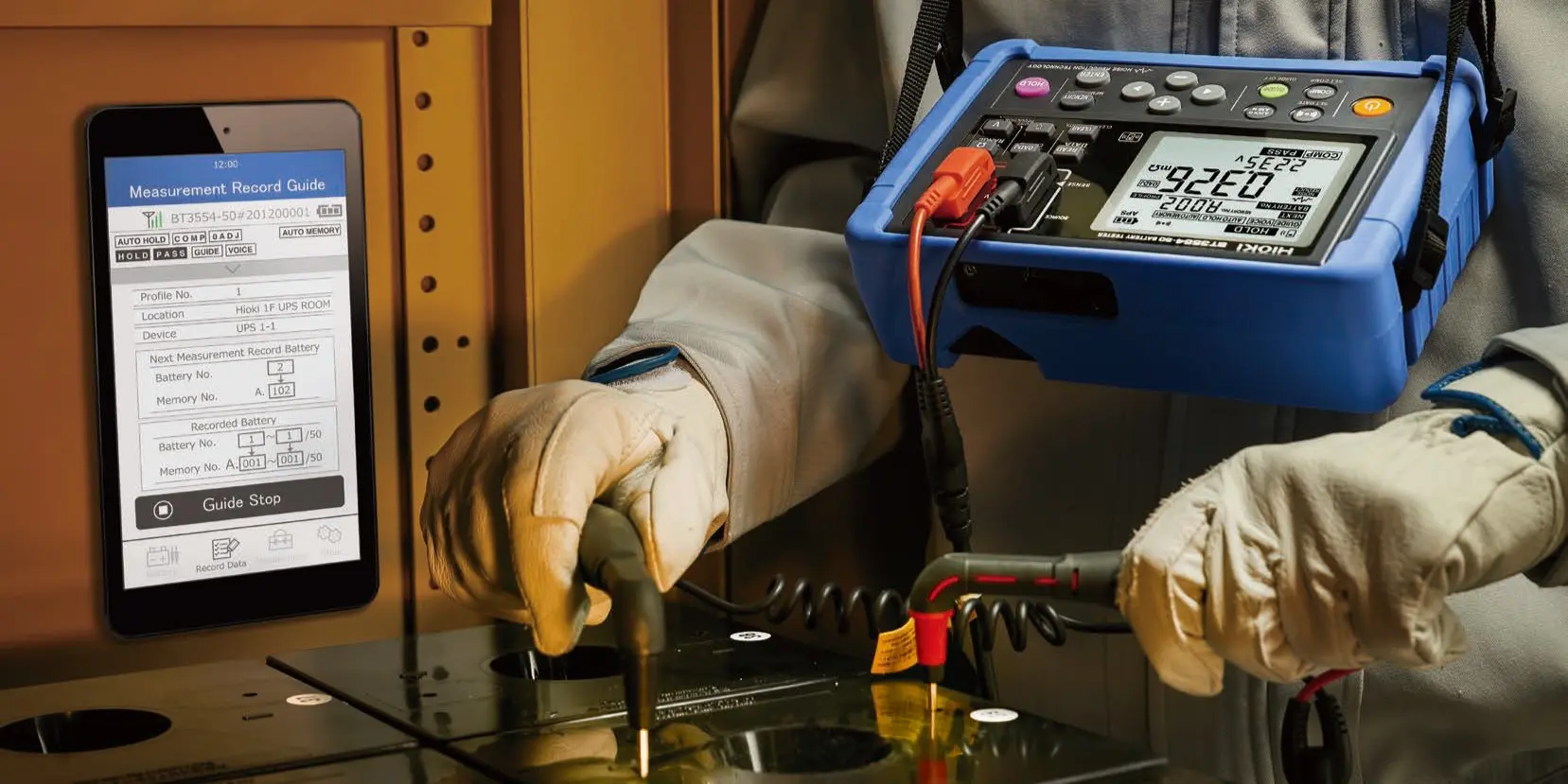

HIOKI’s BT3554 battery tester series are the perfect tool for maintenance checks of UPS systems, regardless of the battery size and capacity. You can choose a BT3554 model with Bluetooth transmitter or without, including straight probes (9465-10) or L-shaped test probes fitting your requirements to test even hard-to-reach battery installations time-efficiently.

BT3554 Variants – Measuring cable, Bluetooth and Description
Model	Measuring cable	Bluetooth	Description
Model: BT3554-50	Measuring cable: without test cable	Bluetooth: Z3210 required	Description: Battery tester and the carrying case with spare parts. Test leads are required separately.
Model: BT3554-51	Measuring cable: 9465-10 (straight)	Bluetooth: Z3210 required	Description: Battery tester incl. straight test probes 9465-10 for installations with easy access. No Bluetooth transmitter included.
Model: BT3554-52	Measuring cable: L2020 (angled)	Bluetooth: Z3210 required	Description: Battery tester incl. angled test probes L2020 for installations with narrow access space. No Bluetooth transmitter included.
Model: BT3554-91	Measuring cable: 9465-10 (straight)	Bluetooth: Included	Description: Complete set with straight test probes Battery tester, straight probes 9465-10 and Bluetooth transmitter for easy efficient data reporting included.
Model: BT3554-92	Measuring cable: L2020 (angled)	Bluetooth: Included	Description: Complete set with angled test probes Battery tester, angled L2020 probes and Bluetooth transmitter for easy efficient data reporting included.
