Connection cables

The BT3554 Battery Tester Series

Two voltage ranges of 6V and 60V and four resistance ranges from 3 mΩ to 3 Ω make the BT3554 Battery Tester Series the perfect tool for maintenance checks of VRLA batteries, regardless of the battery size and capacity. A complete measurement takes less than two seconds. This is time-efficient and differently shaped probe leads enable convenient access of all installations making this battery tester perfect for use in difficult to reach and confined areas. Choose your model with straight or L-shaped test probes, with Bluetooth® or without.

9165

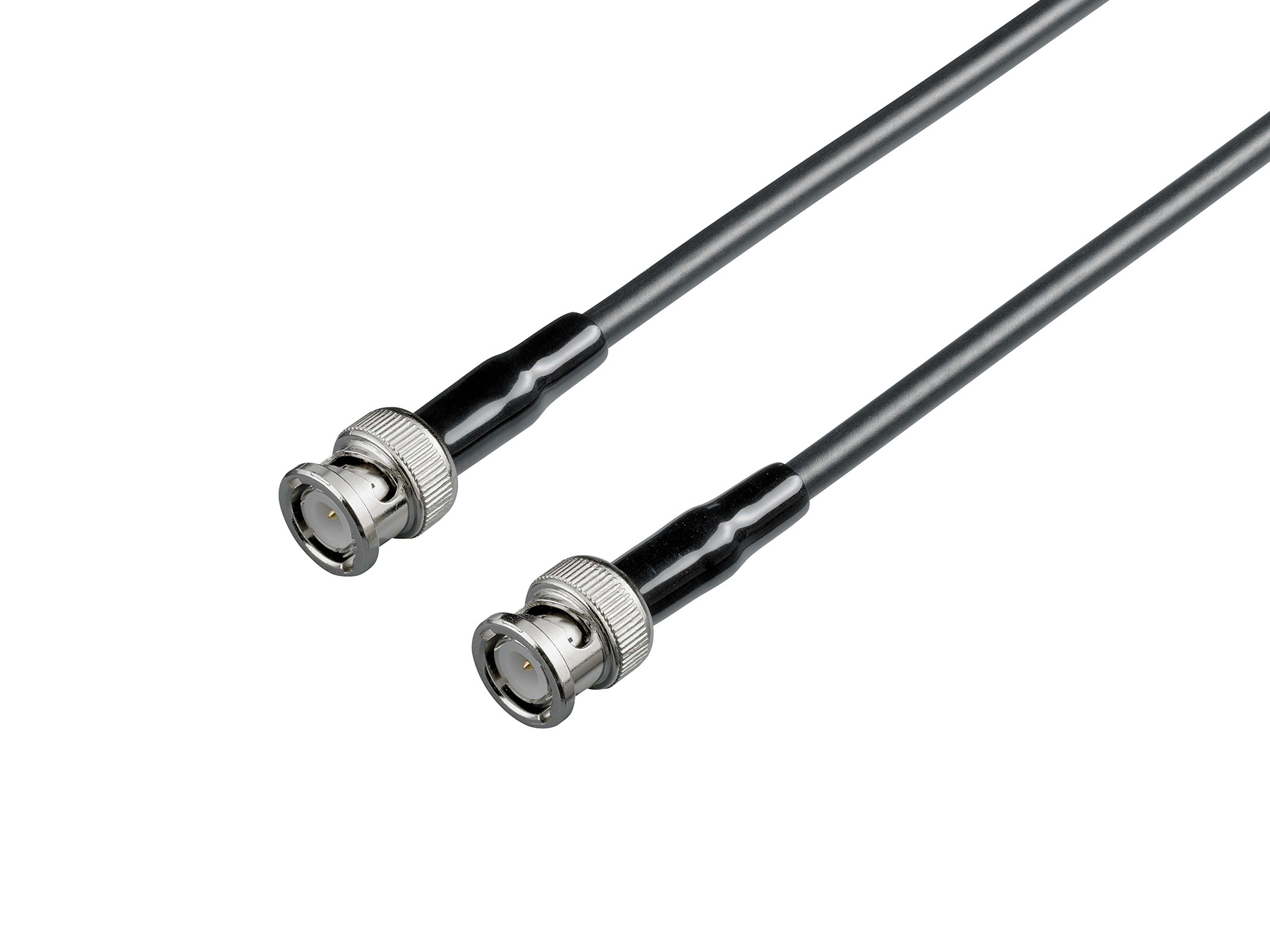

9165 - BNC Cable

The 9165 is a 1550 mm long BNC to BNC coaxial cable for reliable signal transmission in test and measurement applications. It features an RG-58A/U coaxial cable with 50 Ohm BNC connectors (BNCP-58A) at both ends and offers high signal integrity. Precision manufacturing makes it ideal for laboratory applications.Technical details: Cable type: RG-58A/U coaxialConnector type: BNC (BNCP-58A), 50 OhmLength: 1550 mm (+20 mm tolerance)Typical Applications Reliable signal transmission for testing and measurement

€38.00*

View product

9641

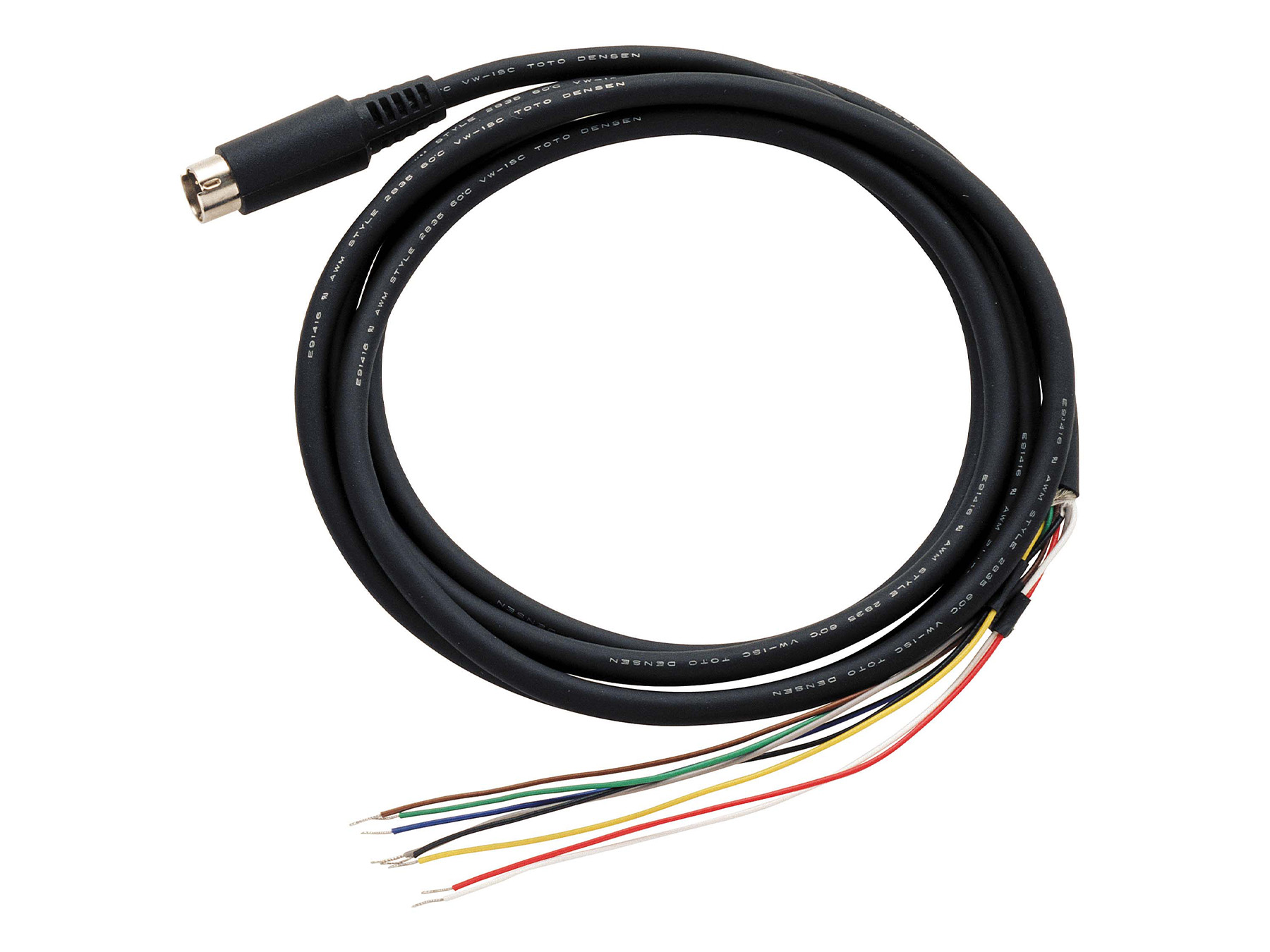

9641 - CONNECTION CABLE

Open end cable for 8420 series, 8430, LR8431, LR8432 Technical details Pin Number and Wire Color: 1= Red, 2= White, 3= Black, 4= Yellow, 5= Blue, 6= Green, 7= Brown, 8= Gray Cable Type: PVC, AWG #28 × 8 (UL2835) Connector: Mini-DIN 8P connector Cable Diameter: 4.8 mm PVC-jacketed cable Heat Shrink Tubing: Red, White, Black, Yellow, Blue (color-coded for pins) Insulation Resistance: DC 250V ≥ 500 MΩ Dielectric Strength: AC 250V for 1 minute Overall Length: 1000 mm

€38.00*

View product

9642

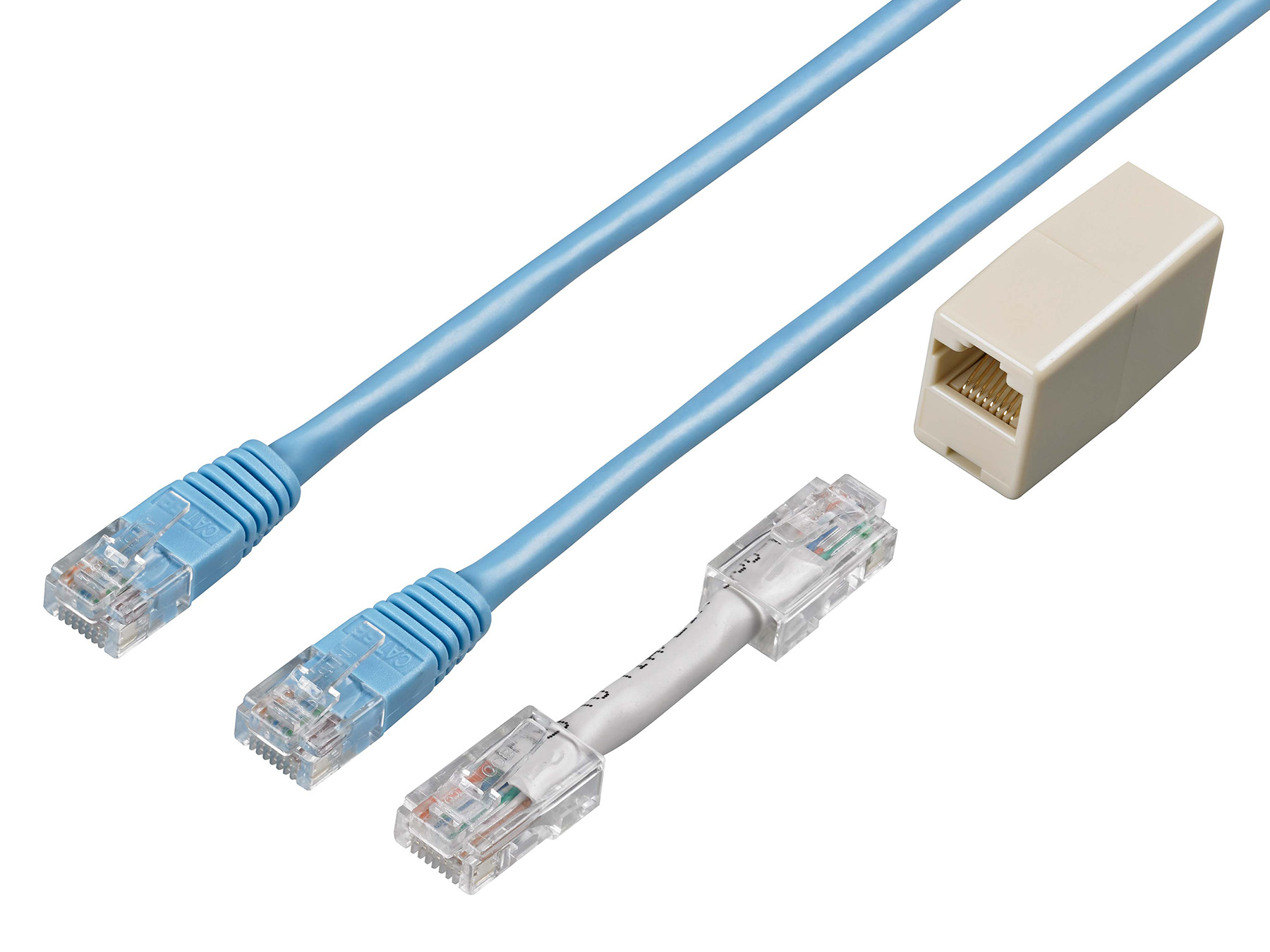

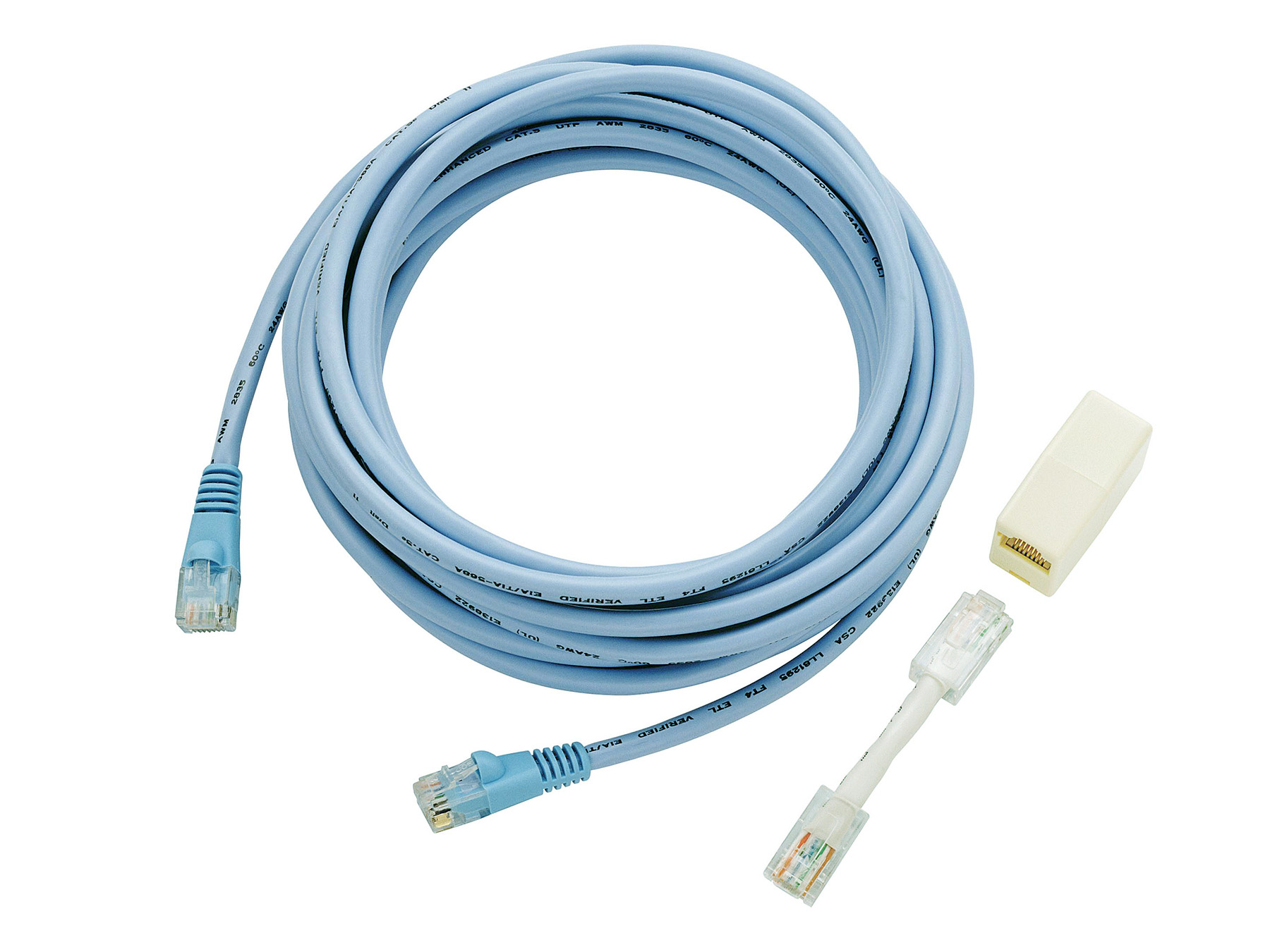

9642 LAN CABLE

LAN cable, straight Ethernet cable, supplied with straight to cross conversion adapter, 5 m length, for the Memory HiCorder, LR8400 series, and similar products

€48.00*

View product

9704

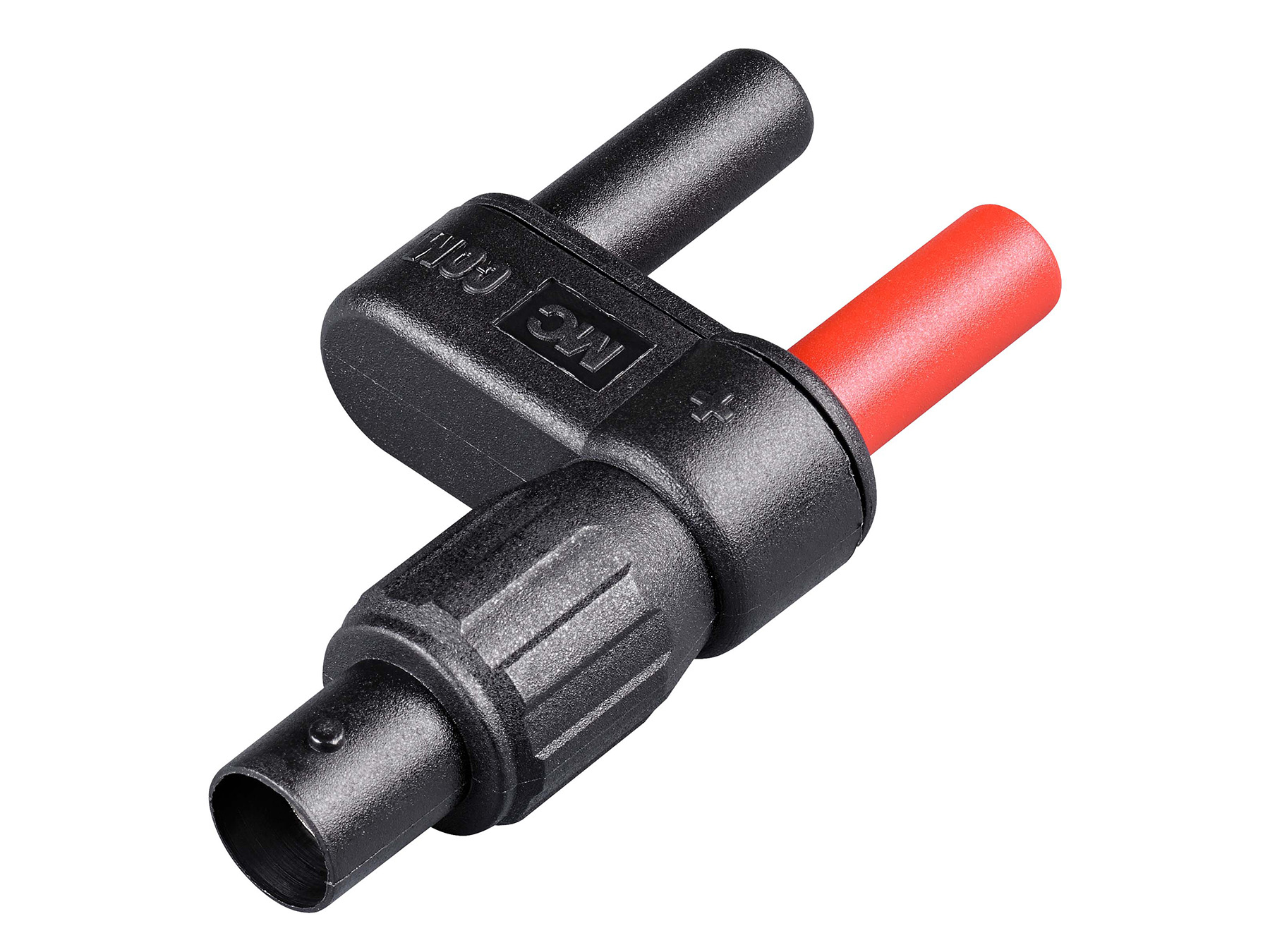

9704 - Adapter BNC socket

The 9704 is a versatile banana to BNC conversion adapter accessory wherever this is required. It is suitable for example for Hioki digital multimeters where current probes can be connected, or where a banana to BNC test lead conversion is required for measurement applications.Dimensions: 63W×33H×13D mmConnector configuration: 2x Banana male, 1x BNC female Distance between banana plugs: 19 mmVoltage protection category: CAT III 600VCompatible AC clamp and flexible probes: 9010-50, 9018-50, 9132-50, CT9667-01, CT9667-02, CT9667-03 Compatible Digital Multimeters: DT4252, DT4253, DT4255, DT4256, DT4261, DT4281, DT4282 Others: Connection Cable L9097

€28.00*

View product

9713-01

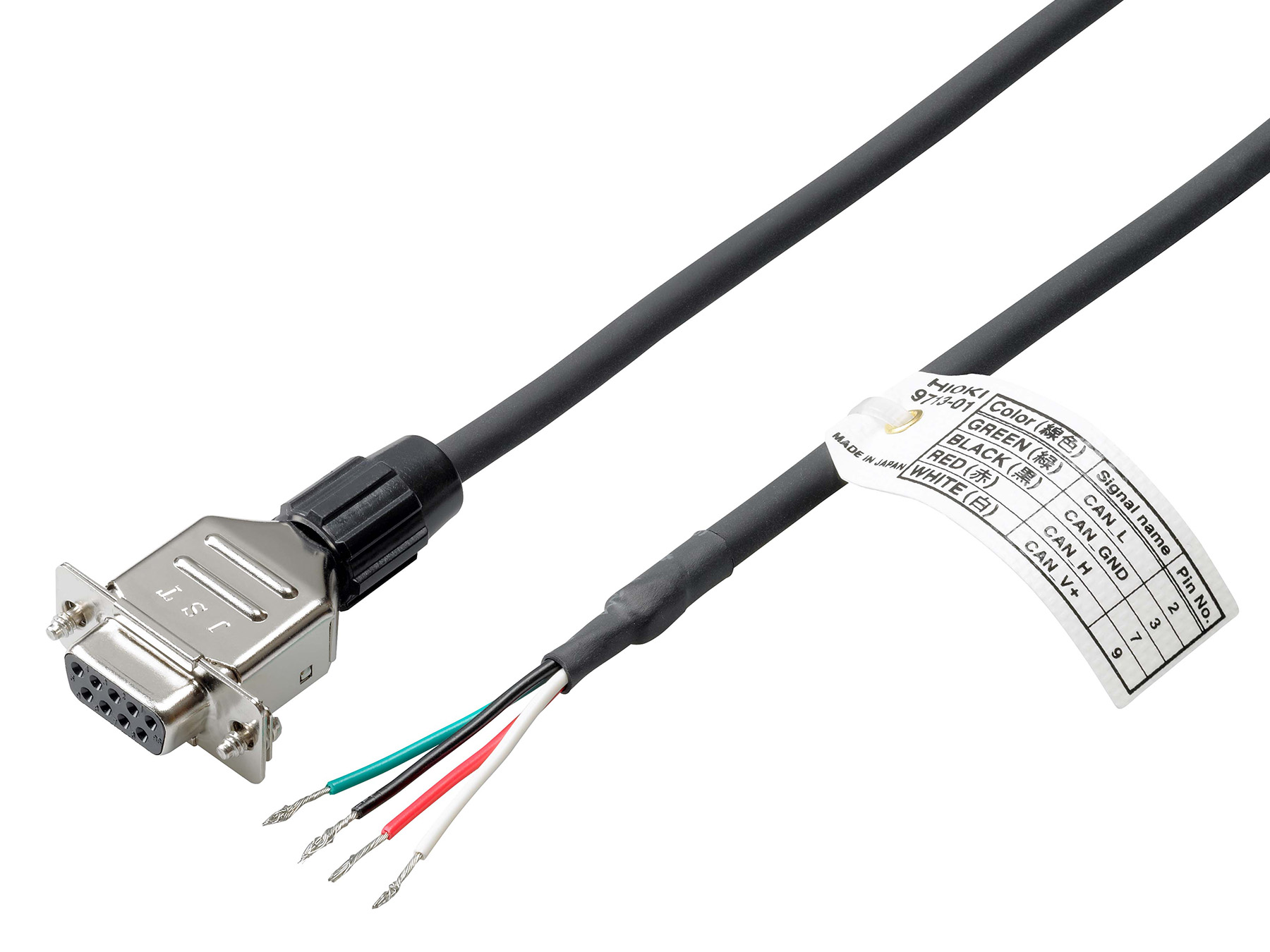

9713-01 - CAN Cable for MR8904 oder LR8102

The 9713-01 is a CAN -bus adaptor cable from Sub-D9 female to 4-pole unprocessed (open end) wires suitable for MR8904 or LR8102. Technical data: Connector: Sub-D9 female Length: 1.8m Pin assignment: No. 2 > green (CAN_L) No. 3 > black (CAN_GND) No. 7 > red (CAN_H) No. 9 > white (CAN_V+) Cable diameter: Φ 5 mm Single wire diameter: Φ 1 mm Core wire diameter: AWG22 (0.34mm²)

€48.00*

View product

CT9900

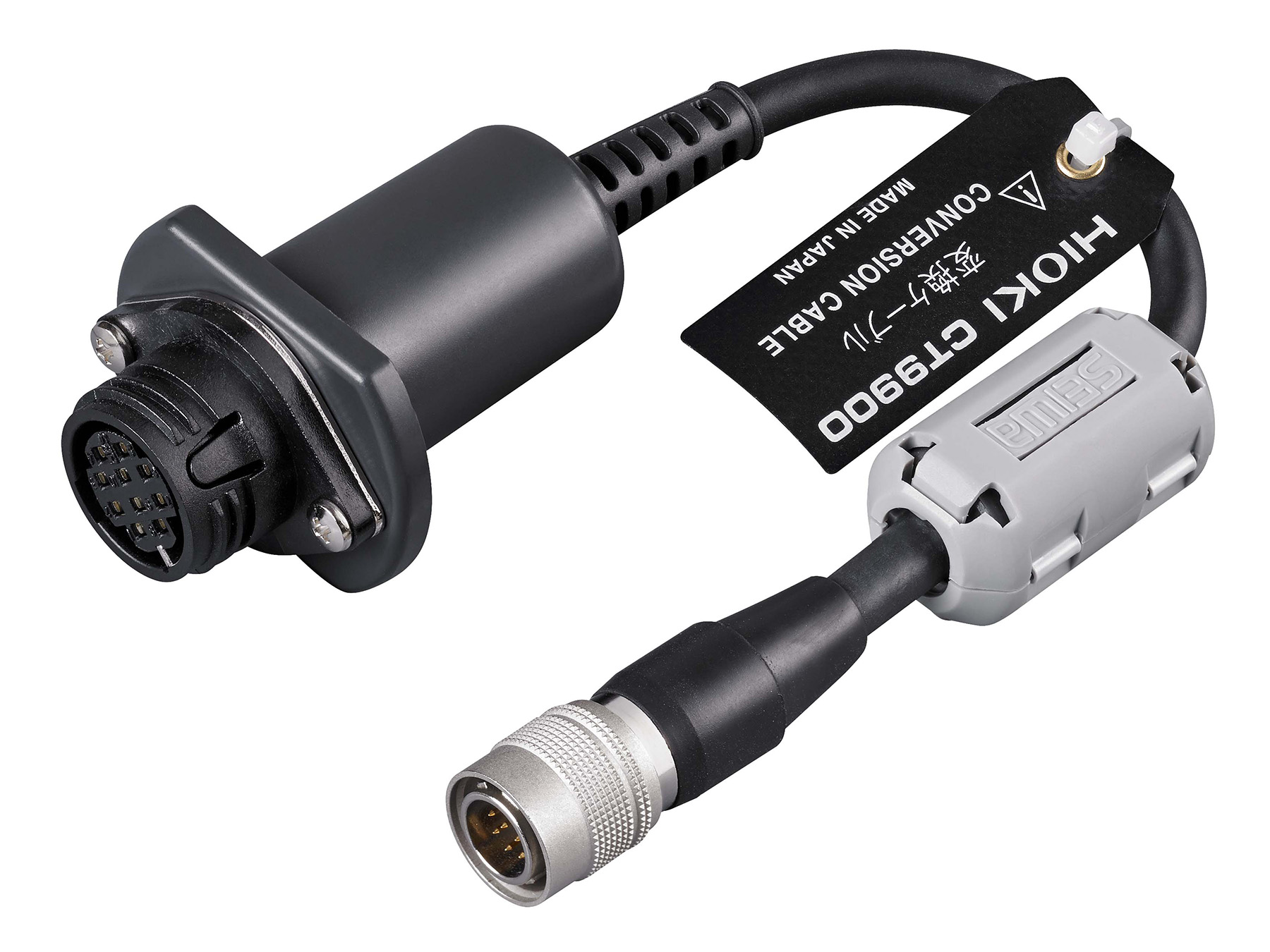

CT9900 - CONVERSION CABLE

The CT9900 conversion cable allows for easy connection between Hioki current sensors and compatible data acquisition devices, ensuring stable signal transmission. Technical Details: Length: 240 mm Connectors: PL23(w 10pin) / ME15W(m 12pin) Compatibility: Hioki current sensors

€128.00*

View product

CT9902

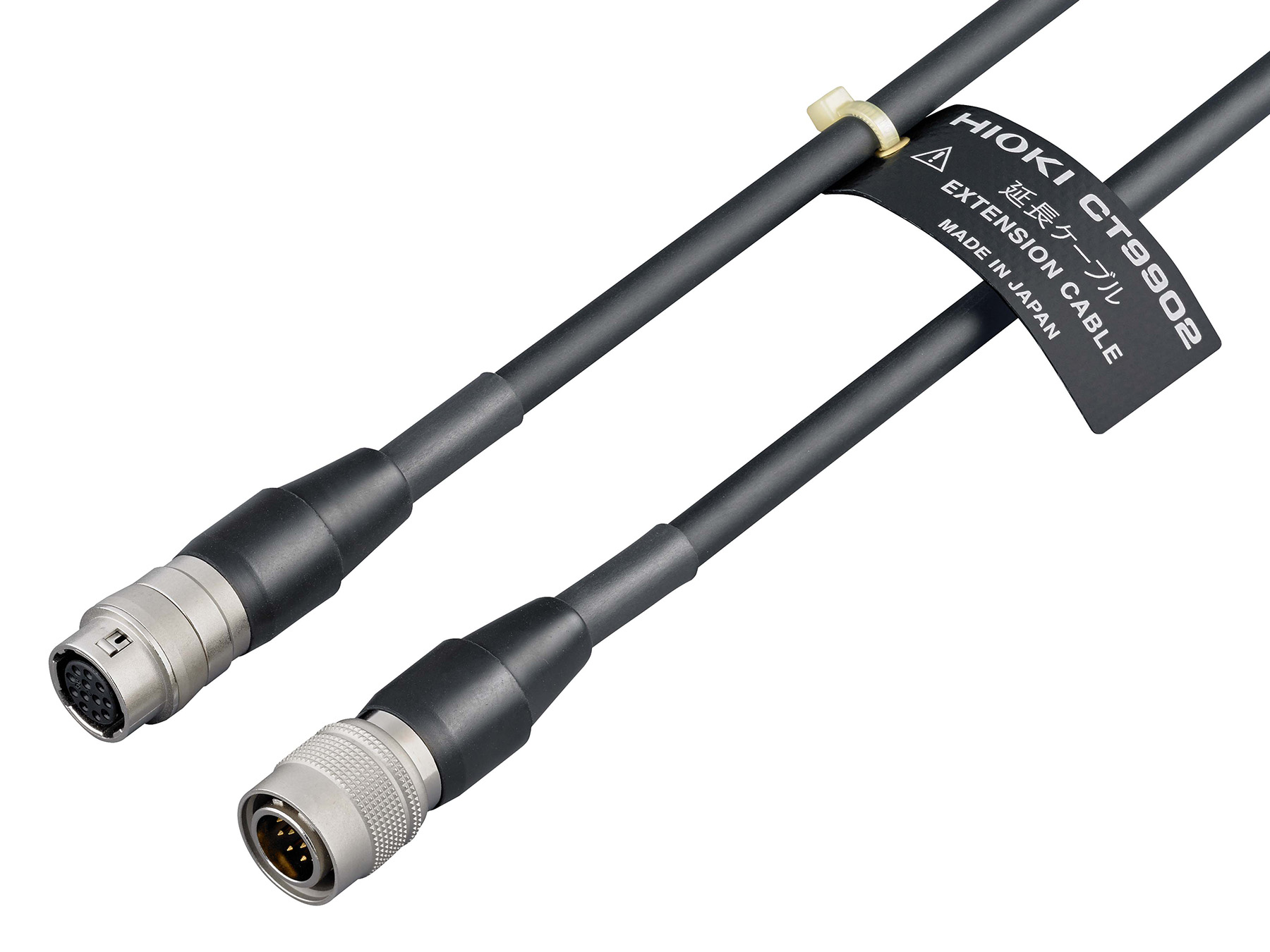

CT9902 - EXTENSION CABLE

The HIOKI CT9902 is a 5-meter extension cable designed for use with ME15W-equipped current transformers (CTs), providing additional length for versatile installations.

€228.00*

View product

CT9904

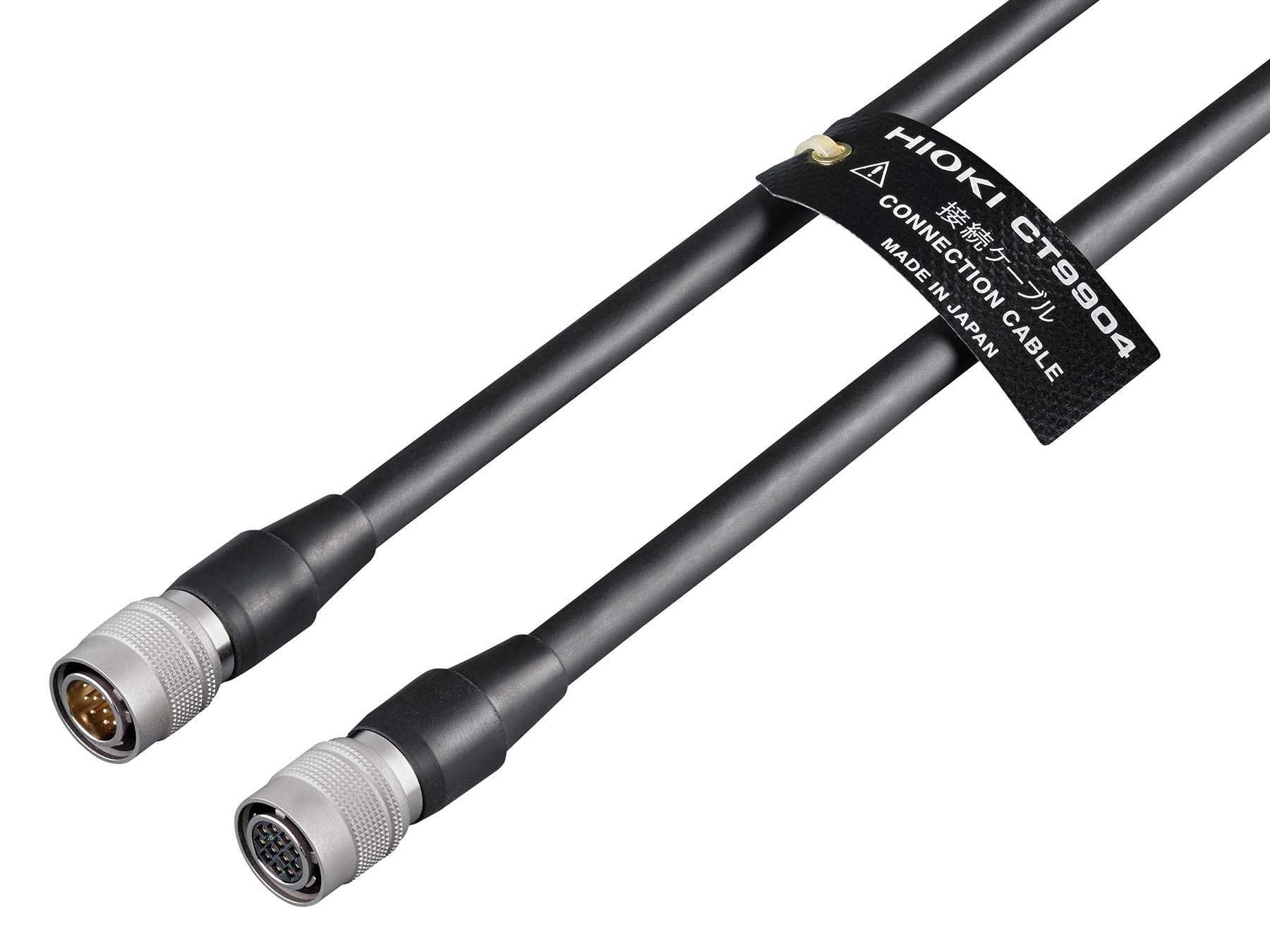

CT9904 - CONNECTION CABLE

The CT9904 connection cable is designed for reliable data transfer between Hioki sensors and measurement instruments, offering robust connections for accurate current readings. Technical Details: Length: 1 m Connectors: ME15W(m 12pin) / ME15W(w 12pin) Compatibility: Hioki current sensors

€168.00*

View product

CT9920

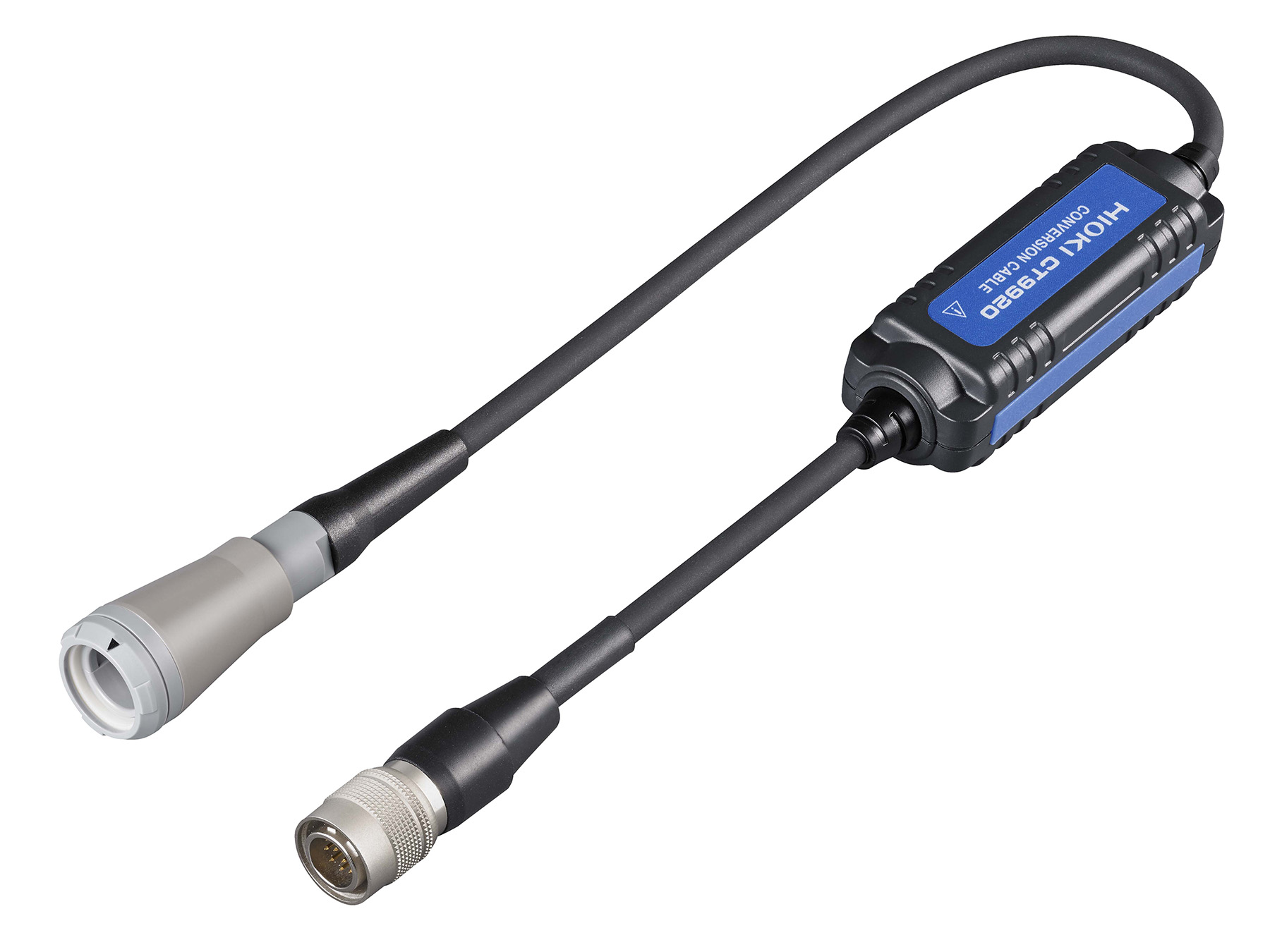

CT9920 - CONVERSION CABLE

The CT9920 conversion cable enables Hioki current sensors to interface with various data acquisition systems, ensuring consistent and accurate signal conversion. Technical Details: Length: 404 mm Connectors: PL14w / ME15W(m 12pin) Compatibility: Hioki current sensors

€228.00*

View product

L4930

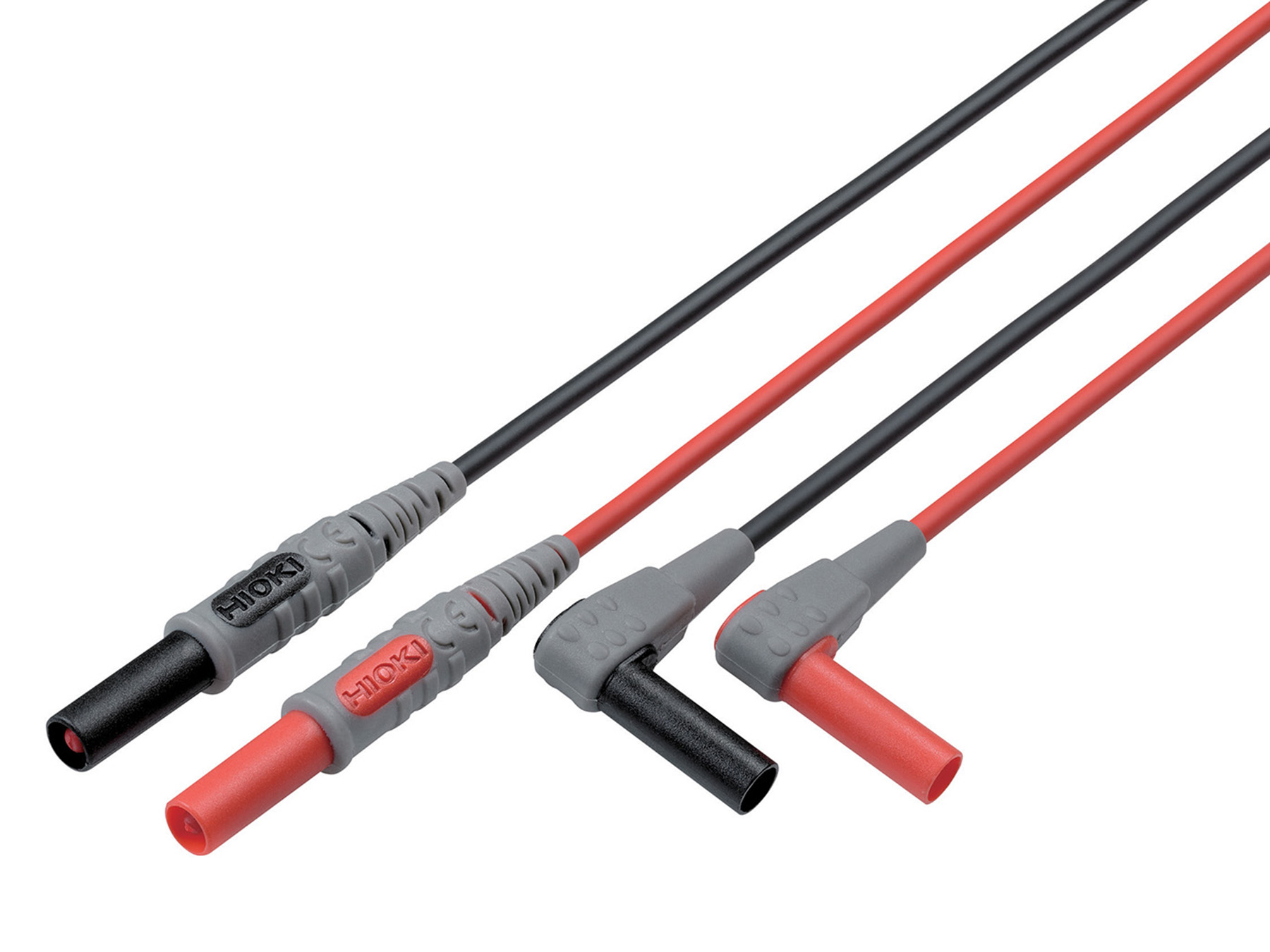

HIOKI L4930 - CONNECTION CABLE SET

High-quality 1.2 m red/black cable set for HIOKI DT4280/DT4250 multimeters – ideal for professional testing. Order now from HIOKI Europe.

€18.00*

View product

L0220-01

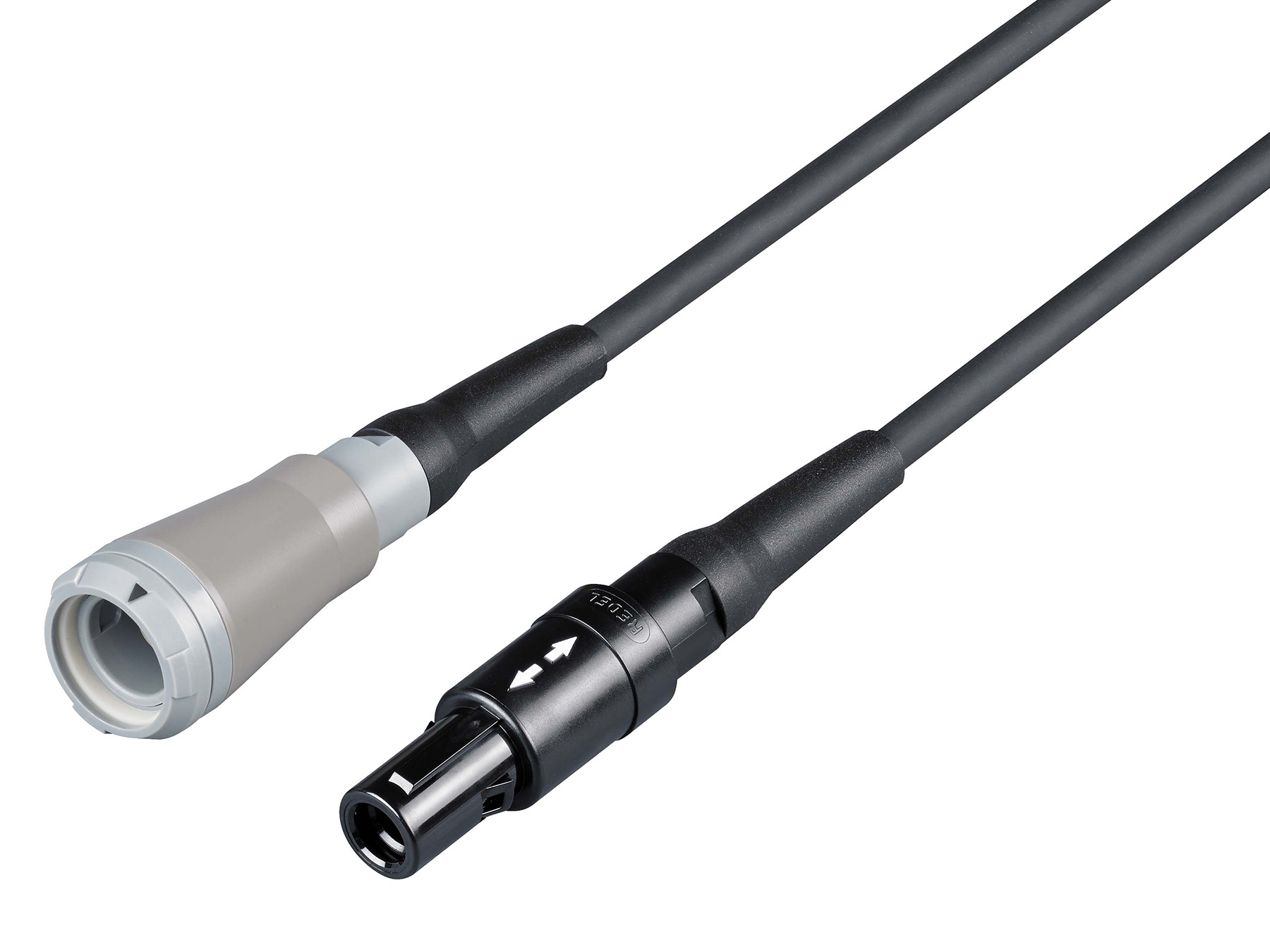

L0220-01 - Extension cable

The L0220-01 extention cable is made for extending a sensor cable connected to Hioki Display Units equipped with HIOKI connector PL14. Technical details: Length: 2m Use for: CT7631, CT7636, CT7642, CT7731, CT7736, CT7742, CM7290, CM7291 Connector type: Hioki PL14

€198.00*

View product

L0220-02

L0220-02 - Extension cable

The L0220-02 extention cable is made for extending a sensor cable connected to Hioki Display Units equipped with HIOKI connector PL14. Technical details:Length: 5m Use for: CT7631, CT7636, CT7642, CT7731, CT7736, CT7742, CM7290, CM7291 Connector type: Hioki PL14

€288.00*

View product

Choose your VRLA battery test set

HIOKI’s BT3554 battery tester series are the perfect tool for maintenance checks of UPS systems, regardless of the battery size and capacity. You can choose a BT3554 model with Bluetooth transmitter or without, including straight probes (9465-10) or L-shaped test probes fitting your requirements to test even hard-to-reach battery installations time-efficiently.

BT3554 Variants – Measuring cable, Bluetooth and Description
Model	Measuring cable	Bluetooth	Description
Model: BT3554-50	Measuring cable: without test cable	Bluetooth: Z3210 required	Description: Battery tester and the carrying case with spare parts. Test leads are required separately.
Model: BT3554-51	Measuring cable: 9465-10 (straight)	Bluetooth: Z3210 required	Description: Battery tester incl. straight test probes 9465-10 for installations with easy access. No Bluetooth transmitter included.
Model: BT3554-52	Measuring cable: L2020 (angled)	Bluetooth: Z3210 required	Description: Battery tester incl. angled test probes L2020 for installations with narrow access space. No Bluetooth transmitter included.
Model: BT3554-91	Measuring cable: 9465-10 (straight)	Bluetooth: Included	Description: Complete set with straight test probes Battery tester, straight probes 9465-10 and Bluetooth transmitter for easy efficient data reporting included.
Model: BT3554-92	Measuring cable: L2020 (angled)	Bluetooth: Included	Description: Complete set with angled test probes Battery tester, angled L2020 probes and Bluetooth transmitter for easy efficient data reporting included.
